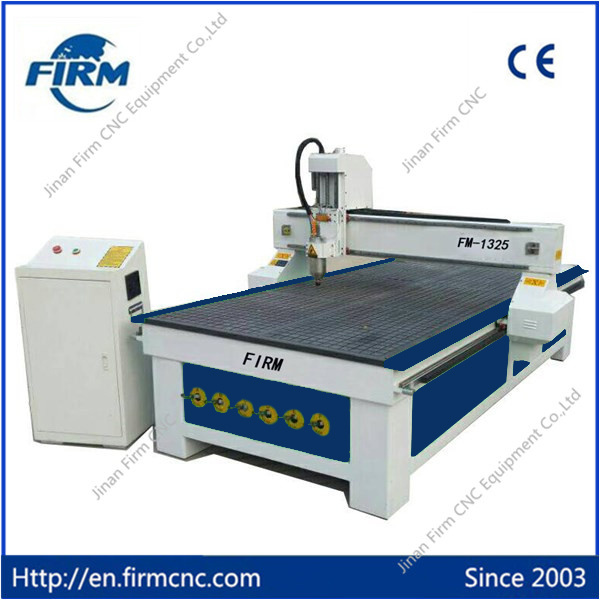

Product Specifications
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300*2500*200mm |
| Spindle Power: |
3kw Water Cooling Spindle |
| Inverter: |
3.7kw Fuling Inverter |
| Motor Driver: |
Leadshine Stepper Motor and Driver |
| Control System: |
DSP Controller |
| Screw And Rails: |
Tbi Ball Screw and Hiwin Linear |
| Transmission: |
Helical Rack and Pinion |
| Max Working Speed: |
25000mm/Minute |
| Gross Weight: |
1300kg |
| Working Voltage: |
AC380V/50/60Hz, 3phs |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
SGS |
Product Description
Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Applications:
1) Furniture: Plate, office furniture, doors, cabinets.
2) Wood products: Speakers, games cabinets, computer tables, sewing machines, musical instruments.
3) Board processing: Insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
Service:
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours.
Packing & shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Company information:
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
FAQ:
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
| Description | Parameter |
X,Y,Z working area
| 1300x2500x200mm |
| Table size (mm) | 1450×2940mm |
| Resolution | ±0.03/300mm |
| Repeatability | ±0.03mm |
| Table Structure | T-slot |
| Lathe Structure | Welding steel structure |
| X,Y structure | Rack pinion, Hiwin linear rails |
| Z structure | Ball screw, Hiwin square rails |
| Rated power | 3Kw (without spindle) |
| Max. rapid | 33000mm/min |
| Max. Working speed | 25000mm/min |
| Spindle power | 3.0kw water cooling spindle |
| Spindle speed | 0-24000RPM |
| Working mode | Stepper or servo |
| Working voltage | AC380V/50/60Hz,3Ph(Option 220V,3Ph) |
| Command code | G code |
| Operating system | DSP system (Ncstudio Syntec, Mach3) |
| Interface | USB |
| Memory | 128M |
| Tool holder | ER25 |
| X,Y working accuracy | <0.03mm |
| Software | Type3, UcancameV9, Artcam |
| Working temperature | Temperature:0 degree-45 degree
Humidity:30%-75% (No Condensation) |
| Packing size | 3300X2100X2300mm |
| Net weight | 1200KG |
| Gross weight | 1300KG |
| Optional Spare Parts | Domestic water cooling spindle |
| Double bag dust collection,vacuum pump |
| rotary |
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
