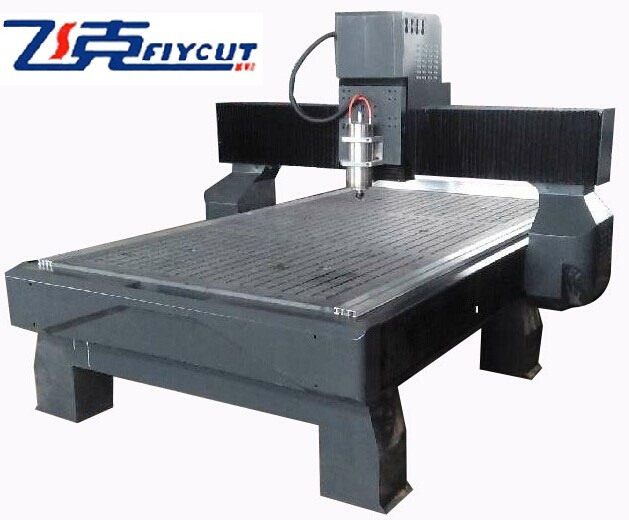

Wood Carving CNC Router Machine CNC Router 1313 Wood CNC Router Machinery

Product Specifications

Prod Model:	FCT-1313W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	CNC Engraving Machine
Usage:	Woodworking
Power:	High Power
Drive Type:	Stepper Drive
Certification:	GS, CE
Control:	CNC
Current:	AC
Condition:	New
Machine Size:	1600X1500mm

Product Description

Features:
1.       The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
2.       The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3.       The major machine body makes the stability and no shacking in high speed.
4.       XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5.       The professional mechanical design, scientific structure and generous appearance.
6.       XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7.       High quality driver motor, spindle motor, cables, inverters, etc.
8.       Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.


Application:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.

Special Configuration:
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.

Specifications:

Model	FCT-1313W
Machine Size	1600×1500mm
Working Size	1300×1300×200mm
Spindle Power	Water cooling 1500W
Spindle rotation	6000--24000rpm
Motor driver	Stepper motor driver (China servo motor and Japan servo motor is optional)
Tool diameter	3.175,4,6,12.7mm
Machine structure	Industry square tube structure
Transmission	The ballscrew or high accuracy gear rack
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Machine accuracy	<0.03/300mm
Engraving speed	8000mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	700kg

If you are not sure which machine you should choose,kindly afford the following information.Suitable machine will be recommend to you.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials (Length*Width*Thickness)?
