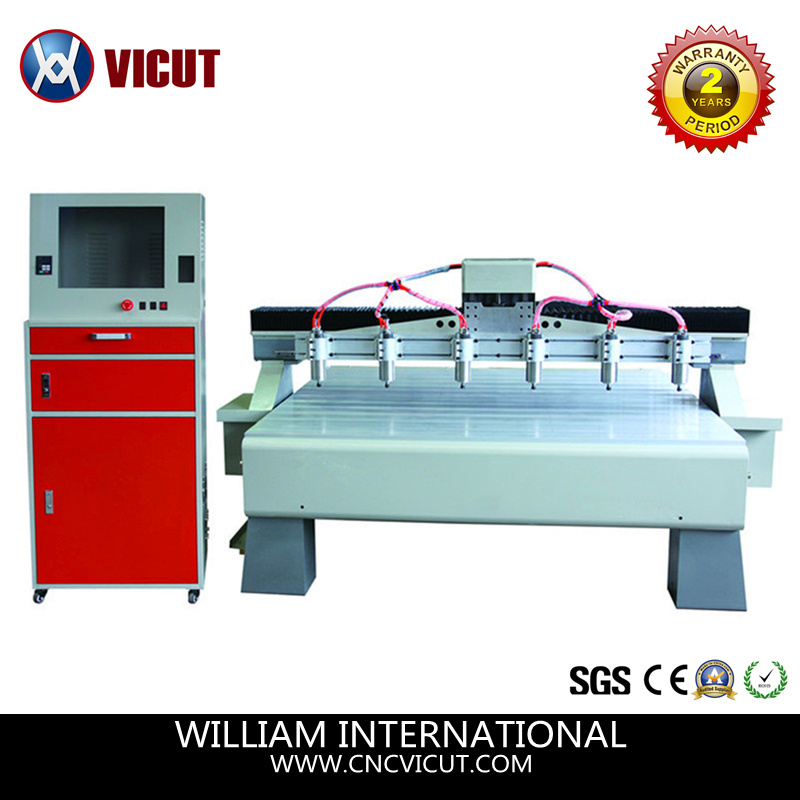

Wood Making CNC Router CNC Engraving Machine (VCT-2013W-6H)

Name: Wood Making CNC Router CNC Engraving Machine (VCT-2013W-6H)
Brand: China-Manufacturer-Directory.com
SKU: 736997755
Availability: InStock
Rating: 4.7 (122 reviews)

Supplier:	Anhui William International Imp. & Exp. Co., Ltd.
Price:	US $ 6088-18264set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	VCT-2013W-6H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Size:	2000×1300×180mm
Spindle Power:	2.2kw*6PCS
Driver:	Y Axis Big Stepper Motor. Xz Axis Servo Motor
Structure:	Cast Square Tube
Transmission:	Xy Axis Gear Rack, Z Axis High Accuracy Ball Screw
Xyz Guiding Rails:	Pmi Linear Square Rails
Max Engraving Speed:	12000mm/Min
Spindle Speed:	6000~24000rpm
Data Transmission:	Connect with PC Directly (3 Axis Original Nc Stud
Net Weight:	1000kg
Controlling Mode:	CNC
Feed Mode:	Mechanical
Spindle Layout:	Vertical
Certification:	SGS
Spindle Number:	6 Heads

Product Description

VICUT Multi-head Series CNC ROUTER
Are widely used in Antique furniture with relief carving, wood carving, furniture processing, instruments making, 3D light box making, Aluminum composite panel, funding mould decorative doors and windows processing etc. We have many choices for different size according to your needs.

Machine Details Show:
2. Water Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc. We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Series of tools are available, for example, diameter 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Ball Screw and gear rack: Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy. XY axis use high accuracy gear rack. The combination for ball screw and gear rack makes machine working more accurate and stable.
4. Linear Square Guide: CNC router Quality 25MM linear square guide with high rigidity, resist vibration and shock, with damping characteristics.
5. NC Studio Controller: PC based 3 AXIS NC Studio Controller.
6. Electric Cabinet: All the electrical components are housed and wired in a mobile, doubled-doored electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
7. Motor Driver: XZ axis use Chinese servo motor which is powerful for frequent movement, Y axis use big power stepper motor which is enough to support Y axis movement. Practical and economical!
8. Aluminum Table: We use quality aluminum alloy and can be installed transverse or vertical to facilitate different requirements.

Technical Parameters
Model	2013W-6H	2018W-6H
Working Size	2000×1300×180mm	20001800180mm
Spindle Power	2.2KW*6PCS
Driver	Y axis big stepper motor. XZ AXIS Servo Motor
Tool Diameter	4mm,6mm, 8mm,12mm
Structure	Cast Square Tube
Transmission	XY Axis gear rack, Z Axis high accuracy ball screw
XYZ Guiding Rails	PMI Linear Square Rails
Machining Accuracy	<0.03/300mm
Maxi Engraving Speed	12000mm/m
Spindle Speed	6000~24000rpm
Data Transmission	Connect with PC directly (3 axis original NC Studio controller)
Format of instructions	G code or HPGL
Voltage	AC220V/50HZ or 380V/60Hz
Net Weight	1000KG	1300KG
Packing size	2.85x1.95x1.9m	2.85x2.65x1.9m

CNC Engraving and Cutting Solutions Provider!

WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, laser and cutting plotter, having its own manufacturing base and official license for export & import business. We focus on overseas market of CNC machinery and accessories, to provide the customer with an affordable solution without sacrificing options or function.

We are very appreciated for that hundreds of dealers and end users from different countries have been our business partners. Some have cooperated with us for five years more. For these nice people, the relationship between us become more and more closed, from partners in business to real friends in life, even relatives.

Professional Team:

We have a 150 people team. More than 80 percent workers of our factory have over 5 years manufacturing experience in CNC industry. 12 experienced engineers work in R&D department. More than 20 marketing sales have excellent skills both in international trading and product technology. All the service engineers have experience in providing technology service in overseas market. We have been building a professional team, through the strengthening of internal management and external learning.

Reliable Quality:

Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, etc. Construct modern production plant, make specialized division of labor, introduce advanced technology and equipment, and realize scientific process layout and production management.

High Level Service:

We have a service engineering team with years of experience who can provide technical support, remote training and door-to-door service. Help is always just one call or email, then we can communicate\analyze and provide the suitable solution promptly. Also you can submit problems on our official website.

Location & Transportation:

Our factory is located in Hefei, Anhui province, which is the core member of the Yangtze River delta economic zone in China. Three hours by fast train from Shanghai. The Xinqiao International Airport makes our heart more near with only 40 minutes by car.

Expecting our friends to check and test equipments for your specific applications and requirements.
