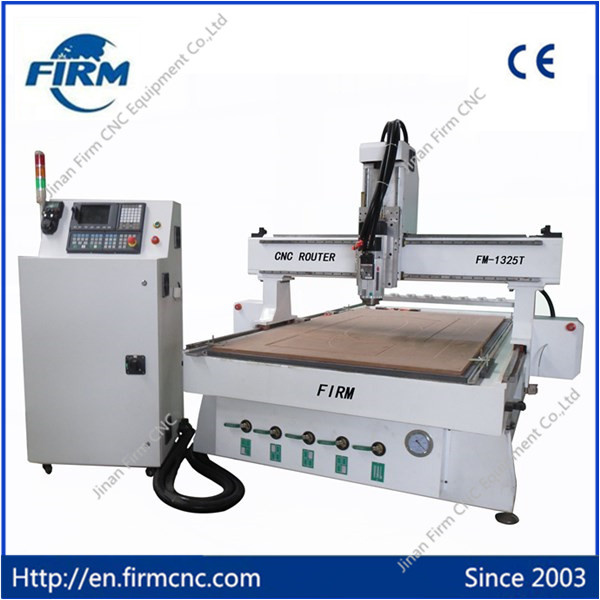

Wooden Door Window Furniture Linear Atc CNC Router

Name: Wooden Door Window Furniture Linear Atc CNC Router
Brand: china-manufacturer-directory.com
SKU: 685583092
Availability: InStock
Rating: 4.5 (121 reviews)

Supplier:	Jinan Firm CNC Equipment Co., Ltd.
Price:	US $ 10000-25000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FM-1325ATC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size:	1540*2640
Working Size:	1300×2500×150mm
Spindle Power:	9kw Italy Hsd Spindle
Spindle Rotate:	6000~18000rpm
Xyz Rails:	Imported Square Rails
Dust-Proof System:	Xyz High Quality Dust Cover
Controlling Mode:	CNC
Feed Mode:	Manual
Spindle Number:	Single-Spindle
Spindle Layout:	Spindle Over
Certification:	SGS

Product Description

Wooden Door Window Furniture Linear atc cnc router

(****For atc cnc router,we offer you two years warranty****)

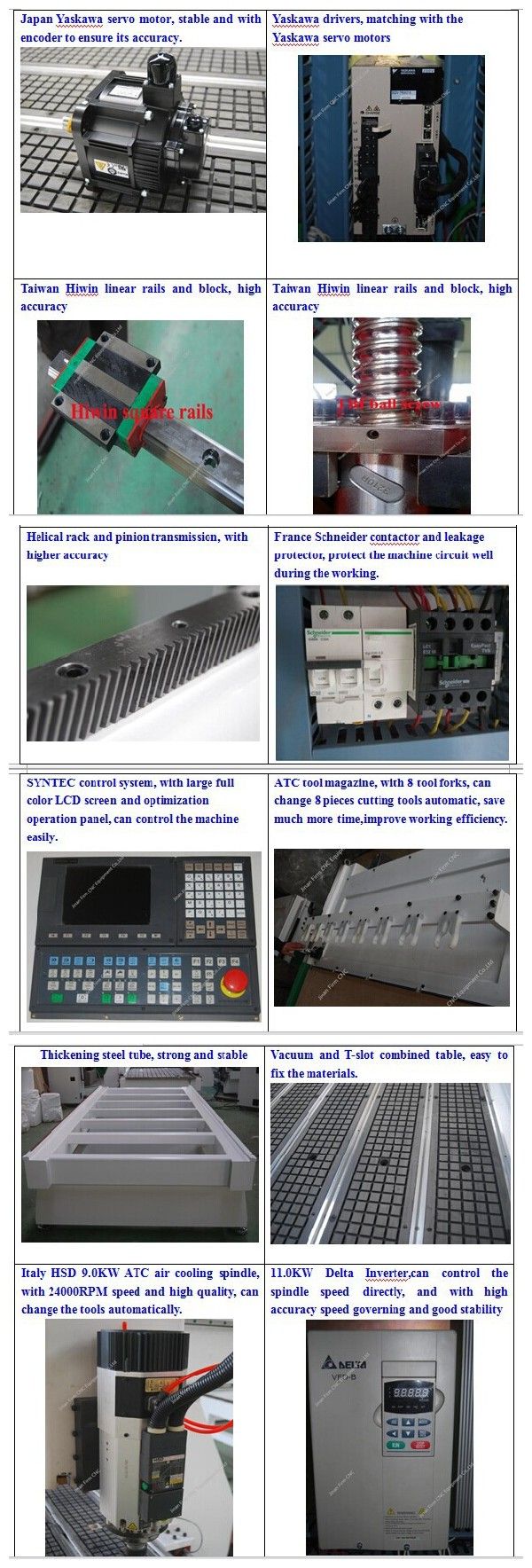

Features

1. Adopt Italy HSD air cooling 9KW ATC spindle, high accuracy, big cutting power, long life span.
2. Japanese servo motor and driver, ensure working stability, high speed and low noise.
3. Intelligent linear ATC System syntec , change tools fast and easily.
4. The lathe is founded by industrial pipe welding, box-type structure to ensure the high
Stability.
5. Use special extra heavy size square tubes for holding rails and racks, use precise planer milling machine to ensure parallelism and squareness.
6. The key component parts all adopts casting tempering finish machining technology, ensures stiffness and accuracy.
7. XYZ all apply imported screw, high precision gear frame and linear square guide ,ensure the high accuracy .
8. The professional mechanical design, scientific structure and generous appearance.
9. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
10. High quality driver motors, spindle motors, cables, inverters, etc.
11. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Applications:

Wood 3D carving, making solid wood door, art and crafts windows, making model plane, making model boat,etc

Parts

Samples

Packaging & Shipping

atc cnc router

Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Service

atc cnc router

# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours

Company Information

atc cnc router

Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.

Welcome to contact us if you want high quality machine with best price

Tina

Jinan Firm CNC Equipment Co., Ltd

Add: Jingliu road, Jinan City Shandong province, China

Tel: 0086-531- 69986330 Mobile: +8613245301243

Skype number:firmcnc2

Website: http://en.firmcnc.com

Model	FM-1325W-ATC
Table Size	1540× 2640
Working Size	1300× 2500× 150mm
Spindle Power	9KW Italy HSD Spindle
ATC Tools	6 --10 PCS TOOLS
Spindle Rotate	6000~18000rpm
Motor Driver	Imported Servo Motor and Driver
Tool Diameter	Φ 3.175, Φ 4, Φ 6, Φ 12.7mm
MachineStructure	Industry Square Tube Structure
Transmission	XY Hign Accuracy Gear Rack, Z ball Screw
XYZ Rails	Imported Square Rails
Dust-proof System	XYZ High Quality Dust Cover
Mechanical Accuracy	< 0.03/300mm
Engraving Speed	12000mm/Minute
Table	Vacuum Inhaling Table
Vacuum Pump	water cooling pump
Data Transmission	PC Connect or USB
Support Format	HPGL G code or HPGL
Working Voltage	AC220V/50HZ OR 380V/50HZ
Net Weight	1200kg
