Woodworking CNC Processing Wood Door Engraving CNC Router Machine

Product Specifications

Prod Model:	FM1325
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Size(Mm):	Machine Size
Engraving Area:	1300*2500*200mm
Controller:	DSP Controller
Spindle:	Air Cooling Spindle
Drive Motor:	Stepper
Controlling Mode:	CNC
Feed Mode:	Manual
Spindle Layout:	Spindle Over
Certification:	ISO
Spindle Number:	Three Spindles
Color:	Blue and White

Product Description

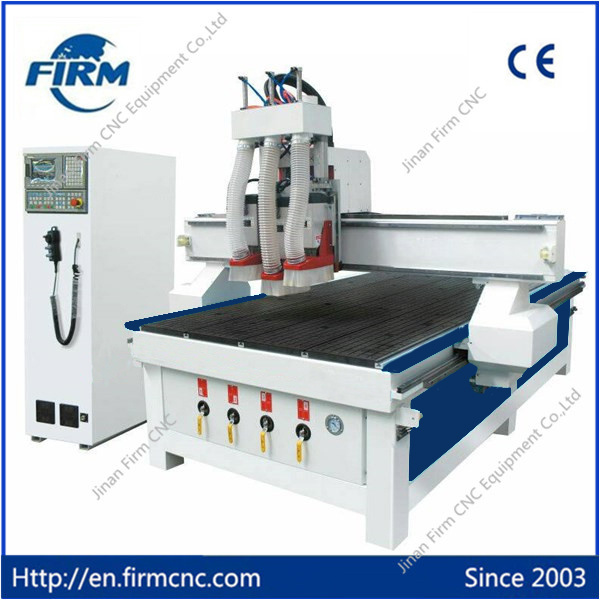

Woodworking CNC processing Wood Door Engraving CNC Router Machine

This machine is from Jinan Firm CNC Equipment Co., Ltd. It is a type of woodworking machine, which is equipped with aluminium profile table. It has the T-solt, using the material holders to fasten the mould on the table. There are many occasions it can work: Cutting or engraving on the MDF, soild wooden door, computer desk, cupboard door and window, bedside cabinet, furniture decoration, , wood board, acrylic and so on.
As for the spindle, we have the 3.0KW Chinese water cooling spindle and the HSD air cooling spindle; For the motor, we have leadshine stepper motor and Servo motor, you can choose from them as you requirements. The machine adopt the Fuling inverter, which can ensure the high speed and high precision, and can realize milling with low noise. About the rail, it adopt the world famous rail and guide manufacturer Taiwan Hiwin squre rails, self-lubricating sliding block, no need of human, very convenience. The XY axises adopt gear transmission, Z axis adopt Taiwan ball screw transmission.
We also have vacuum table wood cnc router, 3 pieces of head wood cnc router, ...If any of them interest you, please tell me rapidly.
Forget to tell you, we can product the machine as you request if you could give me the working size, the colour about this machine. Looking forward to your inquiry! !


Features:

1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Applications:
It is widely used in the Small-scale woodworking industry, such as solid wood door engraving, MDF paint door carving, furniture processing.
In artwork industry, it can process wooden craft, musical instrument.
It can also used in the decorative doors and windows processing etc.

Number	Description	Parameter
1	X,Y,Z Working Area	1300mmx2500mmx200mm
2	Table Size	1450mmx2940mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot Table)
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	3.0Kw (Without spindle)
10	Max. Rapid Travel Rate	40000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	4.5 KW*3
13	Spindle Speed	0-18000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G Code
17	Operating System	Ncstudio System (options: DSP/Mach3 PC Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER32
21	X,Y Resolution	<0.03mm
22	Software Compatibility	Type3 Software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3750mmX2250mmX2100mm
26	N.W.	1750KG
27	G.W.	2190KG
28	Optional Parts	Columbo Air Cooling Spindle
		Syntec Control System
		Dust Collector
		Vacuum Pump
		Rotary System
		Mist-cooling System
		Delta / Panasonic Servo Motors
