Product Specifications
| Prod Model: |
FM1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Power: |
3.0kw Water Cooling Spindle |
| Motor Driver: |
Stepper Motor (Chinese Servo Motor or Imported Ser |
| Machine Structure: |
Industry Square Tube Structure |
| X,Y,Z Rail: |
Imported Square Rail |
| Mechanical Accuracy: |
<0.03/300mm |
| Data Transmission: |
PC Connect |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
SGS |
Product Description

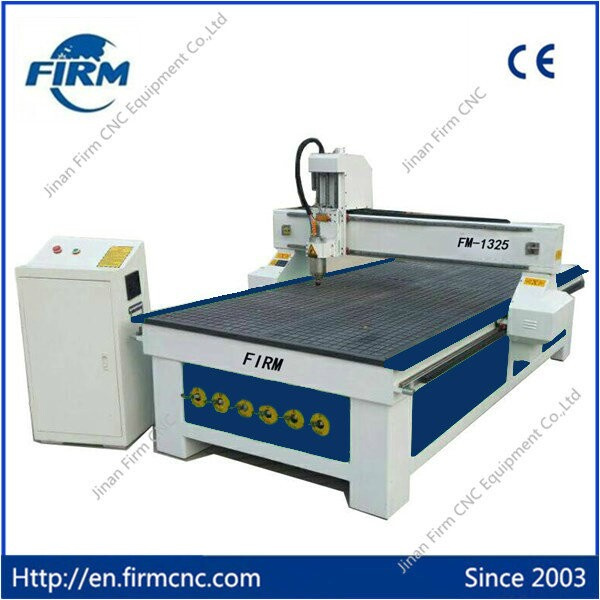

Woodworking CNC Router Machine Wood Engraving carving Tool
This machine is Firm company's vacuum table machine. It working size is: 1300x2500x200mm, vacuum table, using the vacuum pump to absorb the mould on the table, it is convenience for our users is don't need the materials holders, put the mould on the table, open the vacuum pump, then can working, but it has one point that not absorb the irregular, out of faltness mould, 3D embossment. This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.
But aluminium profile wood working machine can work on the 3D embossment and the irregular, out of faltness mould.
So welcome to contact us when you need wood working machines on the wooden, MDF doors or the furniture...
Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor...So don't hesitate contact us!
Features
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
9. The advanced professional control system compatible with many instructions formats, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
10. We can produce the machine as your requirements.
| Brand | Firm |
| Model | F-1325A |
Machine Size
(mm)(W*L*thickness) | 1900*3100*1800 |
| Table size(mm) | 1600*3100 |
Engraving area
(W*L*thickness)(mm) |
1300*2500*200 |
| Working Form | Full-automatic |
| Spindle power | 3.0KW water cooling spindle |
| Spindle Rotate(rpm) | 6000~24000 |
| Motor Driver | Stepper motor (Chinese servo motor or imported servo motor is optional) |
| Tool Diameter(mm) | Ø3.175,Ø4,Ø6, Ø12.7mm |
| Machine Structure | Industry square tube structure |
| Transmission System | Imported ball screw or high accuracy gear rack |
| X,Y,Z Rail | Imported square rail |
| Mechanical Accuracy | <0.03/300mm |
| Engraving Speed(mm/min) | 8000~12000mm/min |
| Feeding Speed | manual |
| Data Transmission | PC connect |
| Support Format | G code or HPGL |
| Working Voltage | AC220V/50Hz or 380V/50Hz |
| Support Format | G Code or HPGL |
| Rangeof Application | Woodworkingrelief engrave ,Cutting , Hollow |
| Machine Net Weight | 1200Kg |
Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China
Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
