Product Specifications
| Prod Model: |
HJD-ML9320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic: |
Automatic |
| Original Place: |
Shunde Foshan, China |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Controlling Mode: |
Artificial |
| Layout: |
Horizontal |
| Certification: |
CE |
| Type: |
Cutting Saw |
| Color: |
Red and Siliver |
Product Description

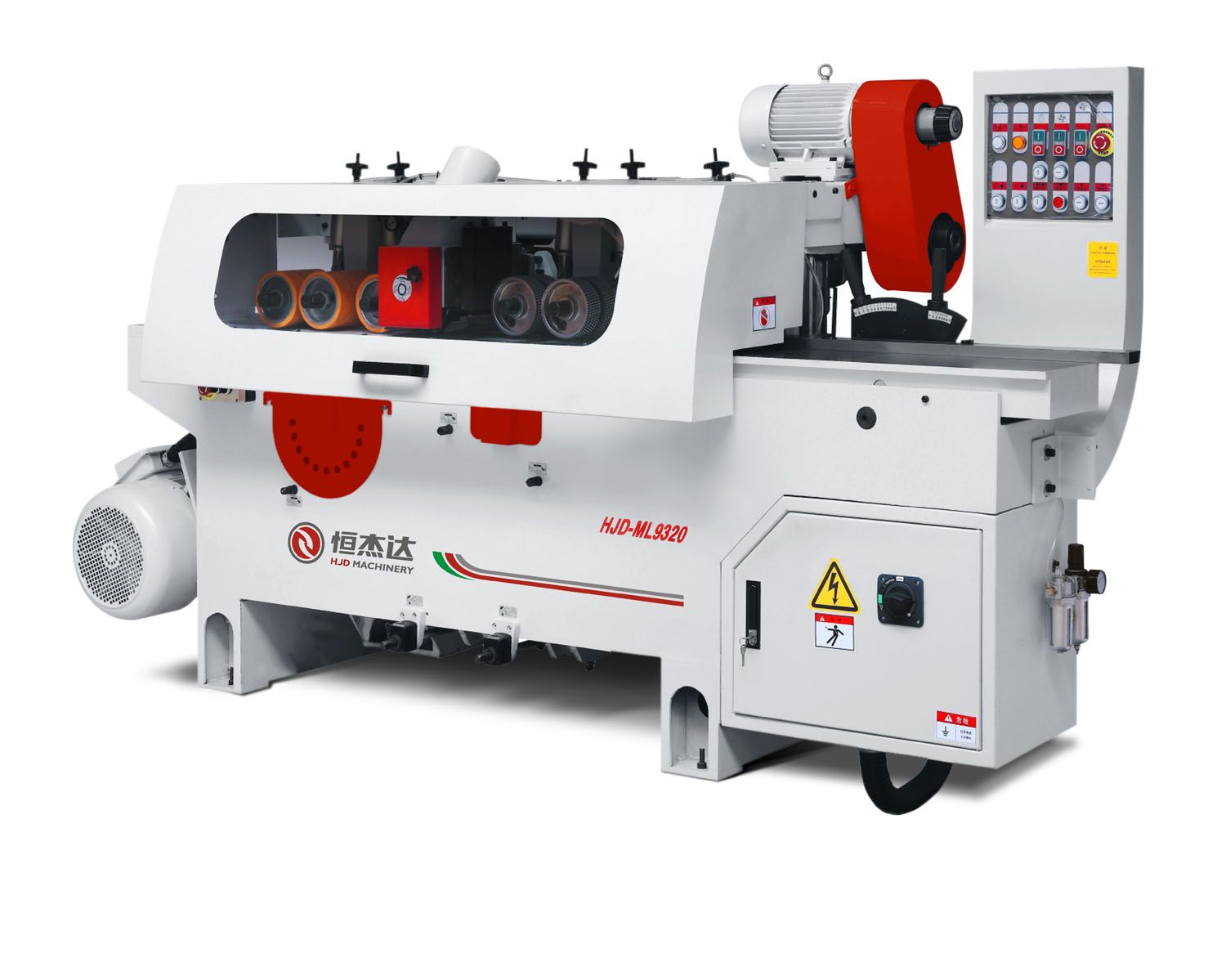

Working width 200mm Multi-Rip Saw (HJD-ML9320)Wood Working Tool Machinery1. This machine is our own design, manufacturing and proprietary products to industrial machinery. (Already have four patents).
2. It has the function of rip cutting the logs or wood boards into wood chips or wood slat. It is a machine with full automatic feeding and high-precision cutting. The saw cutting size can be adjusted according to personal needs and can saw cutting into square timbers, barwood or plates at a time according to the adjusted size.
3. It has a high degree of automation, stable performance and high efficiency features: This machine tool efficiency is 8 times higher than the ordinary band sawing machine. If used the ordinary band sawing machine, it needs 12 operators, but using this machine tool only needs 2 operators, and can reduce employment of 10 people and save manpower resources greatly.
4. It has high precision, high material productivity, material saving and energy saving features.

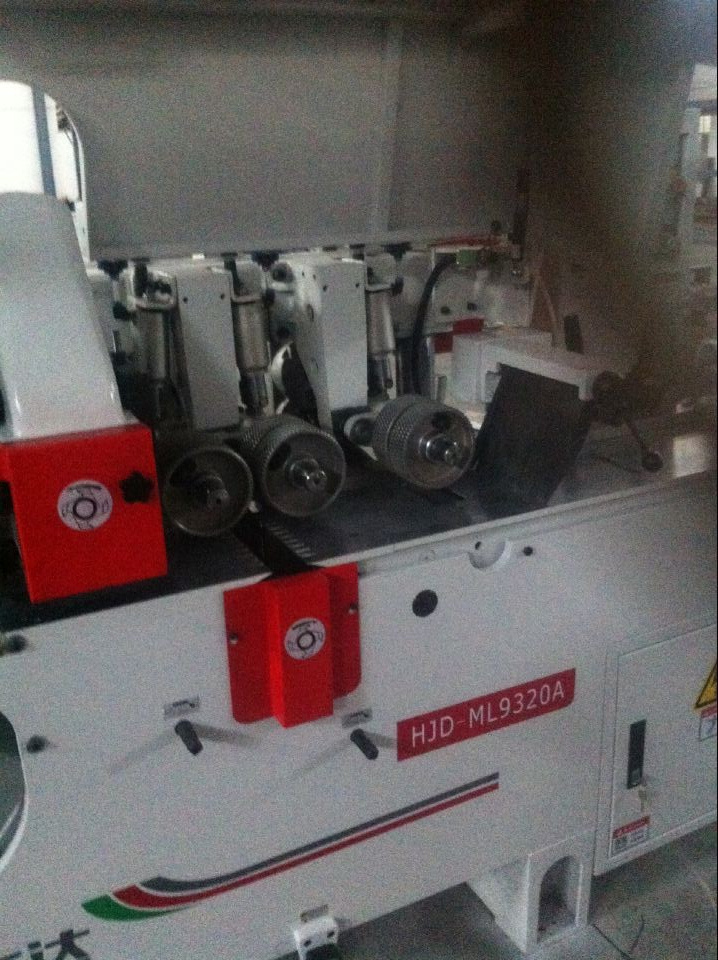

5. The left side of the machine tool is installed with a fine-tuning control switch, so the operator can fine tune the upper and bottom saw blades under the visual situation.
6. It is reasonable in structure, safe, reliable, practical and environmental friendly, has beautiful shape and with high efficiency energy saving feature. It is very suitable for the wood processing of blockboard, finger joint laminated board, plates, square stock, etc. It's the construction, furniture, wood processing industries' most ideal equipment
|
max.working width |
200mm |
|
max.working thickness |
75mm |
|
feeding speed |
4-18m/min |
|
top spindle diameter |
40mm |
|
top spindle rotation rate |
6000r/min |
|
top spindle movement |
20mm |
|
top spindle motor power |
5.5kw |
|
bottom spindle diameter |
40mm |
|
bottom spindle rotation |
6000r/min |
|
bottom spindle motor power |
4kw |
|
cutting spindle diameter |
50mm |
|
cutting spindle rotation rate |
4000r/min |
|
max saw blade diameter |
300mm |
|
spindle motor power |
22kw |
|
spindle elevatubg motor power |
0.37kw |
|
feeding motor power |
2.2kw |
|
elevating motor power |
0.37kw |
|
total power |
34.4kw |
|
air pressure |
0.6MPa |
|
dimesion |
3070×1230×1540mm |
Foshan City Shunde District Heng Jie Da Machinery Manufacturing Co., Ltd. is located in Beijiao Town, Shunde District, Foshan City, Guangdong Province, adjacent to Lunjiao Town which is known as "China Woodworking Machinery Town". It is a high-tech enterprise specializing in production of woodworking machinery and has many senior engineers who have been engaged in R&D of woodworking machinery for several decades. This factory covers 150000 Square meters and with over 10 years rich experience in this woodworking machinery line. The equipment comes from Taiwan, Germany and Italy.
In the tenet of "Develop by Credit, Survive by Quality", the company makes constant improvement on parts and guarantees that the accuracy of every working procedure is in the best state by right of its precision machining equipment, sound detection equipment and solid technical power. The key parts are imported from Europe, America, Japan and Taiwan, which ensure the high precision of the whole machine, and make a guarantee for international top quality and cheap price.
With the aim of manufacturing internationally first-class wood working machinery by advanced technology, The company has passed the ISO9001: 2008 international quality system certification, and superb technical woodworking machinery manufacturing world-class goal. The company's products have obtained European CE certification, the company's products are sold to the East, Scandinavia and South America. Moreover, in the corporate philosophy of "Quality First, Service Supreme", it sincerely provides top-quality products and perfect after-sales services for customers. Welcome to contact us for common splendid future!
