Zhongshan Chuangyuan Power Equipment Co., Ltd. >> Wp4 & Wp6 Series 40-120kw Marine Generator, Weichai

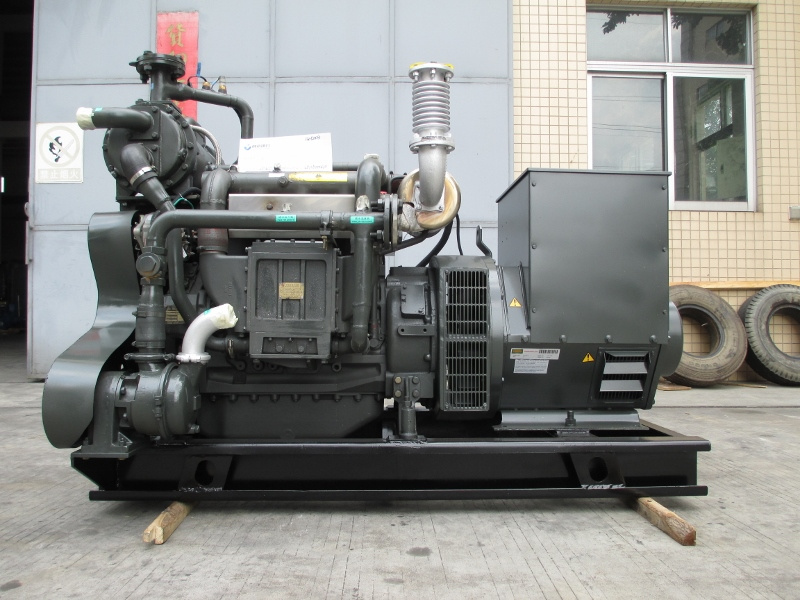

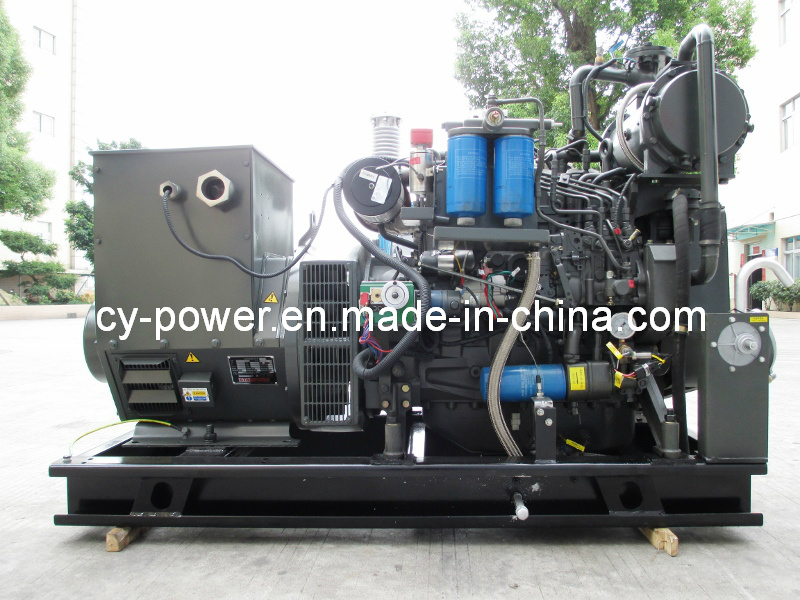

Wp4 & Wp6 Series 40-120kw Marine Generator, Weichai

Name: Wp4 & Wp6 Series 40-120kw Marine Generator, Weichai
Brand: china-manufacturer-directory.com
SKU: 724615505
Availability: InStock
Rating: 4.8 (118 reviews)

Supplier:	Zhongshan Chuangyuan Power Equipment Co., Ltd.
Price:	US $ 12000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	CCFJ65J
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	178011301330mm
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Self-Starting Diesel Generator
Output Type:	AC Three Phase
Landuse Type Of Unit:	Marine

Product Description

Genset

Model: CCFJ65J
Brand: CY Power
Rated power: 65 KW / 81.3 kVA
Rated speed: 1500 r/min
Connecting method: 3 phase & 4 wire
Rated voltage: 415V
Rated current: 113.1A
Power factor: 0.8LAG
Dimension (L×B×H): 1780 * 1130 * 1330mm
Net weight: 1150 KG

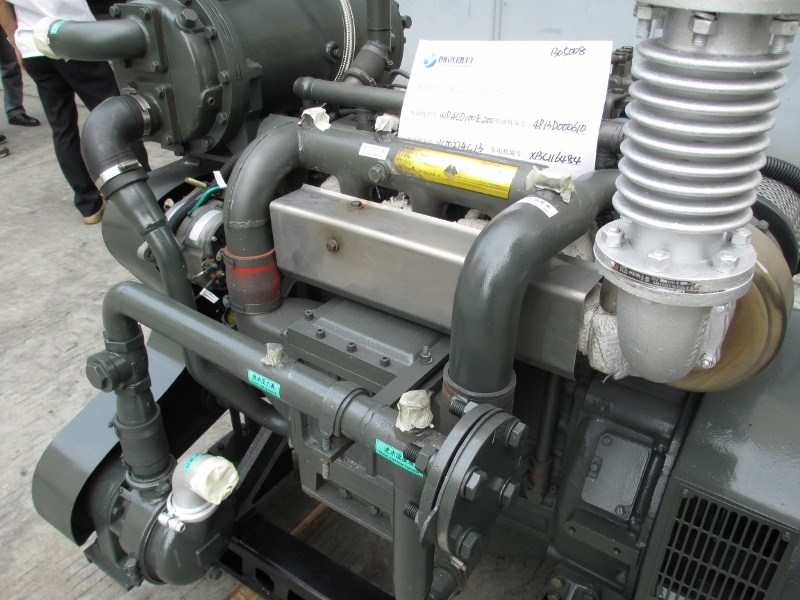

Diesel engine

Model: WP4CD100E200 (4 stroke, Turbocharged & Intercooled, Cooling by Heat Exchanger)
Brand: WEICHAI Deutz
Rated power: 90 KW
Rated speed: 1500 r/min

Generator

Model: UCM 274C
Brand: Stamford
Insulation: Class H
Protection Level: IP23

Model	L	W	H
CCFJ40	1760	820	1200
CCFJ50	1760	820	1200
CCFJ65	1760	820	1200
CCFJ80	1760	820	1200
CCFJ100	2210	880	1200
CCFJ120	2210	880	1200
UNIT :mm

Genset Model	Engine Model	Rated Power (kW)	Fuel Consumption at Rated Power (L/hr)	Genset Rated & Standby Output (k W / kVA)	Genset Frequency (Hz)	Genset Rated Voltage (V) & Current (A)	Genset Net Weight (KG)
CCFJ40	WP4CD66E200	60	10.3	40/50 & 44/55	50	400 &74	1030
CCFJ50	WP4CD66E200	60	12.9	50/62&55/69	50	400 &90	1010
CCFJ65	WP4CD100E200	90	16.8	65/81 & 71/89	50	400 &117	1100
CCFJ80	WP4CD100E200	90	20.6	80/100& 88/110	50	400 &144	1150
CCFJ100	WP6CD132E200	120	25.8	100/125 & 110/137	50	400 &173	1380
CCFJ120	WP6CD152E200	138	31.0	120/150 & 132/165	50	400 &217	1400

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
