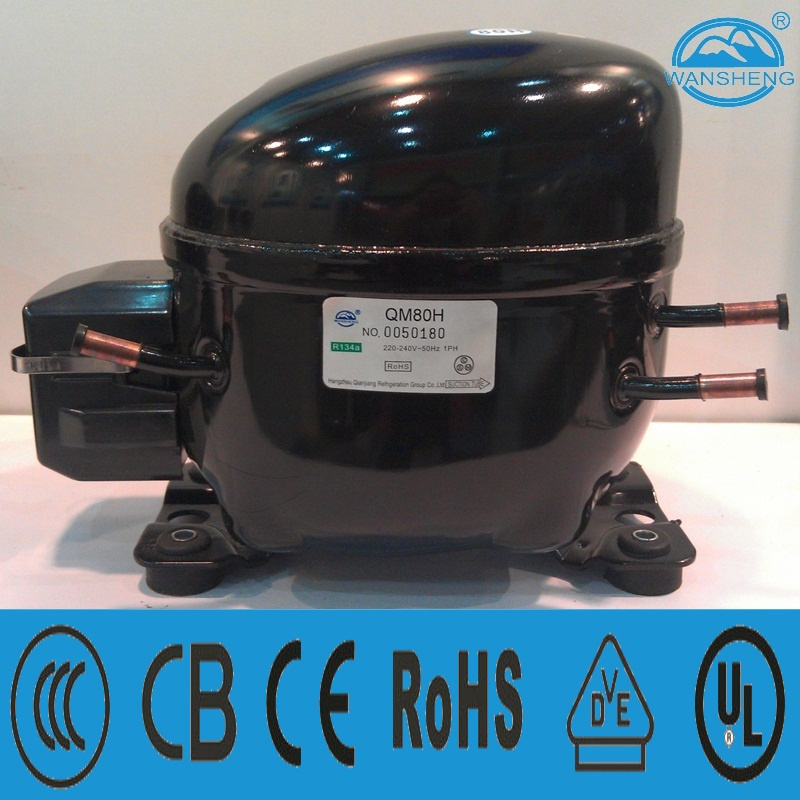

Wq Series Qm80h R134A Piston Refrigeration Compressor

Product Specifications

Prod Model:	QM80H-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Reciprocating
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Copper
Piston Type:	Closed
Lubrication Style:	Lubricated
Application:	High Back Pressure Type
Mute:	Not Mute

Product Description

Motor type is RSIR

Use R134a refrigerant

R134a is Qianjiang injection compressor refrigeration approved for lipid oil, are not allowed to randomly pour or add

R134a refrigerant system should strictly control the moisture, impurities, paraffin wax, such as silicone oil, and the content of chloride ion.

Small size

High efficiency & reliability

Low sound & vibration

Voltage application from 220 to 240V

Frequency only for 50HZ

Cooling Type is F2-fan diameter 200mm, 3.0m/s air cooling of wind velocity

Qianjiang Compressor Company LTD produce and research and develop refrigeration compressors that becomes largest manufacturer and the trading company of medium-large size refrigerator QM80H

The company's scale and strength has been one of the top three in China

MBP/HBP

Starting device is starting relay

High cooling capacity under the different evap. Temp, details as the separately table below

Application in medium-large size commercial refrigerator, freezer, cabinet, display cabinet, island showcase, etc.

R134a hermetic piston refrigerator compressor QM80H especially suit for medium-large size refrigerator

QM80H has passed CCC/CE certification

WANSHENG Refrigeration Compressor

Test Conditions

H/MBP

Subcooling Temp.: 46.1°C

Evap. Temp.: 7.2°C

Cond. Temp.: 54.4°C

Amb. Temp.: 32.2°C

Suction Temp.: 35°C

Model

Power Supply (V/Hz)

Refrigerant

(-10°C) Cooling Capacity (W)

(-5°C) Cooling Capacity (W)

(0°C) Cooling Capacity (W)

(7.2°C) Cooling Capacity (W)

(7.2°C)Input Power(W)

(7.2°C ) COP Power Efficiency COP (W/W)

Motor Type

Starting Device

Starting Capacitor (μF)

Running Capacitor (μF)

Cooling Type

Packing (Pcs/Pallet)

1×20'FCL (PCS)

Certification

QM80H

220~240V/50Hz

R134a

330

416

513

680

323

2.1

RSIR

Starting Relay

/

/

F2

80

1600

CCC/CE
