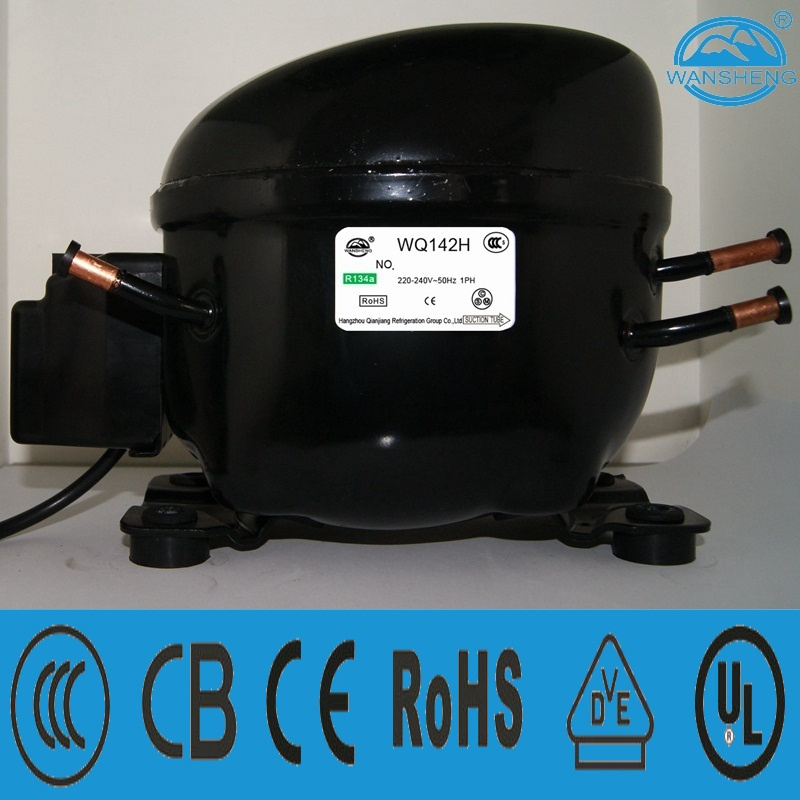

Wq142h R134A Piston Fridge Compressor

Product Specifications

Prod Model:	WQ142H-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	Low Noise
Material:	Copper
Drive Mode:	Electric
Configuration:	Stationary
Power Source:	AC Power
Type:	Piston
Lubrication Style:	Lubricated
Piston Type:	Closed
Application:	Low Back Pressure Type
Mute:	Not Mute

Product Description

1. Low noise

2. High efficiency

3. Good start-up performance

4. COP 1.35

5. Uses R134a refrigerant

6. Don't keep the R134a compressor connect pipe open too long better, no more than 10 minutes

7. R134a refrigerant system should be used in line with the dry filter

8. R134a refrigerant system should strictly control the moisture, impurities, paraffin wax, such as silicone oil, and the content of chloride ion

9. Motor type is CSIR

10. WQ142H has passed CCC/CE certificate

11. Low back pressure

12. The compressor WQ142H application in refrigerators, freezers, water dispensers and more

13. WQ series WQ142H voltage application from 220 to 240V

14. Starting device is starting relay

15. Frequency only for 50Hz

16. Low vibration

R134a WANSHENG  Low Back Pressure (LBP) Compressor
WANSHENG  Low Back Pressure (LBP) Compressor				Test Conditions		LBP ASHRAE			Subcooling Temp.: 32.2°C
						Evap. Temp.: -23.3°C			Cond. Temp.: 54.4°C
						Amb. Temp.: 32.2°C			Suction Temp.: 32.2°C
Model	Power Supply (V/Hz)	Displacement (cm³)	Rated Power   (W)	Nominal Power (HP)	Cooling Capacity (W)	COP Power Efficiency COP (W/W)	Motor Type	Starting Device	Starting Capacitor (μF)	Running Capacitor (μF)	Cooling Type
WQ142H (WQ)	220-240V~50Hz	14.2	267	1/3	360	1.35	CSIR	Starting Relay	80	/	F
