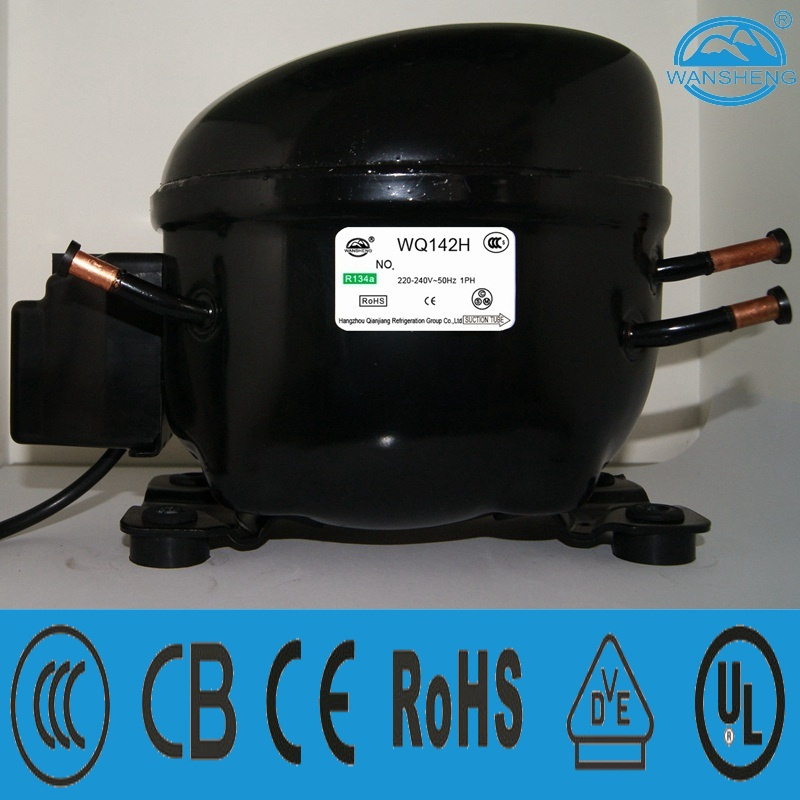

Wq142h Wansheng Refrigerator R134A Compressor

Product Specifications

Prod Model:	WQ142H-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Status:	New
Type:	Piston
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Copper
Piston Type:	Closed
Lubrication Style:	Lubricated

Product Description

R134a WANSHENG  Low Back Pressure (LBP) Compressor
WANSHENG  Low Back Pressure (LBP) Compressor				Test Conditions		LBP ASHRAE			Subcooling Temp.: 32.2°C
						Evap. Temp.: -23.3°C			Cond. Temp.: 54.4°C
						Amb. Temp.: 32.2°C			Suction Temp.: 32.2°C
Model	Power Supply (V/Hz)	Displacement  (cm³)	Rated Power   (W)	Nominal Power (HP)	Cooling Capacity (W)	COP Power Efficiency COP (W/W)	Motor Type	Starting Device	Starting Capacitor (μF)	Running Capacitor (μF)	Cooling Type
WQ142H (WQ)	220-240V~50Hz	14.2	267	1/3	360	1.35	CSIR	Starting Relay	80	/	F

1. High efficiency

2. Good start-up performance

3. COP 1.35

4. Uses R134a refrigerant

5. Don't keep the R134a compressor connect pipe open too long better, no more than 10 minutes

6. R134a refrigerant system should be used in line with the dry filter

7. R134a refrigerant system should strictly control the moisture, impurities, paraffin wax, such as silicone oil, and the content of chloride ion

8. Motor type is CSIR

9. WQ142H has passed CCC/CE certificate

10. Low back pressure

11. The compressor WQ142H application in refrigerators, freezers, water dispensers and more

12. WQ series WQ142H voltage application from 220 to 240V

13. Starting device is starting relay

14. Frequency only for 50Hz

15. Low vibration

16. Low noise
