Product Specifications
| Prod Model: |
WS-CMC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedance: |
67~2200 Ohm |
| Size: |
0805/1206 |
| Rated Current: |
0.22A~0.4A(Max) |
| Dcr: |
0.25~1.2 Ohm |
| Material: |
RoHS |
| Package: |
SMD |
| Lead Time: |
Fast |
| Structure: |
Inductive Choke |
| Type: |
Filters Inductor |
Product Description

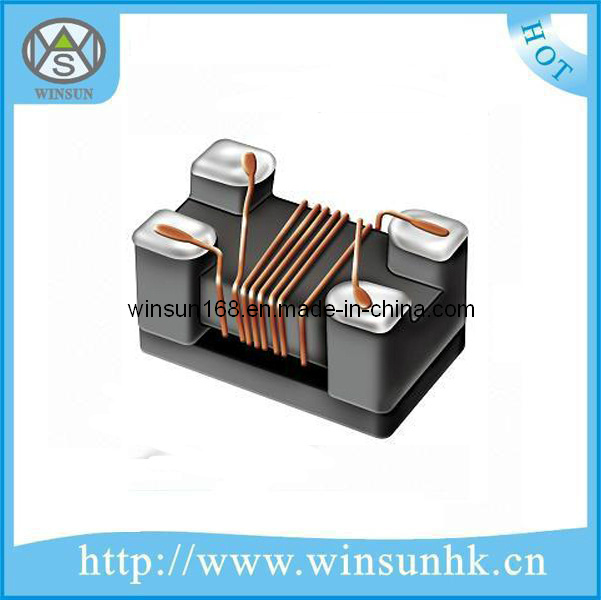

WS-CMC SERIES WIRE WOUND CHIP COMMON MODE FILTERS INDUCTOR
FEATURES:
. Minature size, suitable for SMT;
. Prevention of common mode noise at high frequency;
. With large coupling coefficient little impact on
high-speed differential signal
. 67~2200Ω are optional for different noise level
and signal frequency
APPLICATIONS:
. USB lines of PC,peripheral equipments;
. LVDS lines of note PC,LCD;
. USB lines of small digital AV equipment,etc.
SPECIFICATION:
Size: 0805~1206
Rated Current : 220~400mA(Max)
DCR : 0.25~1.2 Ω (Max)
Impedance : 67~2200 Ω
IR: 10M Ω
Operating temperature range :40 to +85°C
Storage temperature range: 10 to +40°C
DIMENSIONS : (unit: mm)
ELECTRICAL CHARACTERISTICS:
(WS-CMC Series)
