Product Specifications
| Prod Model: |
WS80YV-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |

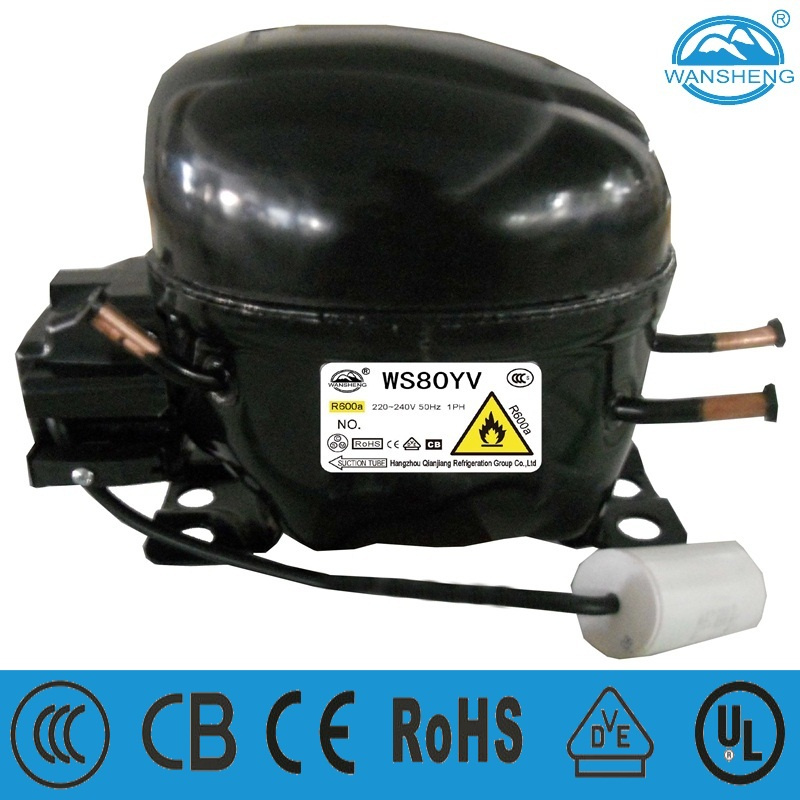

Product Description
Voltage application from 220 to 240V
WT Series WS80YV have high efficiency
Good reliability
Good startup performance
Low sound
Low vibration
Use R600a refrigerant
Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; Under special conditions voltage low to 165V and high to 242 is allowable.
RSCR Motor
WS80YV has passed CCC/CE/CB/VDE certification
Low Back Pressure
Application in refrigerator, freezer, display cabinet, wine chests and other medium and small -sized refrigeration equipment
Our company is the manufacturer and the trading company of popular household compressor WS80YV
Starting device is PTC
R600a compressor
WS80YV Frequency only for 50HZ
| R600a WANSHENG Low Back Pressure(LBP) Compressor |
| Wansheng R600a Low Back Pressure(LBP) compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
| Subcooling Temp.: 46.1°C |
|
| LBP ASHRAE |
|
|
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
| WT Series |
| WS80YV | 220-240V/50Hz | 8 | 140 | 82.3 | 1/9 | 1.7 | RSCR | 4 | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
