Product Specifications
| Prod Model: |
QD75H-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Alu. |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
With CCC/CE/VDE certifications
WT series is mainly characterized by strong load capability, good startup performance, low noise and good reliability
WT Series is in fully enclosed crank and connecting rod structure and with reciprocating piston in the semi-direct suction mode
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd is one of the subsidiaries of Hangzhou Qianjiang Refrigeration Group Co., Ltd, specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. The productive capacity and sales volume of compressors have continuously ranked at the third place in Chinese refrigeration industry for the past four years.
Nowadays, we produce 10 series of compressors and more than 100 models available (V series, N series, J series, WS series, WQ series, VFC series, SC series, TK series, etc. ), whose power range from 1/12 to 3 horse, including the refrigerant R600a, R134a, R404a, R406a, R22 and R290. The characteristics of all products are high efficiency, high reliability, low noise level, low vibration level, low starting voltage, strong load capability, long life, etc.
The variety of compressors could be widely applied for refrigerator, freezer, kitchen refrigerator, vending machines, drinking fountains, ice-making machines, dehumidifiers and so on. The different compressors could satisfy the different customers' requirements.
The accumulated productive capacity and sales volume have exceeded 105 million units till the year of 2013. Our products have high popularity and influence among the customers all over the world. The company has strong financial strength supported by Hangzhou Qianjiang Refrigeration Group.
Professional R&D team, professional R&D equipment to ensure the research and development of products meeting various customer demands!
Used for used for ice cream maker and so on

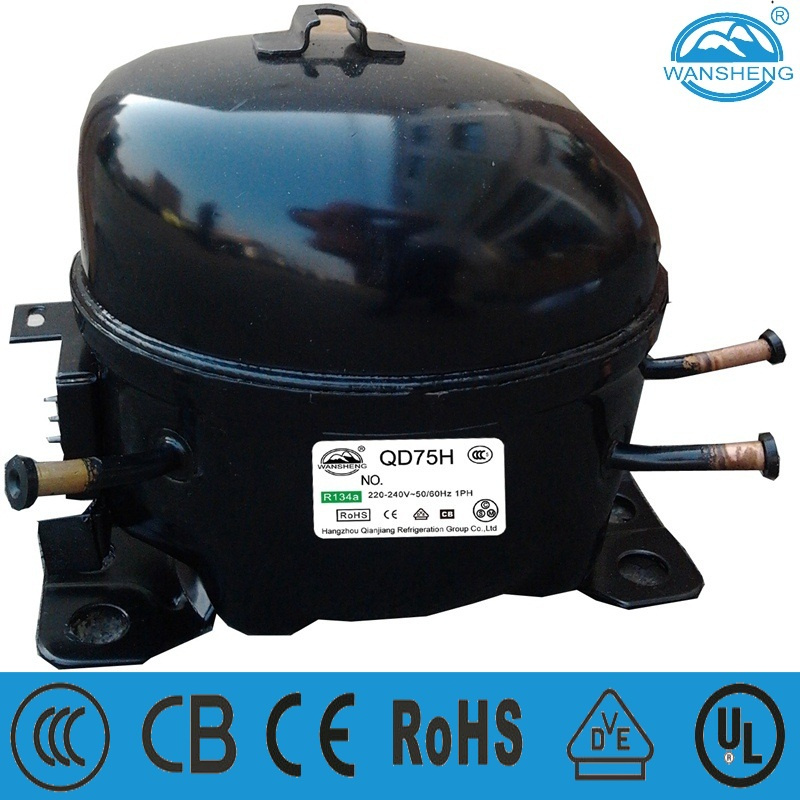

A/C compressor QD75H
Voltage: 220V-240V/50-60HZ
Use R134a refrigerant
R134a-LBP COMPRESSOR PERFORMANCE PARAMETER |
| Wansheng R134a low back pressure(LBP) compressor | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C |
| Subcooling Temp.: 32.2°C | LBP ASHRAE |
| Model | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
| WT series 220-240V/50-60Hz |
| QD75H | 7.5 | 180/200 | 150/154 | 1/5 | 1.2/1.3 | RSIR | / | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
