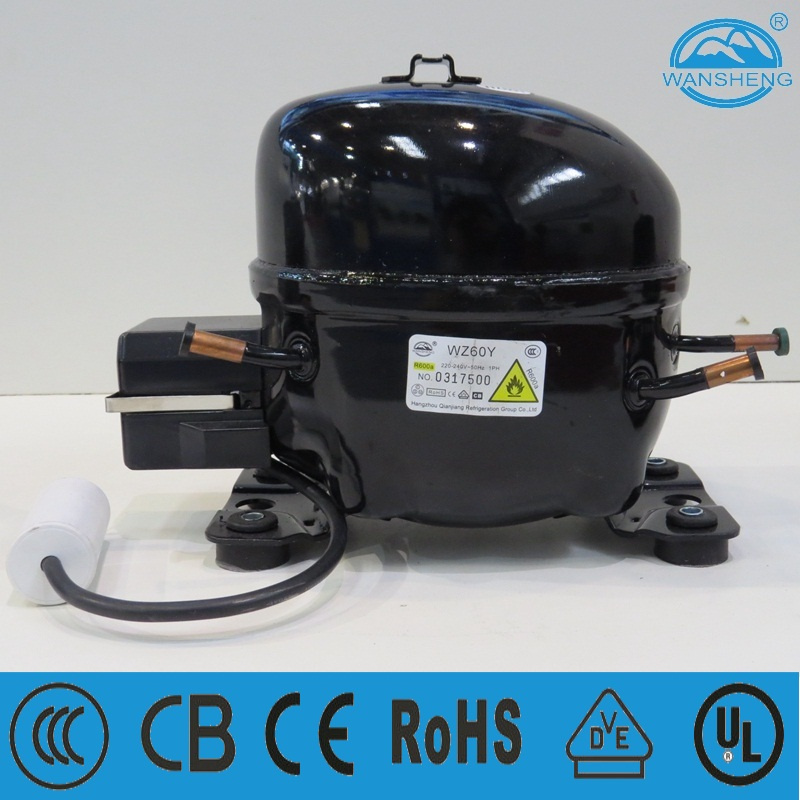

Wz Series Wz60y R600A Piston Refrigeration Compressor

Product Specifications

Prod Model:	WZ60Y-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Piston
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Copper
Piston Type:	Closed
Lubrication Style:	Lubricated
Application:	Low Back Pressure Type
Mute:	Not Mute

Product Description

R600a-LBP COMPRESSOR PERFORMANCE PARAMETER
Wansheng R600a low back pressure(LBP) compressor					Test Conditions	Evap. Temp.: -23.3°C			Cond. Temp.: 54.4°C
						Amb. Temp.: 32.2°C			Suction. Temp.: 32.2°C
						Subcooling Temp.: 32.2°C			LBP ASHRAE
Model	Power Supply	Displacement (cm³)	Cooling Capacity  (W)	Rated Power   (W)	Nominal power     (HP)	COP  (W/W)	Motor Type	Starting Capacitor (μF)	Running Capacitor (μF)	Starting Relay	Cooling Type
WT/WS series   220-240V/50Hz
WZ60Y	220-240V~50Hz	6.0	98	52	1/14	1.88	RSCR	/	3	e-PTC	S

Low noise

Small vibration

High stability and reliability

RSCR Motor

The height of WZ60Y compressor is 179MM.

WZ60Y has passed CCC /CB certification

Several general requirements as below

Compressor should be stored in a dry and drafty place.

Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.

Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.

The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
Match the proper evaporating temperatures according to the low, middle and high back pressure requirements. Pay attention to the admitted ranges of voltage and frequency for the different models.

Starting relay is e-PTC

Frequency only for 50HZ

Voltage application from 220 to 240V

WT/WS Series WZ60Y is R600a refrigerant compressor

Especially suitable for refrigerators

LBP compressor
