Product Specifications
| Prod Model: |
XYD |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| System Resolution: |
System Resolution |
| System Sensitivity: |
1.5-2% |
| Max. Penetration(Mm): |
80mm |
| Lead Cabinet Size(Mm): |
2305× 2350× 3070 |
Product Description
I. The high-tech demonstration industrial base about X-ray real-time detecting system.
Our company imported the X-ray real-time imaging system applying to the X-ray field in 80s, and spreading the arm industry, electric industry, oil industry, chemical industry and refractory material industry. What is more, it used in the pipeline, casting, boiler, car, pressure container, steel construction, air industry and etc. The company provided NDT equipments for China's manned spacecraft, Shenzhou 5 and Shenzhou6. The product technology has been awarded the national patent. It has been confirmed as the national radiative instrument base of China in 2004.
II. Main Function
The system turns the dynamic real-time imaging to the truth, good quality image, fast speed, reducing the noise, improving the speed for testing and reliability. What is more, it can choose any angle to test the disfigurement in the workpiece be fit for real-time testing specially.
III. Main Function
Electric shoot, electric pictures can be stored and can be changed formatted text
Windows, position technology, various flatness reducing noise
Edge strength, sharpen negative image, artificial color, real-time image magnify and shrink
Flaw measure, greyscale measure
CD store, report print
Improving real-time imaging system picture quality
Laser orientation
Dynamic storage and dynamic playback
3D simulation
Stored conveniently, printed quickly
The equipment can fit for all the software and judge all the function automatically

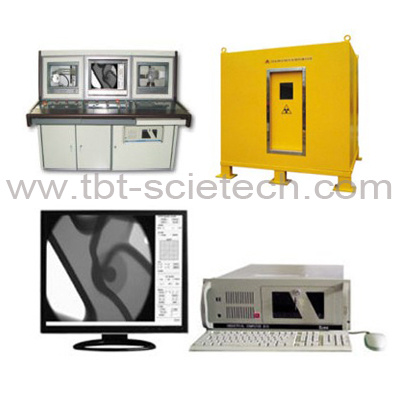

System Composition
X-ray detector
Imaging unit
Inspection platform
Processing image unit
Lead cabinet
Imaging Method
Image intensifier
Linear scan
Flat panel
Parameter
System resolution: 16-32
System sensitivity: 1.5-2%
| Model | The range of tube voltage adjustment(kV) | The range of tube current adjustment(mA) | Max. Penetration(mm) | The loaded weight by platform and the max. weight product tested | Lead cabinet size(mm) |
| XYD-450-NHD | 20~450kV | 0~10mA
0~2mA | 80mm | 200kg
Φ 300 × 1800 | 2305× 2350× 3070 |
| XYD-450-NHS | 20~450kV | 0~5mA
0~2mA | 75mm | 200kg
Φ 300× 1800 | 2300× 2350× 3070 |
| XYD-420-DW | 20~420kV | 0~3.5mA
0~10mA | 72mm | 70kg
Φ 300× 1800 | 2400× 2000× 2300 |
| XYD-320-NH | 20~320kV | 0~5mA
0~2mA | 53mm | 200kg
Φ 300× 1800 | 2300× 2360× 3070 |
| XYG-225-DW | 20~225kV | 0~7mA
0~3mA | 35mm | 60kg
Φ 600× 800 | 1954× 1822× 2020 |
| XYG-150-DW | 20~150kV | 0~4mA
0~4mA | 20mm | 60kg
Φ 600× 800 | 2116× 1815× 2013 |
| XYG-120-DW-D | 20~120kV | 0~1mA
0~2mA | 8mm | 10kg
Φ 300× 300 |
|
