XCLL2-250 Hydraulic Travelling Head Cutting Machine/Cutting Press/Moving Head Cutting Machine

XCLL2-250 Hydraulic Travelling Head Cutting Machine/Cutting Press/Moving Head Cutting Machine
Supplier: Yancheng Greater Machinery Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: XCLL2-250 (25T)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Shoes
Automatic Grade: Automatic
Certification: CE

Product Description

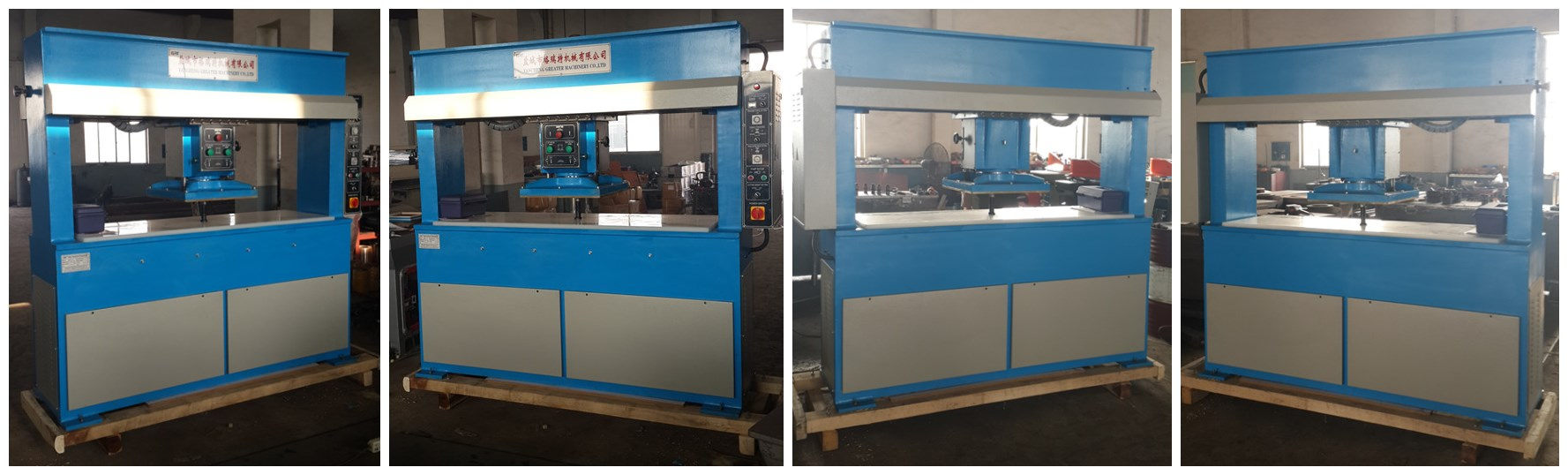

                XCLL2-250 Hydraulic Travelling Head Cutting Machine

It is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber;

1. Gantry frame structure is adopted, with high intensity and without deformation.
2. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
4. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.
5. Differential oil way is adopted to allow rapid and convenient cutting.



Model

XCLL2-250


Maximum cutting force


25Tons


Adjustment range of travel


5-150mm


Size of worktable


1600 × 510mm


Size of pressing board


500 × 500mm


Electric Supply Voltage


3x440/415/400/380/220/200V, 50/60 Hz


Main motor power


2.2KW


Packing size


2300 × 750 × 2250mm


Machine weight


1700Kg



The Greater machinery is absorbed in the automatic equipment of Hydraulic cutting machine and shoe-making machinery. Systematic design of high-accuracy blanking and made. It centralized domain front and most advanced technology, the cutting machine series researched and developed, hold the lead all the time on the market. Our company is active in implementation of brand strategy to promote the technological progress and sticks to the tenet of creating Greater brand, developing national machinery industry and has realized the fast development by legal operation with high-effective management, high product quality and complete after-sale services. Its products sell well in China and have been sold as far as to twenty foreign countries and regions, such as UK, USA, Japan, Russia, Italy and Southeast Asia.
At present our company has formed a whole complete supporting supply system of cutting, mould cutting machinery. Our company can supply the Hydraulic Cutting Machine from 20T to 300T, either single-side or double-side auto infeeding is available. It is applied to leather processing industry, shoe-making industry, case and bag industry, package industry, toys industry, stationery industry, automobile industry, polyurethane processing industry to cut materials such as leather, rubber, plastics, cardboard, cloth, foam, nylon, leatheret, and PVC with mold cutting die. Our company senior technical staff is with abundant experience, in order to help users in the selecting type of the machine and dispose, depend on different blanking technological requirements, seek the most advanced, most suitable solution. Impel users' product quality and profit to get the abundant assurance.
Friends both at home and abroad are welcome to visit us and cooperate with us!
Business Type: Manufacturer/Factory & Trading Company
International Commercial Terms: FOB, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Overseas Agent/Branch:
Address: Santos, Brazil
Telephone: 55 - 11 - 33130628

Export Percentage: >90%
Annual Export Revenue: 2.5 million~5 million USD
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Africa, Australia, Domestic
Export Mode: Have Own Export License
Factory Address: NO.8 FENGHUANG ROAD,DAGANG TOWN,YANCHENG CITY,JIANGSU,CHINA
R&D Capacity: OEM, Own Brand(GRT)
No. of R&D Staff: Less than 5 People
No. of Production Lines: 5
