Product Specifications
| Prod Model: |
XK-DQ-SDSZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1) Product Overview

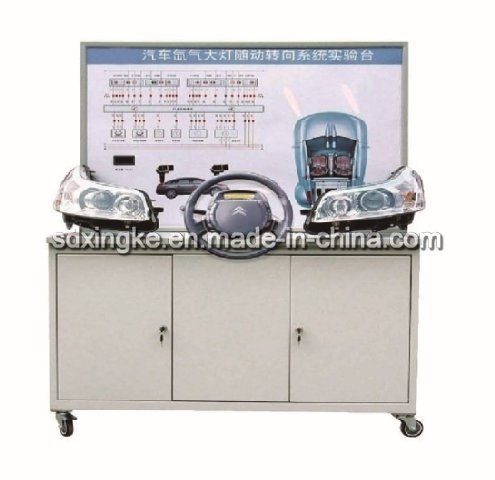

Product components: Light control unit, left right xenon headlamps assembly, steering wheel assembly, steering wheel Angle sensor, body height sensors, engine speed controller, speed controller, lamps, lighting LED dynamic display, combination switch, DC12V power supply, color circuit principle diagram panel, external type testing terminals, fault setting device, mobile platform, operation instruction, etc.
2) Main parameters:
Power voltage: 220V AC
Panel voltage: 12V DC
Size: 1300*750*1500mm
Weight: 60Kg
3) Main function
1. Dynamic running function: Based on common car models xenon headlight steering system physical body, equipped with various relevant auxiliary control system, Sensors and actuators, Display the composition and work principle of xenon headlamps follow-up system
2. Display function: Lamp lighting LED Real-time display work process of xenon headlamps
3. Detection function: Training platform panel install external type detection terminals, can do signal test and analysis of sensor, actuator and electrical control unit directly
4. Fault setting function: Have special fault setting and removing area, can simulate the real working condition, set many common faults, meet the need of teaching
5. Rotate steering wheel to change vehicle turning angle, Headlamps will then adjust beam illuminate Angle, to the best illumination range.
6. Change body height sensor relative position, then the headlamp will adjust beam lighting angle up and down, to reach the best lighting range
7. Simulate input signal of rotating speed controller, car speed controller etc...Can real-time monitor the effect that it causes to the headlamp follow-up steering system, so can analyze the relationship between this system and other running parameters
8. Test bench is equipped with using instruction, Practice instruction manual, student manual and other relative materials
9. Control panel have painted intuitionistic system principle diagram that is same as origional car control system
10. Training sets test bench adopt aluminum structure, installed universal self-locking wheel, convenient for teaching
