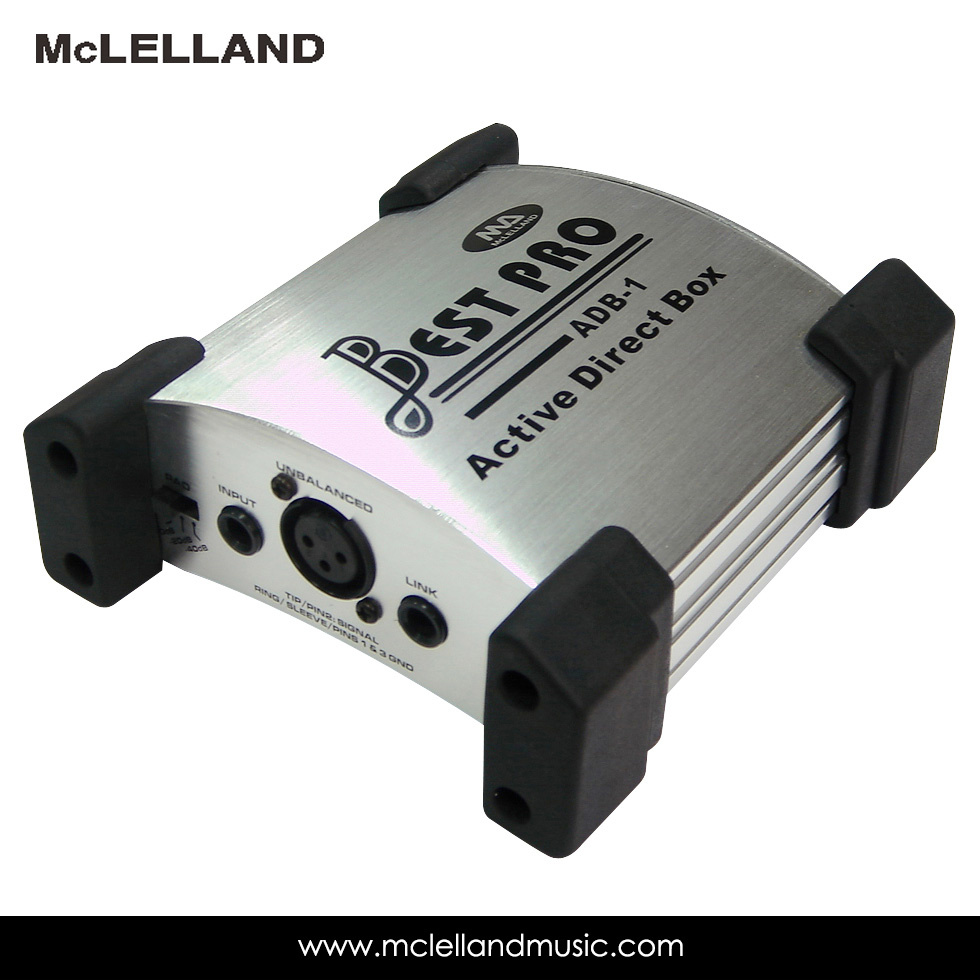

XLR Output Active Direct Box Adb-1
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Active Direct Box(ADB-1)
Features:
Converts 50K Ohms instrument input into balanced 600:
Ohms mixer output: Ohms
Jack-link-output
Power supply via 9V battery
Ground-lift switch
Attenuation adjustable 0dB/-20dB/-40dB
1 low-impedance XLR-output
Modern convex housing design
Full-rubber-housing corners for safe operation
Cables can be routed under the housing
Specification:
Power supply: 1 standard 9V battery
Current consumption: Approx. 65mA
Battery life: 6-8 hours
Frequency range: 10Hz-30 KHz
Input impedance: 470K Ohms
Output impedance: 600 Ohms
Maximum output level: 6dBu
Dynamic range: >100dB
Input Connectors: XLR and jack mounting sockets
Output Connectors: XLR mounting plug
| Prod Model: |
ADB-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jack-Link-Output: |
Power Supply Via 9V Battery |
| Ground-Lift Switch: |
Attenuation Adjustable 0dB/-20dB/-40dB |
| 1 Low-Impedance XLR-Output: |
Modern Convex Housing Design |
| Full-Rubber-Housing Corners For Safe Ope: |
Cables Can Be Routed Under The Housing |
| Battery Life: 6-8 Hours: |
Output Connectors: XLR Mounting Plug |
| Input Connectors: XLR And Jack Mounting: |
Dynamic Range: >100dB |
| Current Consumption: Approx. 65mA: |
Cables Can Be Routed Under The Housing |
| Screen Size: |
Without Screen |
| Application: |
Commercial |
| Type: |
Portable |
| Game Function: |
Without Game Function |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
