Product Specifications
| Prod Model: |
ADB-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply Via 9V Battery: |
Ground-Lift Switch |
| Switchable Signal Level (+20dB/-30dB): |
2 Low-Impedance XLR-Output |
| Phase Switch: |
High Cut Switch (8 kHz) |
| Modern Convex Housing Design: |
Full-Rubber-Housing Corners for Safe Operation |
| Cables Can Be Routed Under The Housing: |
Current Consumption Approx. 65mA |
| Battery Life Is 6-8 Hours: |
Frequency Range Is 10Hz-30 kHz |
| Input Impedance Is 470k Ohms: |
Output Impedance 600 Ohms |
| Maximum Output Level 6dbu: |
Dynamic Range >100dB |
| Input Connectors XLR And Jack Mounting: |
Output Connectors XLR Mounting Plug |
| Thd 0.5%: |
Dimensions 150X 130X 60 Mm |
| Game Function: |
Without Game Function |
| Type: |
Portable |
| Screen Size: |
Without Screen |
| Application: |
Commercial |
Product Description

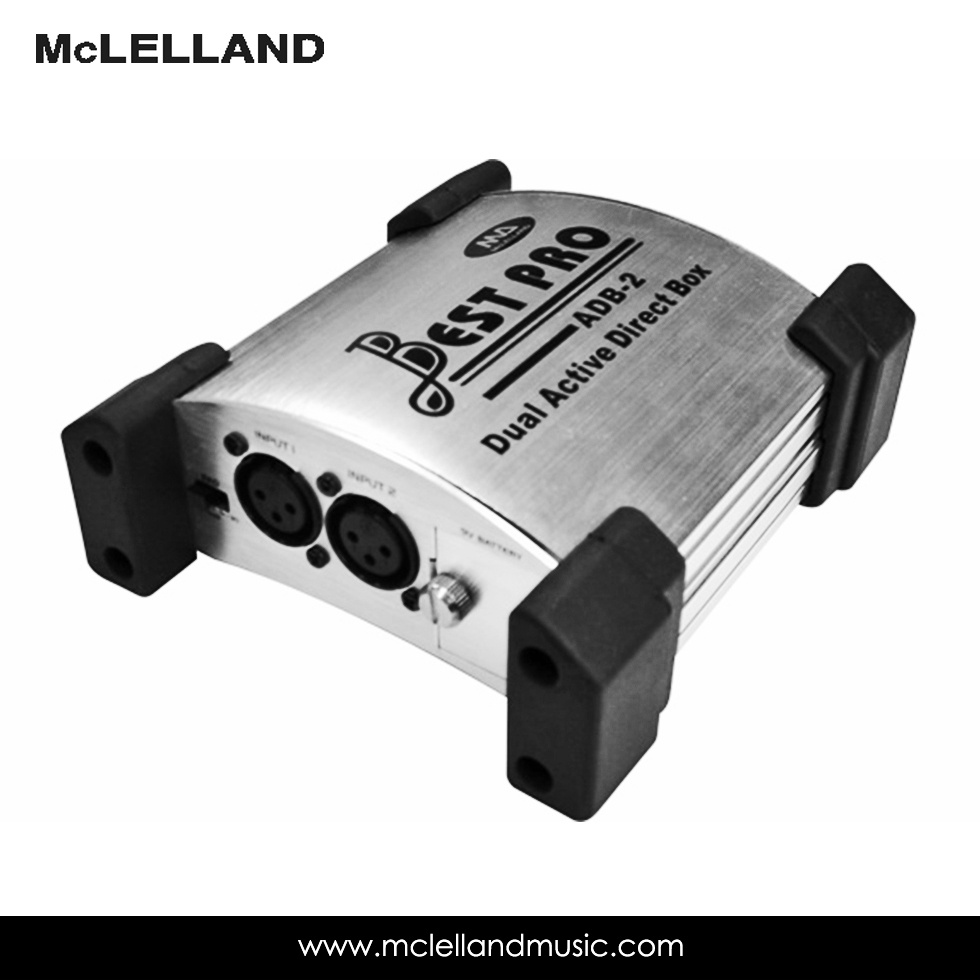

Dual Active Direct Box(ADB-2)
Feature:
Converts 50K Ohms instrument input into balanced mixer output:
Power supply via 9V battery
Ground-lift switch
Switchable signal level (+20dB/-30dB)
2 low-impedance XLR-output
Mono model: The signal is splited from 1input on both outputs
Phase switch
High Cut switch (8 Khz)
Modern convex housing design
Full-rubber-housing corners for safe operation
Cables can be routed under the housing
Specification:
Power supply: 1standard 9V battery
Current consumption: Approx. 65mA
Battery life: 6-8 hours
Frequency range: 10Hz-30 KHz
Input impedance: 470K Ohms
Output impedance: 600 Ohms
Maximum output level: 6dBu
Dynamic range: >100dB
High Cut: 8 KHz
Input Connectors: XLR and jack mounting sockets
Output Connectors: XLR mounting plug
THD: 0.5%
Dimensions: 150x 130x 60 mm
Weigh: 0.5kg
