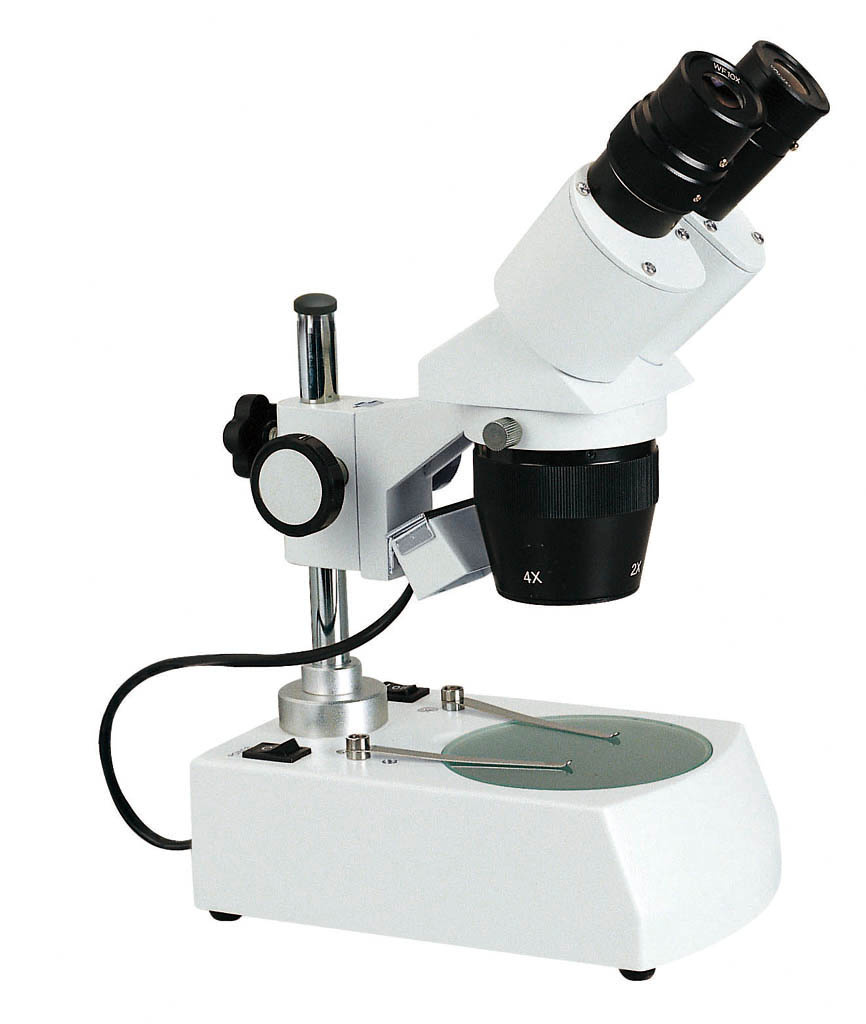

Product Specifications
| Prod Model: |
XTX-5C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainlad) |
| Brand Name: |
Huaguang |
| Model Number: |
Xtx-5c |
| Theory: |
Stereo Microscope |
| Drawtube: |
Binocular |
| Rotatable Binocular Head: |
360 |
| Magnification: |
50-100X |
| Type: |
Stereomicroscope |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Shape: |
Rectangular Prism |
| Principle: |
Optics |
Product Description
30 years history microscope manufacture experience
15000M² +workshop
500+workers
CE GS ISO quality and safety certification
Export to more than 30 countries
Packaging & Delivery
Packaging Details: | Each set packed in Styrofoam and in an inner box. Four sets in one carton. The outer measurement is 68*31*37
Optional accessories: .Wooden cabinet with lock and key /Aluminum case |
|---|
Technical Performance:1. Sharp stereo erect image over a wide field view.
2.45º Inclined and 360º Rotational binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment ± 5dp. The interpupillary distance is between 55-75mm.
3. Three kinds of 90ì Rotational objetive seletion
4. XTX-5(A, B, C)series supplied with pillar style stand; XTX-5(A, B, C)-W series supplied with arm curved style stand.
5. Electric apparatus has CE approval
6. Power supply 110V/60Hz or 220V/50Hz
7. Each set packed in styrofoam and in an inner box. Four sets in one carton.
8. A wide range of optional accesories.
Optional accessories:1. Eyepiece WF5X, WF10X, WF15X, WF20X
2. Objective 1X, 2X, 3X, 4X
3. Darkfield stage, 94.5mm
4. Jewel tweezer
5. White/black objcet plate, 59.9mm
6. White/black objcet plate, 94.9mm
7. Frosted glass object plate, 94.9mm
8. Incandescent bulb 12V/10W
9. Halogen bulb 12V/10W
10. Ring fluorescent lighting 8W, 10W
11. Wooden cabinet with lock and key
Ningbo Huaguang Precision Instrument Co., Ltd. is a professional science and technology manufacturing company located in the coastal city of Ningbo, PR China.
After more than 20 years' business development, our company now has become a specialized manufacturer of optics, mechanics and electronics.
We mainly produce XTX series stereo microscopes, ZTX series medium-sized stereo microscopes, SX series student microscopes, NK series biological microscopes etc.
With the acknowledgement of CE qualification as well as the requirements of RoHS instructions, our products have so far been exported to more than 20 countries and regions such as the USA, Brazil, Holland, Germany and Japan.
In 2002, our company cooperated with Shanghai Jiaotong University to develop nanometer photocatalysis air purifier, which passed new products appraisal of Ningbo Technical Supervision Bureau in October 2002 and now has put into batch production.
Our company has been listed as a Hi-tech Enterprise, passed ISO9002: 1994 in 1999 and transited to ISO9001: 2000 in 2002.
