| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | Y09-301 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Channels: | 0.3, 0.5, 1, 3, 5, 10µ |
| Type: | Electrochemical Gas Analyzer |

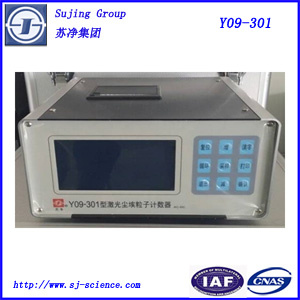

Y09-301 Laser Airborne Particle Counter Dust Particle Counter China Manufacture
Y09-301 Laser Airborne Particle Counter Dust Particle Counter China Manufacture is used to detect the particles in the cleanroom. It can measure the class 100 to 300 k environment. The instrument uses the laser diode as the light source, LCD-panel displays, six different size ranges simultaneously. The built-in printer can print count results. The counter can store 1000 samples data. Software creates data files for viewing or export to EXCEL sheet to computer. The instrument is widely used in the fields of micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace and so on.
Application
Cleanroom Monitoring
Facility Certification
Facility Monitoring
Filter Testing
Cleanroom Laundries
Cleanroom Packing
Aerospace
Hospital Surgical Rooms
Pharmaceutical
Paint Spray Booths
Food Processing Area
Hard Disk Drive Manufacturing
Company Information
Suzhou Sujing Automation Instrument Equipment Co.,Ltd. is one of affiliated enterprises of Jiangsu Sujing Group ,which are largest in scale and highest in market share in particle measurement field in China ,with the complete integration of scientific research ,development and production.
| Outside Dim | 236*280*126 mm 3 ; (Wide*Deep*High) |
| Display | LCD |
| Weight | 4.5Kg |
| Max. Consumption | 10W |
| Power Source | DC 16.8V (Lithium Ion Battery) |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10µ M |
| Calculation | 95%UCL calculation, Display Particle Concentration(particles/m³ ) |
| Flow Rate | 2.83L/min (Imported Pump) |
| Sample Time | 1---10min (Selectable) |
| Zero Count &le | 10min |
| Location Labels | 0-999 |
| Printer | Built-in Thermal Printer |
| Alarm | 100, 1000, 10000 Class |
| Data Storage | 1000 Samples (With PC Software) |
| Light Source | Laser Diode (30, 000 hours Mean Time Between Failures) |
| Maximum Rated Particle Concentration | 35000 particles/L (≤ 0.5µ M) |
| Operating Time | 8 hours |
| Environmental Temperature | 10degrees celsius-35degrees celsius |
| Humidity | 20%-75%RH |
| Atmosphere Pressure | 86Kpa-106Kpa |
