Product Specifications
| Prod Model: |
YD-BM-13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangdong China(Mainland) |
| Brand Name: |
Yuanda |
| Machine Type: |
Vertical Straight Line Beveling |
| Glass Thickness(Mm): |
5~19 |
| Min.Size Of Glass(Mm): |
150×150 |
| Voltage: |
for Option |
| Color: |
for Option |
| Power: |
30 |
| Weight(Kg): |
4500 |
| Certificate: |
CE |
| Type: |
Glass Beveling Machine |
| Certification: |
CE |
| Grinding Head Number: |
13 |
| Control System: |
Micro Computer |
Product Description

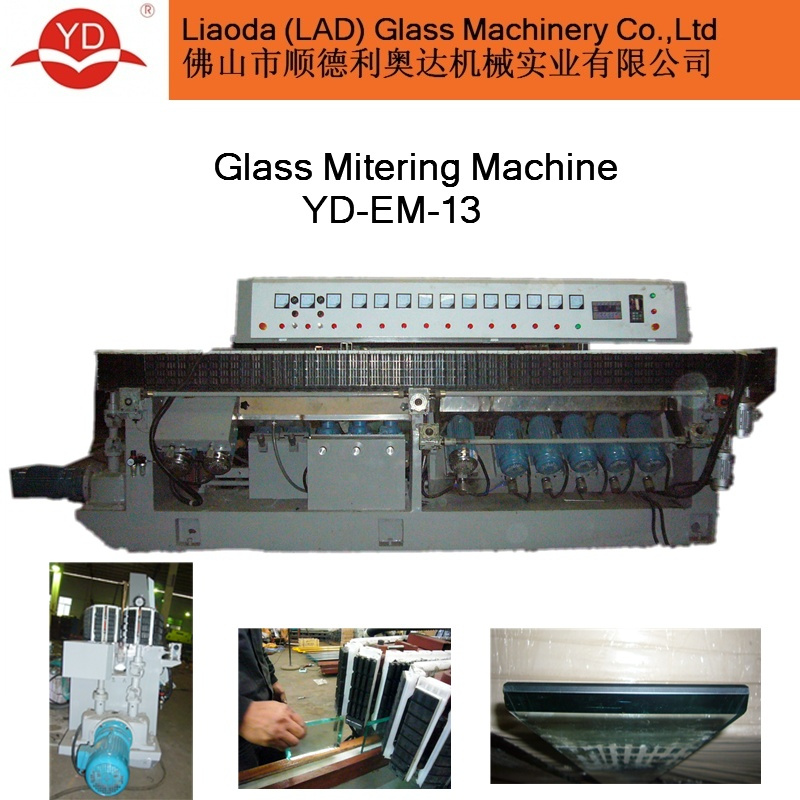

The 13 spindles mitering machines give perfect arri, flat bottom edge and angle various slant at one pass.Machine Character
1. Single chip controller
2. Stepless speed adjust
3. Electric thickness, angle adjustment adjustment
4. High speed inducing motor. Speed 2480rppm/min.
5. Synchronous belt
6. Stainless steel water tank
7. Cast steel machine base
8. Pneumatic polishing assistant, polishing with felt wheel and cerium oxide for slant
9. Aluminum or steel glass support for option
Machine specification
1. Max. Glass size: 3000x3000mm
2. Min. Glass size: 80x80mm
3. Glass thickness range: 3~26mm
4. Angle change range: 0~45 degree
5. Overall dimension (L. W. H): 8600x1000x2600mm
6. Worktable height: 750mm
7. Weight: 45000kg
8. Installed power: 28kw
9. Working speed: 0.7-5.0m/min
LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.
Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.
All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.
A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
