Product Specifications
| Prod Model: |
YD-EM-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Glass Edging Machine |
| Brand Name: |
Yuanda |
| Place Of Origin: |
Guangdong China(Mainland) |
| Model Number: |
Yd-Em-10 |
| Color: |
for Option |
| Glass Thickness(Mm): |
5-20 |
| Min.Size Of Glass(Mm): |
100×100 |
| Outer Dimension(M): |
6.8×1.0×2.6 |
| Power: |
20 |
| Weight: |
4500 |
| Type: |
Glass Edging Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

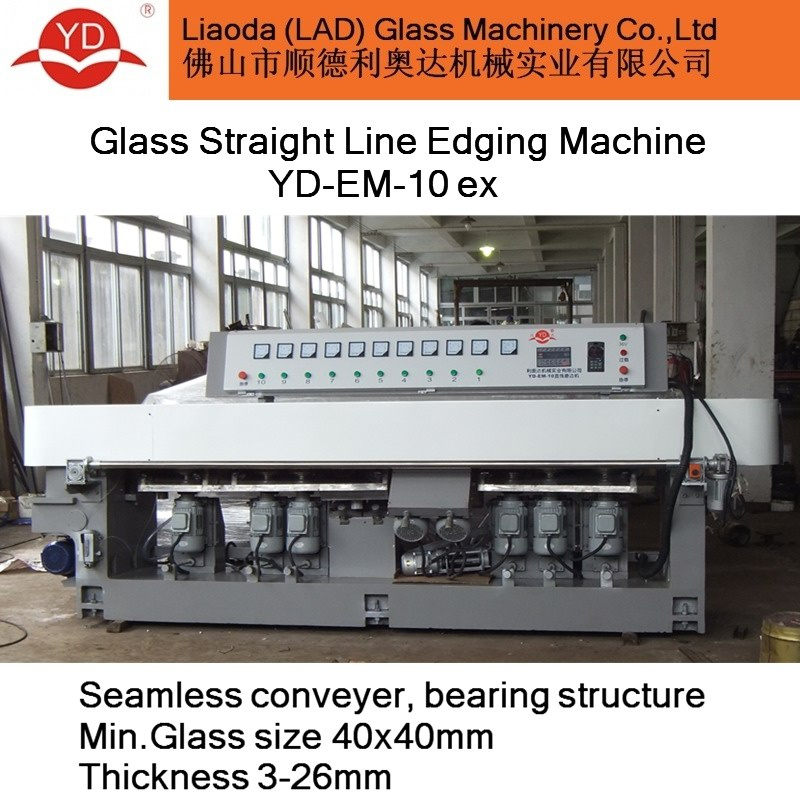

Vertical Straight Line Edging Machine with 10 wheels
Main features:
1. Suitable for flat glass straight edge;
2. Manual, single chip or PLC control system for option;
3. Rough grinding, fine grinding, polishing are done at one pass;
4. Chain or bearing conveying system, stepless/frequency speed adjustment for option.
This machine with 10 spindles, can process flat glass edging and polishing glass well, processed glass is smooth as mirror face.
Main Technical Specification:
Model Number | YD-EM-8 | YD-EM-9 | YD-EM-9-45 | YD-EM-10 | YD-EM-10(bearing) |
| Total nr.of spindle | 8 | 9 | 9 | 10 | 10 |
| Profile | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris |
| Glass thickness(mm) | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Min.size of glass(mm) | 100×100 | 100×100 | 100×100 | 100×100 | 50×50 |
| Glass speed (m/min) | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~5 |
| Power(kw) | 15.5 | 18 | 18 | 20 | 20 |
| Outer dimension(m) | 6.5×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 7.5×1.0×2.6 |
| Weight(kg) | 2600 | 3000 | 3000 | 3500 | 4500 |
The position of grinding wheels:
| No. | Name |
| 1 | Diamond wheel 100# |
| 2 | Diamond wheel 180# |
| 3 | Resin wheel for arris #240 |
| 4 | polsihing wheel for arris |
| 5 | Resin wheel for arris #240 |
| 6 | polsihing wheel for arris |
| 7 | Resin wheel #240 |
Guarantee And After-sale Service:
*One year guarantee for whole machine.
*24 hours technical support by e-mail.
*Ues-friendly English software,user manual and detailed Videos/CD.
*We will provide all spare parts needed for maintenance of the equipments.
*Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Why choose Ladglass?
1.Widely used in different industry
2.High precision and reputation
3.CE Certificate High quality parts
4.Competitive price
5.Fast delivery
6.Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
