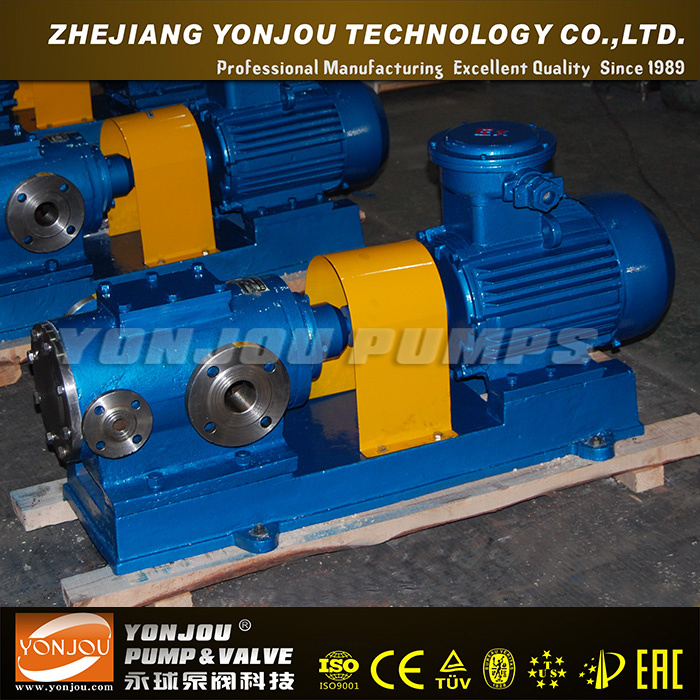

Yonjou Bitumen Pump

Product Specifications

Prod Model:	LQ3G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Pump Material:	Cast Steel
Yonjou Screw Pump Certificate:	ISO9001:2008
Design Standard:	Jb/Jq20104-1998
Warranty:	One Year
Screw Number:	Multi Screw Pump
Screw Suction Method:	Single Suction
Pump Shaft Position:	Horizontal
Application:	Bitumen, High Viscosity Medium
Certification:	CE/ISO2001:1998

Product Description

Specifications

YONJOU Bitumen Pump (Heat-preserving bitumen pump)

1.High efficiency.
2. competitive price
3.Best quality.
4.Nice look.



>>>Summarize:
LQ3G three screw pump (heat preservation bitumen pump) is a newly desinged rotor displacement pump, with unique desgin of double jacket casing, also with small volume, high speed allowed, small plusation, stable capacity, low noise, high efficiency.
Applicable to pump a variety of substance with temperature below 350 °c and high vicosity of 30-760mm2/s(1.2-100 °E).



>>>Main usage:
Pump fuel oil, crude oil, heavy oil, asphalt, rubber, resin such various types of lubrication oil-type liquod in industries of petrol eum, chemical fiber, metallurgy, road construction, electrity, mining, shipbuilting, glass, rubber.
The max advantage of this pump is it's function of pumping liquids with very high viscosity. It can even pump bitumen, crude oil, also this pump can pump other lighter liquids.
.

This pump aslo has the function of heat preservation, so when in cold environment, this pump can keep the liquids pumped in liquids, not solidfied.

This pump nowdays is very popular in mideast.It is one of the main products of our factory.

>>>Assembly:



>>>Our products, package, shipping:



>>>Zhejiang Yonjou Technology Co., Ltd located in Yongjia country, Wenzhou city, Zhejiang province, borders Lishui on the west, Taizhou on the north, and Fujian to the south, founded in 1995, our company is specialized in manufacturing high quality oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.

Model	Capacity  (m3/min)		Pressure	Speed	KW
	m3/h	L/min	MPa	r/min	aix	motor	suction
45× 3-36	2.8	46	0.6	950	0.8	1.1	5
	4.2	70	0.6	1450	1	1.5	5
45× 2-46	4.2	70	0.6	950	1	1.5	5
	14	233	4	1450	4.3	5.5	5
62× 2-43	8.58	143.4	0.6	950	2.06	3	5
	13.1	218.9	0.6	1450	3.15	4
62× 2-46	9.8	163	0.8	950	2.9	4	5
	25	417	1	1450	8.5	11
80× 2-45	23.1	386.3	1	950	8.6	11	5
	35.7	594.5	1	1450	13.1	15
80× 2-51	26.9	448.3	1	950	10.5	15	5
	41	684.1	1	1450	16	18.5
90× 2-36	24.2	403.5	0.6	950	5.52	7.5	5.5
	36.1	602.4	1	1450	13	15
90× 2-36	27.5	457.6	1	950	10.2	15	5.5
	41.9	698.5	1	1450	15.5	18.5
90× 2-46	34	566.7	0.8	950	9.7	11	5.5
	51.4	856.1	1	1450	18.6	22
100× 2-46	72.7	1212	0.6	950	16.5	18.5	5.5
	71.2	1187	1	1450	25.5	30
100× 2-51	55.7	928.6	1	950	20.8	30	5.5
	85	1417.2	1	1450	31.8	37
110× 2-46	58.9	951.7	1	950	21.8	30	5.5
	94.6	1577	1	1450	33.9	45
120× 2-42	65.4	1090	1	950	24.5	30	5.5
	105	1760	1	1450	38.2	45
120× 2-46	79.6	1327	0.6	950	17.8	22	5.5
	123	2059	1	1450	44.1	55
150× 2-46	154	2582	1	950	54.5	75	5.5
	236.5	3942.2	1	1450	82.2	90
