Product Specifications
| Prod Model: |
ZA-3500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Analysis Method: |
Chemical Analysis |
| Type: |
Dew Point of Moisture Meter |
Product Description

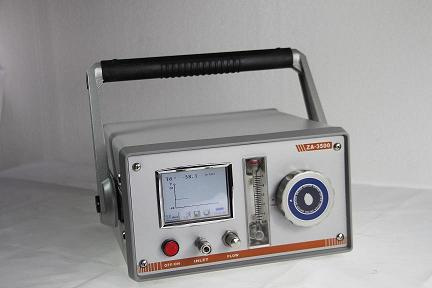

ZA-3500 portable dew point meter for H2, O2, N2, Ar gases
Brief Introduction
It adopts high performance dew point transmitter of Finland Vaisala Company as the core measurement unit of the entire system. It integrates multiple up-to-date research achievement and proprietary technology in measurement of dew point, and it has the function of Td, RH, ppm conversion and software upgrading. It is one of existing dew point measurement instruments with the most advanced technique and the most powerful function.
Main Features
Self-calibrating of zero point and slope at starting up (proprietary technology)
Calibration of dew point with full-scale range by single-point method (proprietary technology)
Sensor drying protection device (proprietary technology)
Operation and control by colorized touch screen
Storage and printing* of measurement data
Intelligent prompting of electricity quantity, automatic calibration for slope of intelligent charging protection (proprietary technology)
Lithium battery offers long standby time
Technical Parameters:
Measurable gas: H2, O2, N2, Ar, air etc. (non-acid, non alkaline, non corrosive gases)
Measurement of dew point: -80~+20 C
When the dew point temperature is lower than 0 C,
The output of sensor is frost point
Typical precision: Higher than± 2C
Response time (Td):
When the gas temperature is 20C:
-60~-20C 5s(63%), 10s(90%)
-20~-60C 45s(63%), 10min(90%)
Operation environment:
Temperature -10~+60C
Relative humidity 0~100%RH(non condensation)
Pressure one barometric pressure
Parameters of complete appliance:
Working flow no influence
Power supply built-in lithium battery (7.2V 8000mAh), AC/DC
Using time >10 h
Digital output RS232C USB2.0
Printing* 24 characters/row, stylus printer
Dimensions 273mm× 257mm× 143mm
Weight About 5.6kg
Fourteen years of developing and manufacturing gas leakage detectors, gas analyzers, gas dew-point meters and purity analyzers have made us an expert in the field. Here at Henan Zhiyi System Engineering, we have more than 40 models for your selection.
Henan Zhiyi System Engineering Co., Ltd engaged in researching and developing high quality air-sensitive technology since established. Our company has first-grade equipment, scientific methods, project management system and excellent employees. Our main products are gas-leakage detectors and gas analyzers, and are widely used in industrial field and chemical industry. Our company is always ready for supplying excellent products and professional service.
