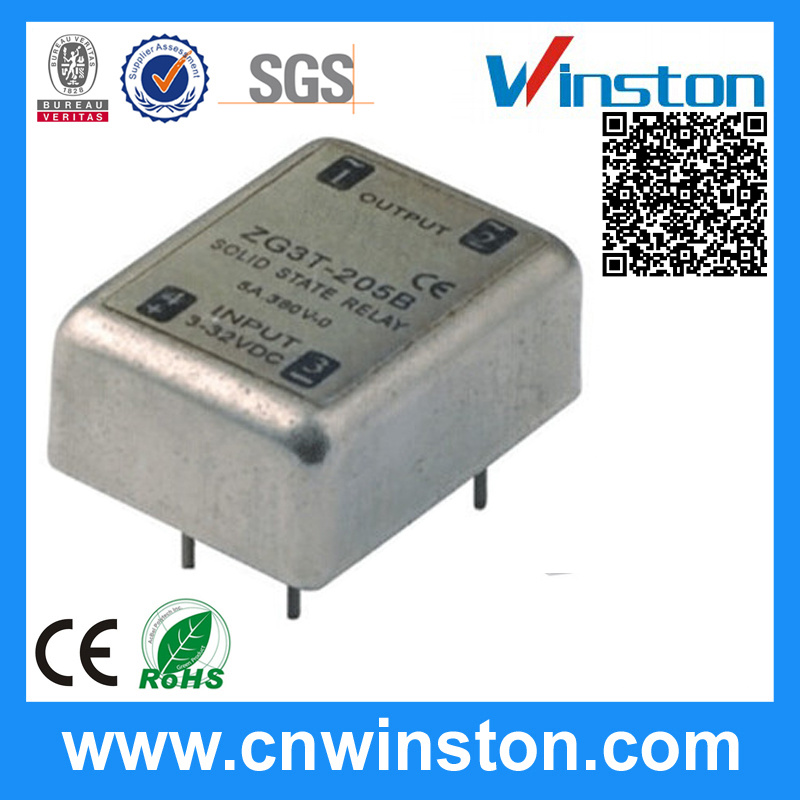

ZG3T-203B PCB Type AC Solid state relay
Specification:
Load Voltage: 60VDC,110VC,220VDC
Load Current: 3A,5A
Load Voltage: 220VAC or 380VDC
Control Voltage: DC3-14V or DC3-32V
Control Current: 6~35mA
On Voltage: ≤ 1.5V
Off Leakage Current:≤ 1.5mA
On-off Time: ≤10ms
Dielectric Strength:1500VAC
Insulation Resistance: 500mΩ /500VDC
Ambient Temperature: -25~70°C
The work instructions:/
Weight: 32g
| Type | ZG3NA | ZG3NC | ZG3V |
|---|
| Dimensions(mm) | 58 × 43 × 27 | 57 × 44 × 22 | 104 × 73.5 × 24 |
|---|
| Function | Many kinds of input standards SSR, With operation display |
|---|
| Output | Insulation | Photoelectric coupler |
|---|
| Load Voltage | 3-32VDC / 90-420VAC |
|---|
| Current | 10~40A | 10~80A |
|---|
| Leakage Current | ？ 100VAC 5mA ？ 200VAC 10mA |
|---|
| VoRmVceo | 1000 |
|---|
| di/dt(A/us) | 200 |
|---|
| dv/dt(v/us) | 400 |
|---|
| I2t(A2S) | 25~3000 |
|---|
| Tj(oC)Max.TJ(C) | 100 |
|---|
| Input | Input Voltage | 3-32VDC / 90-250VAC |
|---|
| Input Current | <40mA |
|---|
| Off Voltage | 1VDC |
|---|
| On Voltage | 3VDC |
|---|
| Off Time | 0.5ms DC / 10msAC |
|---|
| On Time | 0.5ms DC / 10msAC |
|---|
| Dielectric Strength | 50Hz, 60S 2500VAC |
|---|
| Ambient Temperature | -30oC~80oC(Under non-ice / dewfall condition) |
|---|
| Efficiency of Safety Working Current | Dissipative load is 60% / Inductive load is 40% |
|---|
