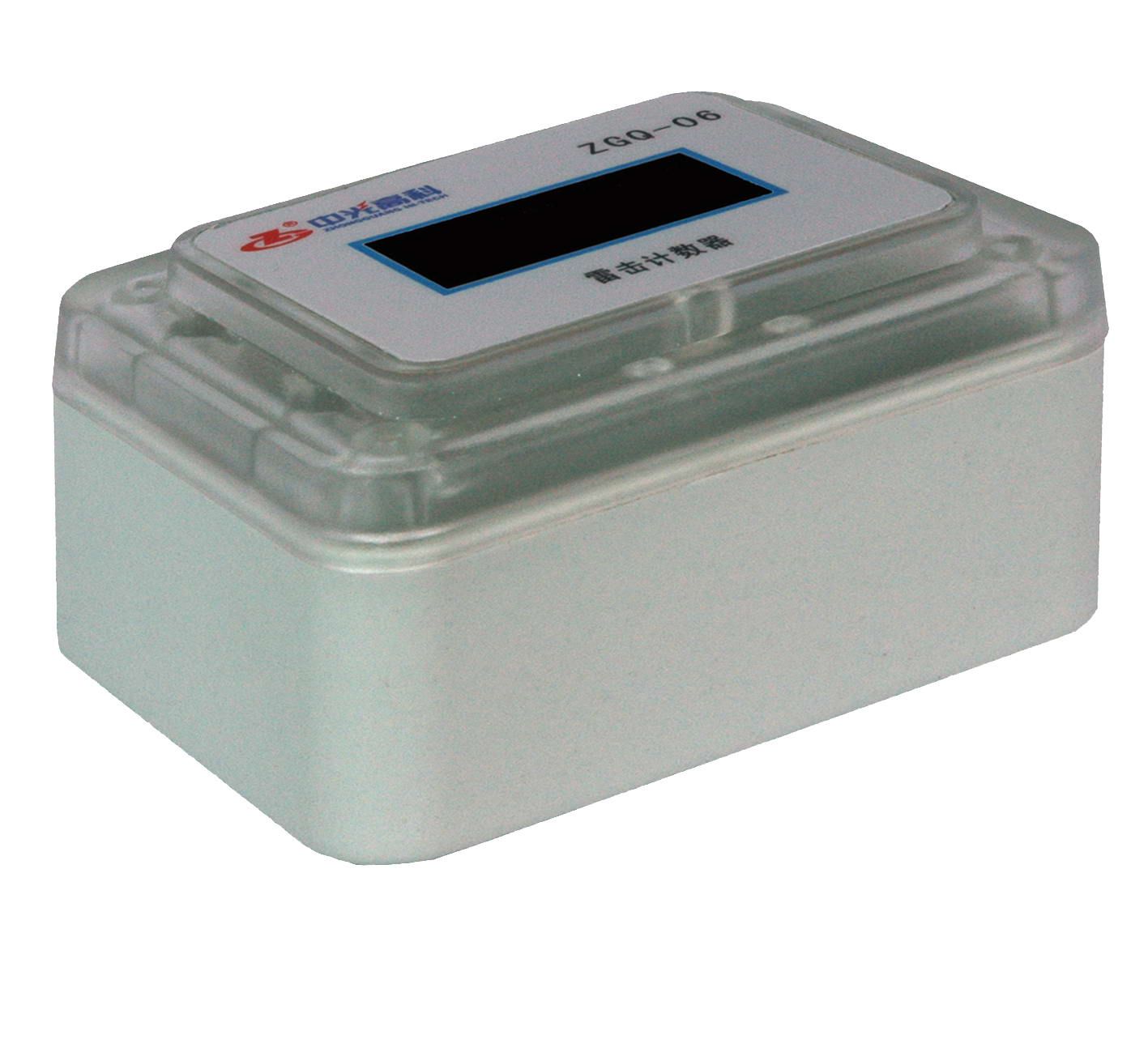

ZGQ-06 Lightning Stroke Counter (Electronic All-in-One Type)

Name: ZGQ-06 Lightning Stroke Counter (Electronic All-in-One Type)
Brand: china-manufacturer-directory.com
SKU: 701981875
Availability: InStock
Rating: 4.6 (40 reviews)

Supplier:	Sichuan Zhongguang Lightning Protection Technologies Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZGQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lightning Stroke Counter

Product Description

The function chart of the lightning stroke counter as shown below, which includes lightning current sampling circuit, rectifier and filter circuit and counter display circuit.
The lightning current sampling sensor should be installed tightly to the side of current discharge cable vertically. The lightning current that flows along the cable will induce certain voltage in the sampling sensor. Then the voltage signal is processed by rectifier and filter circuit and drives the numeral set to record the times of lightning stroke as a output of stable pulse signal.

Certifications

Zgq series lightning stroke counter obtained the China national utility models patent in jun, 1998. Patent no. Is zl98 2 28178.1 and patent file no. Is 369409.

Characteristic

Small outline, light weight, no power supply, convenient for installing.
Strong anti-jamming ability, stable operation.

Specification

Counter sensitivity(8/20Μ S): 1.0 ka
Lightning current range (8/20Μ S) : 1-150 ka
Max times : 999
Flame retardant class(UL94): V0
Protection class for enclosure: IP67
Service lifetime(year): 10
Installation method
Special fixation accessories(flat steel 2× 30or round steel Φ 6-Φ 15)
Weight (g): 240

Application: Used to record lightning stroke times for various kinds of lightning rod and SPD.

More details please contact us!

Type	ZGQ-06
Counter sensitivity(8/20μ s)	1.0kA
Lightning current range (8/20μ s)	1-150kA
Max times	999
flame retardant class(UL94)	V0
Protection class for enclosure	IP67
Service lifetime(year)	10
Installation method	Special fixation accessories(flat steel 2× 30or round steel φ 6-φ 15)

Excellent Team, Well-known Brand

Through tens of years efforts and development, Zhongguang Hi-Tech has now become a first-class lightning protection enterprise mainly involved in "Lightning protection", "electromagnetic protection " and "intelligent control system"
Zhongguang Hi-Tech as modern lightning protection enterprise possesses comprehensive lightning protection technology, complete product series, perfect testing equipment, excellent production lines, and strong manufacturing capability which bring Zhongguang into an enterprise with integrated resources of R&D, manufacture, testing, sales, project construction and standards establishment.
Zhongguang Hi-Tech with 49 national patents, 23 provincial level science and technology achievements along with strong expert team, has edited and co-edited over 14national and industrial standards such as 'lightning protection code for electronic info system in buildings (GB50343-2004)'.
Zhongguang Hi-tech is the first lightning protection enterprise which passed the certification of ISO14001 in Chinese lightning protection field. Now it already has the certificates of UL, RoSH, China CCC, etc.
The complete product series includes over 300 types covering industries of post telecom, telecom, broadcast, finance, petrol-chemistry, aviation, national defense, power supply, meteorology, traffics, etc. as well as over 10000 engineering construction projects which use these products.
Our products already directly or indirectly exported to Asia, North and South America, European countries, Africa.
