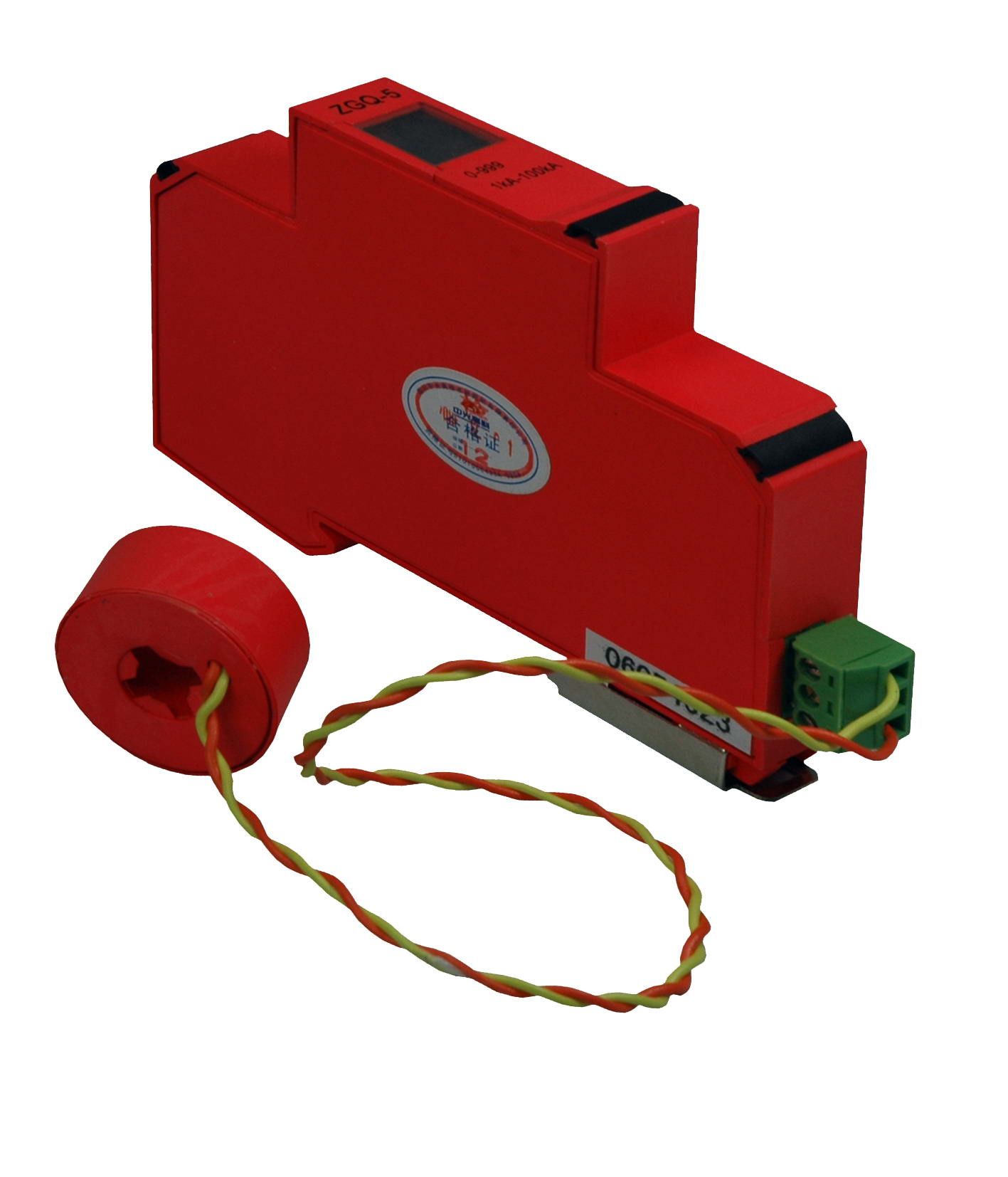

Lightning Stroke Counter ZGQ-05 (Modular electronic type)

Name: Lightning Stroke Counter ZGQ-05 (Modular electronic type)
Brand: China-Manufacturer-Directory.com
SKU: 701981605
Availability: InStock
Rating: 4.5 (123 reviews)

Supplier:	Sichuan Zhongguang Lightning Protection Technologies Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZGQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lightning Stroke Counter

Product Description

The function chart of the lightning stroke counter as shown below, which includes lightning current sampling circuit, rectifier and filter circuit and counter display circuit.
The lightning current sampling sensor should be installed tightly to the side of current discharge cable vertically. The lightning current that flows along the cable will induce certain voltage in the sampling sensor. Then the voltage signal is processed by rectifier and filter circuit and drives the numeral set to record the times of lightning stroke as a output of stable pulse signal.

Certifications

Zgq series lightning stroke counter obtained the China national utility models patent in jun, 1998. Patent no. Is zl98 2 28178.1 and patent file no. Is 369409.

Characteristic

Small outline, light weight, no power supply, convenient for installing.
Strong anti-jamming ability, stable operation.

Specification

Min counter current(8/20Μ S) 1.0ka
Max counter current(8/20Μ S) 100ka
Max times 0~999
Case flame retardant class v-0
Installation method: The main body can be installed on the 35mm standard rail. The inductance coil should be encircle the earthing line and fixed, then connected to the main body.

Application: Used to record lightning stroke times for various kinds of lightning rod and SPD.

More details please contact us!

Type	ZGQ-5
Min counter current(8/20μ S)	1.0KA
Max counter current (8/20μ S)	100KA
Max times	0-999
Case flame retardant class	V-0
Installation method	The main body can be installed on the 35mm standard rail. the inductance coil should be encircle the earthing line and fixed, then connected to the main body.
