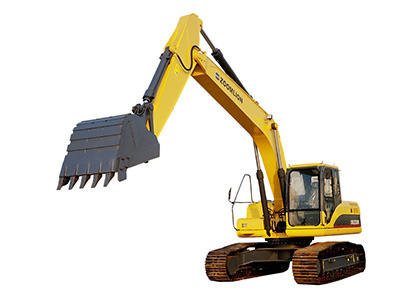

Zoomlion Crawler Excavator Ze205e

Name: Zoomlion Crawler Excavator Ze205e
Brand: China-Manufacturer-Directory.com
SKU: 681723712
Availability: InStock
Rating: 4.5 (117 reviews)

Supplier:	Henan General Machinery Imp. & Exp. Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZE205E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Crawler Excavator
Size:	Medium-Sized
Condition:	New
Certification:	ISO9001: 2000

Product Description

(a)Supreme Power, High Reliability and Low Fuel Consumption

Original packaging Comings engine which is equipped with electric throttle device can adjust fuel consumption according to the engine power, realize automatic idle speed and acceleration and decrease fuel consumption. The environmental protection

Performance is improved and accords with environmental emission standard of European II.
Large capacity fuel prefilter and oil-water separator improves fuel quality, decreases the early wearing of fuel injection nozzle and extends the service life of engine cylinder.

The air filter uses macro-scale structure and is equipped with air prefilter to realize three-stage filtering which ensures clean air admission and decreases the early wearing of cylinder components. It particularly satisfies for harsh working environment of heavy dust and wind.

The muffler uses large capacity airflow section technology, which significantly improves the effect of muting and reduces noise effectively.

(b)Advanced and reliable hydraulic control system

New complete electric control selective system

According to different working loads, design different power selection methods, perform optimum performance in the precondition of reducing fuel consumption and make the engine and the main pump power reach the best state.

Model	ZE205E
Machine weight	20300 kg
Bucket capacity	0.85 m³
Engine
Model	Cummins 6BTAA5.9-C
Type	6 cylinders, 4 stroke, water cooling, direct injection, turbochagred, inter0cooled
Rated power	112KW (150hp)/1950rpm
Max. torque	614N.m/1500 rpm
Bore×stroke	102×120 mm
Displacement	5883 ml
Hydraulic system
Main pump type	Awry-plate type Variable dispalcement piston pump
Max. flow	2×206 L/min
Guide pump	gear pump
Travelling motor	Double-speed awry-plate type piston motor with automatic brake and parking brake
Slewing motor	Awry-plate type piston motor with automatic brake
Working device Hydraulic circuit	31.9 Mpa ( when boosting 34.3 MPa)
Travelling Hydraulic circuit	34.3 Mpa
SlewingHydraulic circuit	25.5 Mpa
Guide hydraulic circuit	3.9 Mpa
Hydraulic cylinder( Cylinder number -Bore×stroke× piston rod diameter)
Swing arm	2-120×1315×85 mm
Bucket rod	1-135×1490×95 mm
Bucket	1-115×1120×80 mm
Dimension
Overall length	9420 mm
Overall width	2800 mm
Overall height (To Swing armtop )	3010 mm
Tail slewing radius	2740 mm
Tail length	2740 mm
Counter weight ground height	1085 mm
Min. ground clearance	440 mm
Crawler ground length	3370 mm
Crawler length	4180 mm
Track gauge	2200 mm
Crawler span	2800 mm
Crawler board width	600 mm
Grouserheight	26 mm
Overall height (Cab top )	2950 mm
Rotary table width	2720 mm
Working scope
Max.digging reach	9855 mm
Ground max.digging reach	9675 mm
Max.digging depth	6625 mm
Max. vertical digging depth	5980 mm
Max. digging height	9715 mm
Max. dummping height	6865 mm
Min. slewing radius	3275 mm
Bucket max. digging force	140 kN
Bucket rod max. digging force	100 kN
Coolant & lubrication oil capacity (Fullfilled )
Fuel tank	340 L
Hydraulic system	350 L
Hydraulic tank	230 L
Drive & brake system
Drive type	Full hydraulic
Travelling motor	Awry-plate type piston motor
Reducing mechanism	Planetary reducer
Slewing control	Two levers with foot pedals
Parking brake	Wet multi-disc plate brake
Max.tractoring force	192 kN
Gradeability	35° (70%)
Travelling speed (high/low)	5.5~3.3 km/h
