Henan General Machinery Imp. & Exp. Co., Ltd. >> Zoomlion Crawler Excavator Ze230e

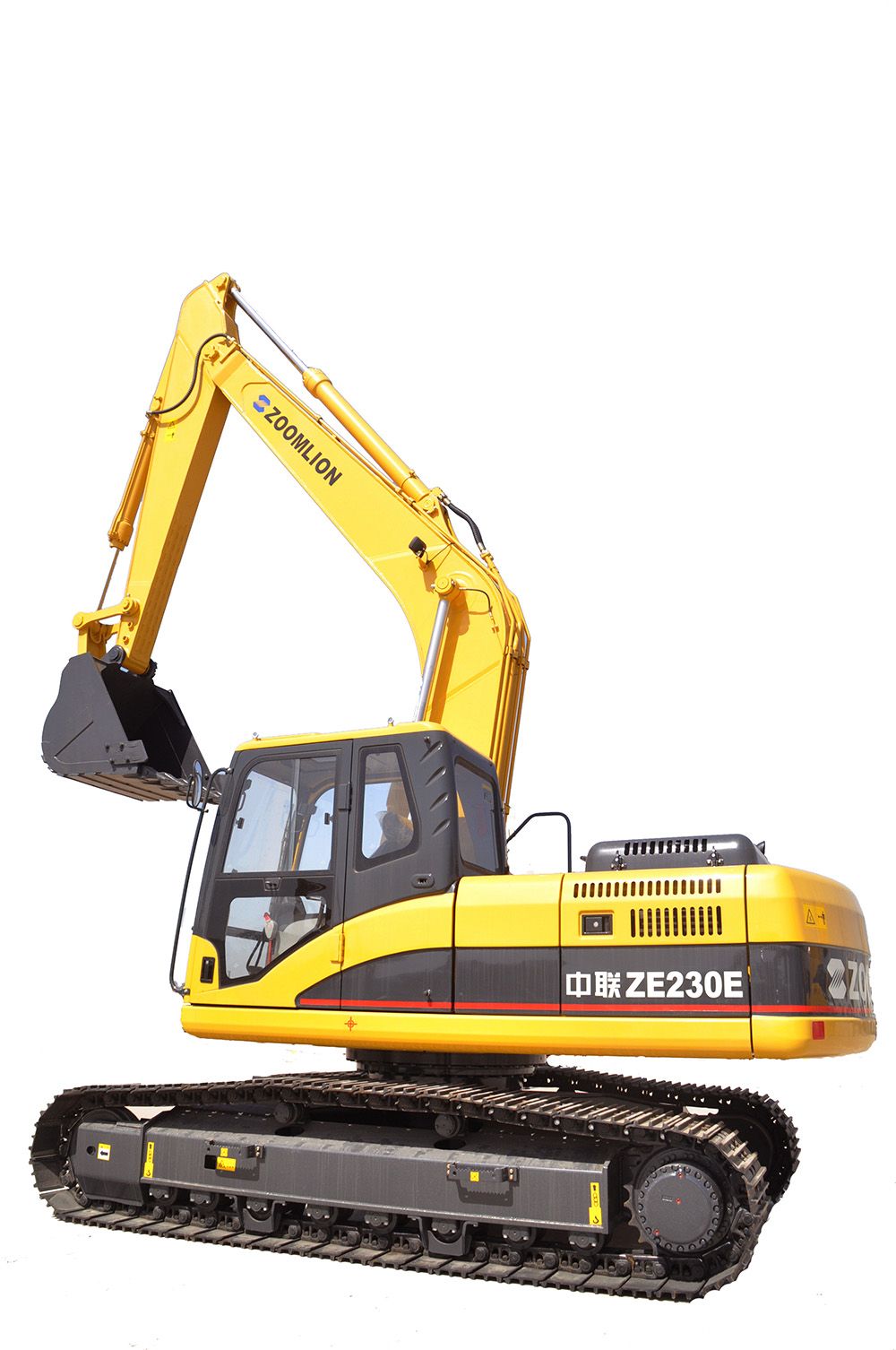

Zoomlion Crawler Excavator Ze230e

Name: Zoomlion Crawler Excavator Ze230e
Brand: china-manufacturer-directory.com
SKU: 681723662
Availability: InStock
Rating: 4.8 (141 reviews)

Supplier:	Henan General Machinery Imp. & Exp. Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZE230E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Crawler Excavator
Size:	Medium-Sized
Condition:	New
Certification:	ISO9001: 2000

Product Description

(a)Supreme Power, High Reliability and Low Fuel Consumption

Original packaging Comings engine which is equipped with electric throttle device can adjust fuel consumption according to the engine power, realize automatic idle speed and acceleration and decrease fuel consumption. The environmental protection

Performance is improved and accords with environmental emission standard of European II.
Large capacity fuel prefilter and oil-water separator improves fuel quality, decreases the early wearing of fuel injection nozzle and extends the service life of engine cylinder.

The air filter uses macro-scale structure and is equipped with air prefilter to realize three-stage filtering which ensures clean air admission and decreases the early wearing of cylinder components. It particularly satisfies for harsh working environment of heavy dust and wind.

The muffler uses large capacity airflow section technology, which significantly improves the effect of muting and reduces noise effectively.

(b)Advanced and reliable hydraulic control system

New complete electric control selective system

According to different working loads, design different power selection methods, perform optimum performance in the precondition of reducing fuel consumption and make the engine and the main pump power reach the best state.

Model	ZE230E
Machine weight	22800 kg
Bucket capacity	1.1 m³
Engine
Model	Cummins 6BTAA5.9-C178
Type	6 cylinders, 4 stroke, water cooling, direct injection, turbochagred, inter0cooled
Rated power	133kW (178hp)/2000rpm
Max. torque	708N.m/1500rpm
Bore×stroke	102×120 mm
Displacement (ml)	5883 ml
Hydraulic system
Main pump type	Awry-plate type duplex variable dispalcement piston pump
Max. flow	2×220 L/min
Guide pump	gear pump
Travelling motor	Double-speed awry-plate type piston motor with automatic brake and parking brake
Slewing motor	Awry-plate type piston motor with automatic brake
Working device Hydraulic circuit	32.4 Mpa ( when boosting 35.3 Mpa )
Travelling Hydraulic circuit	34.3 Mpa
SlewingHydraulic circuit	25.5 Mpa
Guide hydraulic circuit	3.9 Mpa
Hydraulic cylinder(No. of cylinder-Bore×stroke×piston rod diameter)
Swing arm	2-130×1315×90 mm
Bucket rod	1-140×1635×100 mm
Bucket	1-130×1020×90 mm
Dimension
Overall length	9735 mm
Overall width	2990 mm
Overall height (To Swing armtop )	3145 mm
Tail slewing radius	2840 mm
Tail length	2800 mm
Counter weight ground height	1070 mm
Min. ground clearance	440 mm
Crawler ground length	3640 mm
Crawler length	4430 mm
Track gauge	2390 mm
Crawler board width	600 mm
Grouserheight	26 mm
Overall height (Cab top )	2960 mm
Rotary table width	2720 mm
Working scope
Max.digging reach	10170 mm
Ground max.digging reach	9995 mm
Max.digging depth	6860 mm
Max. vertical digging depth	6120 mm
Max. digging height	10220 mm
Max. dummping height	7240 mm
Min. slewing radius	3140 mm
Bucket max. digging force	155 kN
Bucket rod max. digging force	120 kN
Coolant & lubrication oil capacity (Fullfilled )
Fuel tank	340 L
Hydraulic system	350 L
Hydraulic tank	230 L
Drive & brake system
Drive type	Full hydraulic
Travelling motor	Awry-plate type piston motor
Reducing mechanism	Planetary reducer
Slewing control	Two levers with foot pedals
Parking brake	Wet multi-disc plate brake
Max.tractoring force	195 kN
Gradeability	35° (70%)
Travelling speed (high/low)	5.2~3.4 km/h

HNGM in China is a national importer & exporter of electromechanical products, established in 1985 and get approved ISO9000.

Since then, Henan General Machinery Imp. & Exp. Co., Ltd, as a specialized trading company, has been providing kinds of mechanical products and services to the global market. With development of over 25 years, HNGM has built close relationships with lots of domestic manufacturers and more than 2, 000 overseas customers; We have business in the world.

With flexible management modes, our business scope has covered not only mechanical products which mainly include mining and engineering equipments, but also mineral materials; Refractories and chemicals.

The robust & close cooperation with manufacturers and some of research institutes makes HNGM is capable of helping customers to design/submit the complete solution for industry project.

HNGM has become the agent of NHL-Terex rigid dump truck and Siemens gear box and breakers. And we are endeavoring to get agents approval of some famous brands of wheel loader and bulldozers in China. By the above ways we could guarantee smoother supply of whole machines and spare parts.

In the past over 15years, the business of mineral materials; Refractories and chemicals are greatly expanded. Every year, HNGM exports more than 30, 000tons of variety of above materials products to foreign clients.

Nearly three decades' Precipitation and accumulation endows HNGM with incomparable advantages of mechanicals and raw materials. We are always ready to win more affirmation with cost-effective products and services.
