Product Specifications
| Prod Model: |
1200L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
cutting mahcine |
Product Description

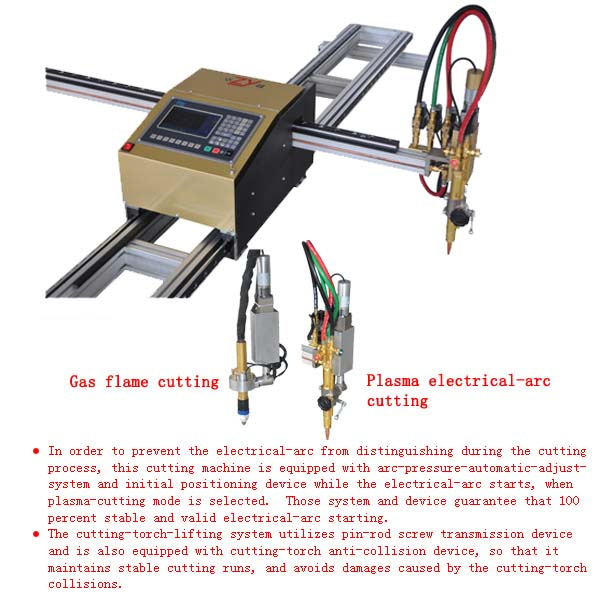

ZYNC-1200W Mini(Portable) CNC Cutting MachineThis mini portable CNC cutting machine consists of: main micro-controller (motherboard) is produced by Sino-USA joint-venture, Taiwan-manufactured transmission slider. ltalian gas solenoid valve, Taiwan switching powers supply that has passed USA UL certification, Germany software. All the hardware and software are with the top-quality configurations among the same categories of the products.
The machine is easy to operate while achieving highest steel utilization it can be used to directly manual programming through the system display for simple cutting pattems and shapes, and it also can be automatically programmed for any complex cutting pattems. The auto-program software is provided with the system. With supplied software, it not only can do single-piece cutting, but also can perform multiple-piece parallel. Cascaded, and bridged (single-cut-for-multiple-pieces) cuttings, It improves the steel utilization for 1-5%,
Extremely high programming memory and storage configuration: It can store more than 1000 drawings for complex cutting pattems. It loads the designed cutting pattem drawings fast and easily, and save time and increase the efficiency by avoiding to repeating input of the cutting pattems,
High cutting accuracy:
Diagonal length deviation small than 1 for 500×500 square workpiece , and the roughness of the cutting section is smaller than .
There is no dross on the cutting backside.
We also provide optional systems for plasma electrical-arc cutting and gas flame cutting technologies according to customer's require-ments.
Reliable and stable, anti-lightning, and anti-electromagnetic disturbance.
|
Model No |
Cutting scope(mm) |
Power voltage (V/Hz) |
Cutting torch group |
Flame cutting speed(mm/min) |
Travel speed of whole machine(mm/min) |
Outline dimension of whole machine
L×W×H(m) |
Total weinght of whole machine(kg) |
|
ZYNC-1000W-1.5 |
1000×1500 |
AC220/50 |
1 |
50-750 |
50-3000 |
2×1.7×0.3 |
66 |
|
ZYNC-1200W-2 |
1200×2000 |
AC220/50 |
1 |
50-750 |
50-3000 |
2.5×1.9×0.36 |
70 |
|
ZYNC-1200W-2.5 |
1200×2500 |
AC220/50 |
1 |
50-750 |
50-3000 |
3×1.9×0.36 |
77 |
|
ZYNC-1200W-3 |
1200×3000 |
AC220/50 |
1 |
50-750 |
50-3000 |
3.5×1.9×0.36 |
84 |
|
ZYNC-1200W-4 |
1200×4000 |
AC220/50 |
1 |
50-750 |
50-3000 |
4.5×1.9×0.55 |
180 |
|
ZYNC-1200W-5 |
1200×5000 |
AC220/50 |
1 |
50-750 |
50-3000 |
5.5×1.9×0.55 |
220 |
|
ZYNC-1200W-6 |
1200×6000 |
AC220/50 |
1 |
50-750 |
50-3000 |
6.5×1.9×0.55 |
260 |
