Product Specifications
| Prod Model: |
2100X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
cutting mahcine |
Product Description

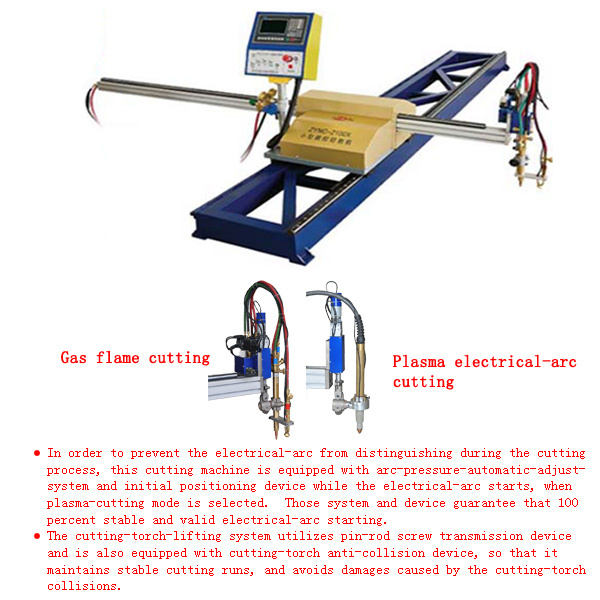

ZYNC-2100X Small-Scale CNC Cutting Machine
This model the CNC cutting machine is improved and upgraded based on the ZYNC-1200W
Mini (portable) CNC Cutting Machine. It has greatly improved the cutting range and material utilization .It is equipped with power-lifting and auto-lgnition devices to reduce the equipment-moving time and ignition time from the manual operations.
Bases on customer's requirements, it can use different CNC main system and different versions of software, more powerful, more stable, and more accurate. The CNC cutting performance matches that of large gantry CNC cutting machine. It can perform all kinds of complex 2-dimensional curves, shapes and patterns. It also can be equipped with gas flame cutting or plasma arcing cutting.
This cutting machine: main micro-controller (motherboard) is produced by Sino-USA joint-venture, Taiwan-manufactured planetary gear transmission and two-axis slider, Italian gas solenoid valve, Taiwan-manufactured USA-UL quality-certified switching power supply, Germany software. All the hardware and software are with the top-quality configurations among the same categories of the products.
Extremely high programming memory and storage configuration: It can store more than 1000drawings for complex cutting patterns .It loads the designed cutting pattern drawings fast and easily, and save time and increase the efficiency by avoiding to repeating input of the cutting patterns.
High cutting accuracy: Diagonal length deviation small than 1 for 500×500 square workpiece, and the roughness of the cutting section is smaller than .There is no dross on the cutting backside surface.
We slso provide optional systems for plasma electrical-arc cutting and gas flame cutting technologies according to customer's requirements.
Reliable and stable .anti-lightning. and anti-electromagnetic disturbance.
Easy to operate.
|
Model No |
Cutting scope(mm) |
Power voltage (V/Hz) |
Cutting torch group |
Flame cutting speed(mm/min) |
Max idle strake speed(mm/min) |
Outline dimension of whole machine
L×W×H(m) |
Total weinght of whole machine(kg) |
|
ZYNC-2100x-2.2 |
2100×2200 |
AC220/50 |
1 |
50-750 |
6000 |
3×3.1×1.2 |
310 |
|
ZYNC-2100x-2.7 |
2100×2700 |
AC220/50 |
1 |
50-750 |
6000 |
3.5×3.1×1.2 |
340 |
|
ZYNC-2100x-3.2 |
2100×3200 |
AC220/50 |
1 |
50-750 |
6000 |
4×3.1×1.2 |
360 |
|
ZYNC-2100x-4.2 |
2100×4200 |
AC220/50 |
1 |
50-750 |
6000 |
5×3.1×1.2 |
410 |
