Product Specifications
| Prod Model: |
LREC9020PF-SC/ST/SFP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wired |
| Bandwidth: |
100Mbps |
| Interface: |
PCI Express |
| Application: |
Desktop |
| Motherboard Integrated: |
Separate Network Card |
| Type Of Network: |
Fast Ethernet |
| Field: |
Workstation |
| Transmission Rate: |
100Mbps |
Product Description
LREC9020PF

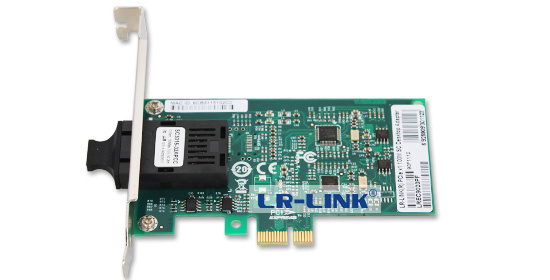

PCIe x1 100FX Fiber Optic NIC Card (RTL8105E Based)
LREC9020PF is a typical model of 1000base-SX/LX Ethernet adapter, based on Realtek RTL8105E Ethernet Controller, researched and designed by Shenzhen Lianrui Electronics Co., LTD. This new Ethernet adapter builds on LR-LINK's 10 years history of excellence in NIC R&D and Manufacture. LR-LINK continues to maintain the leadership position on NIC in China. This optical fiber Ethernet adapter is widely applied various occasions of Fiber To The Desktop (FTTD), set up optical fiber LAN network, optical fiber connection with life expectancy of 30 years, not subject to electromagnetic interference and against lightning. This adapter has very high data security, high reliability, stability and compatibility, has been widely used in the secret industry, such as prosecution, courts, police and military industrial enterprises etc. represented defense sectors, and gained all customers' unanimous recognition.
LR-LINK has PCI, PCIex1; 100M, 1G; SC, SFP, LC, ST, FC; Multi-Mode, Single-Mode and Bidirectional etc. Full-Series Fiber To The Desktop optical fiber network card (FTTD fiber network card). There are more than 50 models for your choose. LR-LINK is an important pusher of the solutions application for global Fiber to the desktop (FTTD), is the leader of global desktop optical fiber network card. If you want to know more product information, please browse: http://www.lr-link.com/DesktopFiberNICCards/index1.shtml
LREC9020PF fast Ethernet NIC card can offer users reliable fiber-optic link on fast Ethernet internet, particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (>100m).It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver. It can provide users with reliable FTTH and FTTD solutions. Users can select the optical interface parameters (including connectors, single-mode/multi-mode fiber, working distance, etc) according to occasion.
Key Features
Single-port PCI-Express 1000BASE-SX/LX Ethernet adapter
High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
According to customer's demands, we can select SL, LC, ST, FC and SFP fiber interface
Compliant with IEEE 802.3u 100Base-FX
Support flow control
Support priority queuing
ACPI 2.0 Power Management Function
Two color LED indicated to know the connecting and power status
Advanced management
Support most NOS systems
Auto-Negotiation with Next Page capability
Supports PCI Express 1.1
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Embedded OTP memory can replace the external EEPROM
Serial EEPROM and Two-Wire Serial Interface (TWSI) EEPROM
Transmit/Receive on-chip buffer support
Supports power down/link down power saving
Built-in switching regulator
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Supports quad core Receive-Side Scaling (RSS)
Supports Protocol Offload (ARP & NS)
Supports Customized LEDs
Supports 1-Lane 2.5Gbps PCI Express Bus
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
48-pin QFN 'Green' package
Networking Protocol
IEEE 802.3u 100Base-FX Ethernet standard Supports Full Duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3, IEEE 802.3u
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az Draft 2.0 (EEE) IEEE 802.1p priority control
Specifications
| Connector | SC,ST or LC (Fiber) |
| IEEE standard/network topology | 100BASE-SX/LX |
Cabling Distance
| 100BASE-SX: 2KM at 50 µm
1000BASE-LX: 20Km at 9µm; |
| Data rate supported per port | 100Mbps |
| Bus Type | PCIE 1.1v Bus |
| Hardware certifications | FCC , CE |
| Controller - processor | RTL8105e |
| Power consumption (active-typical) | 2W |
| Operating temperature | 0ºC to 55ºC (32ºF to 131ºF) |
| Storage temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Storage humidity | 90% non-condensing relative humidity at 35ºC |
| Connect speed LED Indicators | Link/Activity LED: off = No Link; on = Link; Blinking = Activity |
| Full-height end bracket | 12.07 cm ( 4.755 inches) |
| Low-profile end bracket | 8 cm (3.15 inches) |
Network Operating Systems (NOS) Software Support
Windows ME
Windows 98SE
Windows 7 32-bit (64-bit)
Windows 8 32-bit (64-bit)
Windows 8.1 32-bit (64-bit)
Windows XP 32-bit (64-bit)
Windows 2000 32-bit (64-bit)
Windows Vista 32-bit (64-bit)
Windows Server 2003 32-bit (64-bit)
Windows Server 2008 32-bit (64-bit)
Windows Server 2008 R2 32-bit (64-bit)
DOS
UEFI UNDI
FreeBSD 7.x and 8.0
SCO Unix 5.0.6 and 5.0.7
Novell server OS 5.X and 6.X
SCO Open Server 6 and UnixWare 7.1.x
LINUX driver for kernel 3.x.2.6.x.2.4.x
MacOS 10.4 and 10.5 on Intel-based Mac computer
MacOS 10.6 on Intel-based Mac computer
MacOS 10.7 on Intel-based Mac computer
Order Information
| M/N | Description | Notes |
| LREC9020PF-SFP | PCIe x1 100Base-X SFP Port Fiber NIC | SFP connection,
do not contain the fiber module |
| LREC9020PF | PCIe x1 100Base-X SC Port MM Fiber NIC | 155Mbps,1310nm,
2KM at 50 µm |
| LREC9020PF-LX | PCIe x1 100Base-X SC Port SM Fiber NIC | 155Mbps,1310nm,
20KM at 9 µm; |
| LREC9020PF-ST | PCIe x1 100Base-X ST Port MM Fiber NIC | 155Mbps,1310nm,
2KM at 50 µm |
| LREC9020PF-BD | PCIe x1 100Base-X SC Port MM Fiber NIC BIDI | 155Mbps,1310/1550nm |
| LRFP1315-02ATL | 155Mbps SFP multi-mode Transceiver | 155Mbps,1310nm,
2KM at 50 µm |
| LRGP1315-20ATL | 155Mbps SFP Single-mode Transceiver | 155Mbps,1310nm,
20KM at 9 µm; |
PS: The above details are just for reference, if there are any changes, no prior notice.
