Product Specifications
| Prod Model: |
LREC6220PF/LREC9220PF-ST/LREC6220PF-SFP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wired |
| Interface: |
PCI Express |
| Transmission Rate: |
1000Mbps |
| Application: |
Desktop |
Product Description

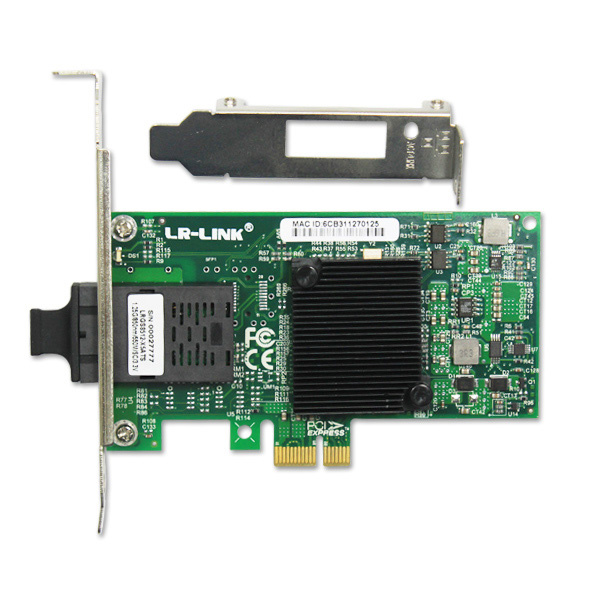

LREC9220PF PCIe 1000Base-SX/LX 1G Gigabit SC ST SFP Connector Fiber NIC Network Interface Card
Descriptions:
LREC9220PF is PCI-E managed 1000Mbps fiber nic which R&D in Shenzhen Lianrui Electronics Co., Ltd. It also the first modle PCI-E X1 slot fiber card which used the Intel chipset.
LREC9220PF use the Intel original chipset as major controller, the intel chipset has the best stability and compatibility in chipset. This card is unique in LR-Link. Has applicated successfully in in Great Hall of the People, CSIC, AVIC and other large state enterprises and institutions, units and provincial authorities. The quality is in high-level
LREC9220PF can supply reliable fiber optic connection quickly to build a gigabit network for the user, particularly suited to access information point distance beyond the five class line distance (100 m) access to the site, it also can completely replace the current widely used interface RJ45 Ethernet card external network structure of the photoelectric converter, to provide users with reliable optical fiber and optical fiber to the home to the desktop solution. Users can choose the fiber interface parameters (including single/multimode optical fiber connection head working distance, etc. ) according to using occasions.
Professional Quality Trustworthy
Shenzhen Lianrui Electronics Co., Ltd has developed for 8 years, has been to the professional supplier for the high-quality fiber communicate products. We have accumulated a lot of rearching and manufacturing experience in fiber communication erea, especially FTTD application, it is the top in this field. To satisfy the market needs, Independent R &D kinds of fiber network cards, this is unique in the market all over the world. It was applicated successfully. To welcome the develop trend of "the integration of telecommunications networks, cable TV networks and the internet"and "optical access for replacing copper access", Lianrui input all our energy the LREC fiber nic brand, to supply more professional, more stable, more flexible, more products choice for users.
High Performance Control, High performance Assurance
Use the Intel as major chipset controller and the Marvell photoelectric controller to supply high perforamce for network card.
Intel, Marvell companys, is one of the leadest Semiconductor, integrated electric communication products desing, rearching manufacture all over the world.
Features:
Plug and play
PCI-E X1 compliant
1000M 1*9 moudle, SC connector, MM and SM available
Compliant with IEEE 802.3z 1000Base-SX / 1000Base-LX Ethernet stardard
1000Mbps fast ethernet, Full duplex or half-duplex, reach 2000Mbps in full duplex
Support IEEE 802.3X flow control
Support IP Unicast broadcast and multicast address filtering mechanism
Support priority queue
Support IEEE 802.1Q VLAN tagging
Support IP multicast packet filterreduces host CPU use
Advantages:
Use the 6 layer PCB, double copper thickness, 5OZ heavy gold plate
Optimize designation, improved the distribution line and integral network arrangement
Use the high power control
Use the USA Marvell original photoelectric controller
Improved the fuctions and quality
Networking Protocol:
IEEE 802.3Z 1000Base-SX/LX Ethernet standard
IEEE 802.3X flow control
IEEE 802.1q VLAN tagging
GVRP VLAN registration protocol
IEEE 802.1p priority control
PCI-E 1.0 complaint
ACPI 2.0 power manage fuctions
Wavelength & Distance:
Fiber Connector Specifications Wavelength Distance:
SC/APC Single fiber, SM 1310/1550nm 10/20KM
SC/PC Dual fiber, SM 1310nm 10/20/40KM
SC/PC Dual fiber, MM 850nm 550M
NOS Software Support:
Microsoft Windows XP/2000/Vista/2003/2008/Win 7 32bit or 64bit
Microsoft NT 3.51 / 4.0
Microsoft Windows for Workgroups 3.11
Microsoft Windows CE. NET 4.0 / 4.2
Microsoft Client for DOS
NDIS 2/3/4/5 driver
ODI for DOS driver
32 bit ODI LAN driver
