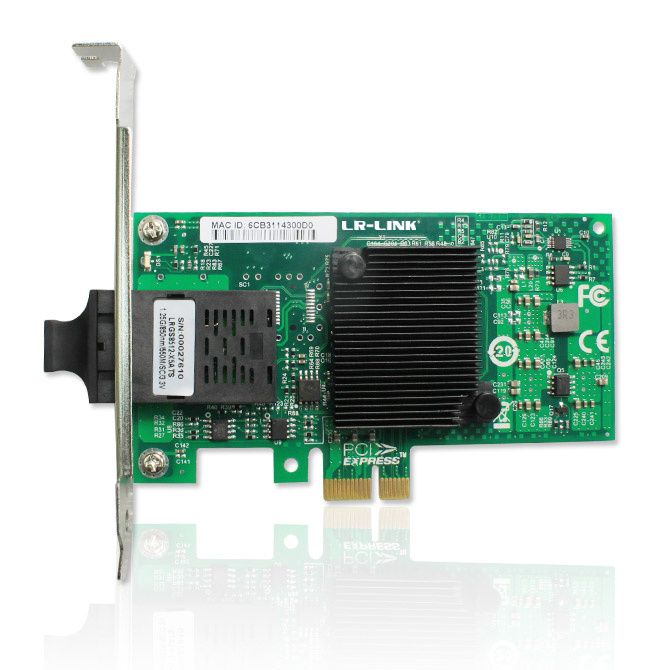

PCI Express x1 Single Port Gigabit MM Fiber NIC (Broadcom 5708S Based)
LREC6210PF is a typical model of 1000base-SX/LX Ethernet adapter, based on Broadcom 5708s Ethernet Controller, researched and designed by Shenzhen Lianrui Electronics Co., LTD. This Ethernet adapter builds on LR-LINK's 10 years history of excellence in NIC R&D and Manufacture. LR-LINK continues to maintain the leadership position on NIC in China. This optical fiber Ethernet adapter is widely applied various occasions of Fiber To The Desktop (FTTD), set up optical fiber LAN network, optical fiber connection with life expectancy of 30 years, not subject to electromagnetic interference and against lightning. This adapter has very high data security, high reliability, stability and compatibility, has been widely used in the secret industry, such as prosecution, courts, police and military industrial enterprises etc. represented defense sectors, and gained all customers' unanimous recognition.
LR-LINK has PCI,PCIe x1; 100M, 1G; SC,SFP,LC,ST,FC; Multi-Mode, Single-Mode and Bidirectional etc. Full-Series Fiber To The Desktop optical fiber network card (FTTD fiber network card). There are more than 50 models for your choose. LR-LINK is an important pusher of the solutions application for global Fiber to the desktop (FTTD), is the leader of global desktop optical fiber network card. If you want to know more product information, please browse: http://www.lr-link.com/DesktopFiberNICCards/index1.shtml
The LR-LINK LREC6210PF is a high performance PCI Express multifunction network adapter for either standard or low profile slots running over a fiber-optic network environment.
In addition to delivering Gigabit Ethernet networking, the LREC6210PF supports TOE (TCP/IP Offload Engine) for Windows only, Internet Small Computer System Interface (iSCSI).
Key Features
Single-port PCI-Express 1000BASE-SX/LX Ethernet adapter
High-performing design supporting PCI Express* Gen 1.0a 2.5GT/s
According to customer's demands, we can select SC, LC, ST, FC and SFP fiber interface
IEEE 802.3z, 802.3x, Dynamic 802.3ad, 802.3p, 802.1Q
Reliable and proven Gigabit Ethernet technology from Intel Corporation
Advantages:
Server chipset applied in desktop network adapter can support more functions
Compatible all the OS
PCB 4 layers,1.5oz, 4mil, more stable, longer using time, smaller resistance
Two line powers: 3.3v/1.2v
DC-DC power supply avoid the card effected by power influence
All use the good quality materials
Support PXE
Use the TI power controller, the best controller manufacturers in the world, it can provide a stable working environment
Standard Features:
Performance Gigabit Ethernet Throughput
Up to 1000Mbps Ethernet transfer rate delivers outstanding network performance that improves response time and removes bottlenecks across the entire network.
TCP/IP Offloading
TCP/IP Offload Engine (TOE) for Windows moves the processing of data in the TCP protocol stack from the server CPU to the network card, freeing CPU cycles for other duties. The LREC6210PF supports TOE when Windows TOE Chimney is installed. With TOE, network communications are improved, and server efficiency is increased.
Accelerated iSCSI
Accelerated iSCSI allows the LREC6210PF to multi-function as both as a network adapter and as a storage host bus adapter, thereby providing access to storage platforms and to servers over a single connection. Additionally,the LREC6210PF offloads the iSCSI software to the hardware for improved performance.
Load Balancing
Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB) are two advanced features used to build a bigger pipe for improved networking bandwidth. These port bonding techniques enable users to use up to eight adapter ports in a ProLiant server and aggregate their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex transmission.
Checksum and Segmentation Offloads, and Interrupt Coalescing
When running as a standard Gigabit adapter, the LREC6210PF features TCP Checksum Offloads as well as TCP Segmentation Offloads and Interrupt Coalescence.These features reduce the load on the CPU for overall improved system response. Interrupt Coalescence is a feature that groups multiple packets and issues a single interrupt to the host. This process improves host efficiency.
Scalability and Reliability
Network Fault Tolerance, sometimes called "failover" or "NIC redundancy," allows for the installation of multiple LREC6210PF server adapters or other network adapters so that the active device can be backed up by a redundant adapter to improve availability. The teaming utility also allows users to specify that when a failed adapter is fixed and replaced, the original adapter resumes its function as the primary network connection.
Management Support
LREC6210PF supports SNMP.
Configuration Utilities
Enable initial diagnostics within Windows, Linux, and DOS operating systems.Configure network adapter teaming in a Windows environment. The Windows adapter teaming configuration utility includes a patented teaming GUI for Microsoft Windows 2000 and 2003 operating systems.Support for scripted installations of teams in a Microsoft Windows environment allow for unattended OS installations.
Specications
| Connector | SC,ST or LC (Fiber) |
| IEEE standard/network topology | 1000BASE-SX/LX |
Cabling Distance
| 1000BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm
1000BASE-LX: 10Km at 9µm; |
| Data rate supported per port | 1000 Mbps |
| Bus Type | PCI Express* 1..0a (2.5GT/s) |
| Interrupt levels | INTA, INTB, INTC, INTD, MSI, MSI-X |
| Bus Width | 1-lane PCI Express; operable in x1 or greater slots |
| Hardware certifications | FCC , CE |
| Controller - processor | Broadcom 5708s |
| Power consumption (active-typical) | 0.75 W |
| Operating temperature | 0ºC to 55ºC (32ºF to 131ºF) |
| Storage temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Storage humidity | 90% non-condensing relative humidity at 35ºC |
| Connect speed LED Indicators | Link/Activity LED: off = No Link; on = Link; Blinking = Activity |
| Full-height end bracket | 12.07 cm ( 4.755 inches) |
| Low-profile end bracket | 8 cm (3.15 inches) |
Network Operating Systems (NOS) Software Support
DOS NDIS2
Netware (ODI16)
Windows XP 32-bit( 64-bit)
Windows Server 2003 32-bit (64-bit)
Windows Vista 32-bit (64-bit)
Windows 7 32-bit (64-bit)
Windows 8 32-bit (64-bit)
Windows 8.1 32-bit (64-bit)
Windows Server 2008 32-bit (64-bit)
Windows Server 2008 R2 32-bit (64-bit)
Windows Server 2012
Windows Server 2012 R2
Linux
Sun Solaris
VMware ESX/ESXi 4.1/5.0/5.1/5.5
Order Information
| M/N | Description | Notes |
| LREC6210PF-SFP | PCIe x1 1000Base SFP Port Fiber NIC | SFP connection,
do not contain the fiber module |
| LREC6210PF | PCIe x1 1000Base-SX SC Port MM Fiber NIC | 1.25Gbps,850nm,
275m at 62.5 µm; 550m at 50 µm |
| LREC6210PF-LX | PCIe x1 1000Base-LX SC Port SM Fiber NIC | 1.25Gbps,1310nm,
20Km at 9 µm; |
| LRGP8512-X5ATL | 1.25Gbps SFP multi-mode Transceiver | 1.25Gbps,850nm,
275m at 62.5 µm; 550m at 50 µm |
| LRGP1312-20ATL | 1.25Gbps SFP Single-mode Transceiver | 1.25Gbps,1310nm,
20Km at 9 µm; |
PS: The above details are just for reference, if there are any changes, no prior notice.
