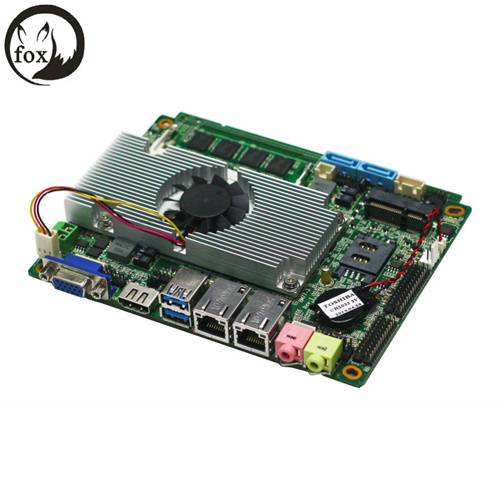

1037 Dual Core Motherboard with 2* LAN

1037 Dual Core Motherboard with 2* LAN
Price: US $ 240/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
1037 Dual Core Motherboard with 2* LAN
Onboard 1037 Dual Core DDR3 Motherboard with 2*Intel 82583V and SIM Slot

Specifications

DDR3 Motherboard
1. Intel Celeron 1037U CPU
2. Realtek HD ALC662 chipset
3.2*RJ45, 8*USB, 6*COM
4. UEFI BIOS



Specification & description
Onboard 1037 Dual Core DDR3 Motherboard with 2*Intel 82583V and SIM Slot
Suitable for AD Player;AIO machine ;  Thin Client; Firewall;Car PC;HTPC;VOD;  IPC; POS etc.
Form Factor 3.5 Inch  ( 115mm ×1 55mm )
Chipset Manufacturer Intel
CPU Onboard CPU .(Intel Celeron 1037U ).
Chipset I ntel ®   HM 7 7 /HM76  Express Chipset  Optional.
L2 /L3  Cache L2 Cache: 2×256KB ;L3 Cache: 3 MB . CPU integrated .
BIOS AMI EMI 32MB SMT/DIP-SPI Flash ROM
RAM (Onboard 4GB DDR3 1066/1333/1600MHz memory ; SO-DIMM socket  optional, maximum up to  8 GB ).
Graphics  Core Intel HD Graphics  3000/4000 (CPU Integrated )
  Sound Realtek  HD  ALC6 62  chipset (Line _ out/Mic _in ) ; onboard power amplifier ( SPK)
Network  RTL8111EL PCI-E Gigabit Ethernet LAN , support RTL/PXE diskless booting
Storage 2*SATA;1*mSATA
LVDS Support   dual  channel  24bit  L VDS connector ; Resolution max: 1920*1200
USB 8 * USB  (2 external -USB3.0 ; 6 from  expansion header -USB2.0 )
Expansion Sockets
1*Mini SATA socket  for SSD ;1*Mini-PCIE socket for WIFI /3G ;1*SIM card slot for 3G


rear panel  I/O
1* 12V -DC power _Jack(2 PIN Connector)
1*HDMI  ( Resolution max: 1920*1200 )
1*VGA port   ( Resolution max:   2048x1536 )
2 * USB  3.0  port
2 *1000M RJ45  port
2*Audio I/O interfaces   ( Line _ out , Mic _in )




Internal I/O
3 * USB  2.0  expansion header
2* CPU/SYS Chassis fan connectors
1*Audio I/O expansion header
6*COM expansion headers (support RS232/422/485)
1*GPIO expansion header(8  bit )
1* VGA  expamsion header
1*Audio power amplifier  connector
1* SPDIF  expamsion header
1*LPT expansion header
Power Interface 2 PIN  12V_DC connector
Working Temperature -20 °C~ 7 0°C ( -4 °F~1 58 °F)
Storage Temperature - 20°C~80°C (-4°F~176° )
Operating Humidity 10%~90% (non-condensing)
Advantages
1. Embedded high performance industrial motherboard.  ( 2.0cm ultrathin )
2.DDR3 1 066/1333/1600MHz   memory,SO-DIMM socket maximum up to  4 GB.
3 . Support  WIFI,3G SIM card,dual 1000M RJ45 LAN port,support Mini SATA   SSD  , more efficiency.
4.Support power booting/plug and play,Timer-power-on.
5.Support 1080P HDMI r esolution maximum up to:1920*1200 ;Support 24bit dual channel LVDS;VGA r esolution maximum up to:2048*1536.
6. Reliable, High stability, Low noise,  low power consumption.P erfectly suitable for  AD Player/AIO machine/IPC/VOD/ Car PC/HTPC  et

Prod Model: ITX-1037U-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lvds: Support Dual Channel 24bit Lvds Connector;
Audio Effects: Not HiFi
SATA Interface: SATA2.0
Main Chipset: Intel
Structure: Mini-ITX
Memory: DDR3
Integrated Graphics: Integrated Graphics
Maximum Memory Capacity: 8G
Main Board Structure: Integrated
Printed Circuit Board: Eight Layer
