Product Specifications
| Prod Model: |
SD3001E-SD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Outline

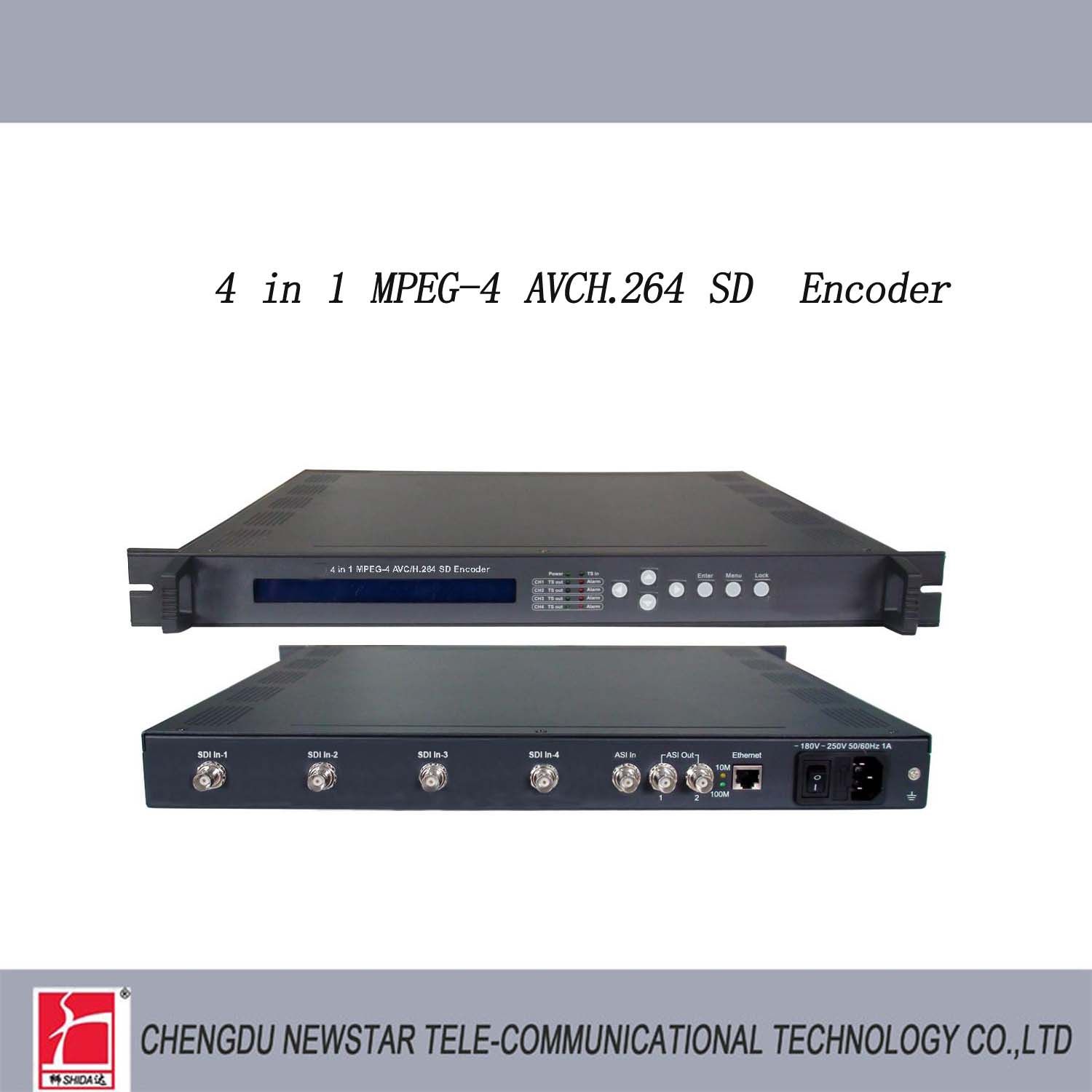

The SD encoder (with SDI input) is a professional SD audio & video encoding and multiplexing device with powerful functionality. It has 4 SD-SDI input interfaces, supporting MPEG-4 AVC/H. 264 High Profile code format. This device can simultaneously encode 4 channel SD audio & video; Moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
H. 264/AVC High Profile Level 3.0 video encoding support, advanced video pretreatment algorithm
Supports MPEG1 Audio Layer 2
4 SD-SDI input interfaces
1 ASI input multiplexing support
Multiplexed MPTS ASI output support
Multiplexed MPTS over UDP unicast/multicast output
LCD / keyboard operating
Real-time effective output bit-rate monitoring
NMS support
|
Input |
4× SD-SDI inputs, BNC interface |
|
1× ASI input, BNC interface |
|
Video |
Resolution |
720× 480_60i, 720× 576_50i |
|
Encoding |
MPEG-4 AVC/H. 264 High Profile Level 3.0 |
|
Bit rate |
0.8Mbps~20Mbps each channel |
|
Rate Control |
CBR/VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
|
Audio |
Encoding |
MPEG-1 Layer 2 AAC(optional) |
|
Sampling rate |
48KHz, 44.1KHz |
|
Resolution |
24 bit |
|
Bitrate |
64Kb/s~384Kb/s (each channel) |
|
Multiplexing |
1 ASI input multiplexed with local 4 channels TS |
|
Stream output |
2 × ASI outputs, BNC interface |
MPTS over UDP, 10/100Base-T Ethernet interface
(UDP unicast / multicast) |
|
System function |
LCD/keyboard operating, NMS support,
Chinese-English control interface |
|
Ethernet software upgrade |
|
General |
Dimensions (WxDxH) |
482mm× 455mm× 44.5mm |
|
Approx weight |
6Kg |
|
Temperature range |
0~45(Operation), -20~80(Storage) |
|
Power requirements |
AC 110V± 10%, 50/60Hz or AC 220V± 10%, 50/60Hz |
|
Power consumption |
17.6W |
