Product Specifications
| Prod Model: |
SDC-30001E-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description

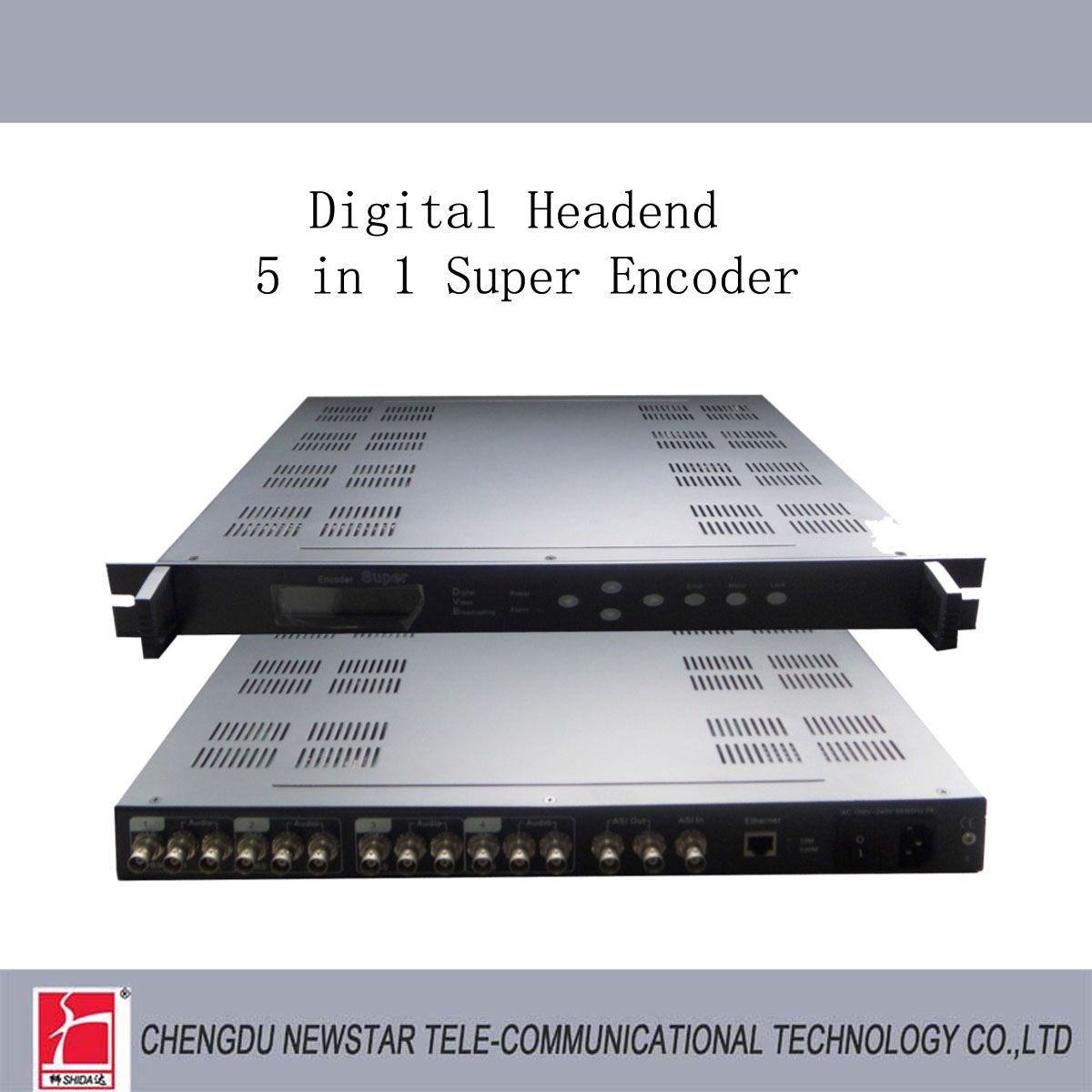

5 in 1 super encoder
Outline
SDC-30001E-III super 5 in 1 encoder is an easy-used encoder with powerful function, which has encoder and multiplexer in one set. Its great image pre-processing function can filter out the maximum redundant information. Additionally, with TS output it also supports several of audio coding such as MP2, AC3 and AAC etc., which fully compliance with MPEG-2 / 4 ISO standard.
What's more, users can set the image proportions (including 4: 3, 16: 9) as their own needs. Each one will be perfectly displayed with high compatibility. Furthermore, the front panel LCD also supports completely off-line setup and operation.
Feature
· 1 ASI input, realize encoder and multiplexer function, more flexibility to use
· I2C bus-mastering
· Output image proportion (including 4: 3 and 16: 9)
· High Definition Audio processing R/L channel, unbalanced stereo input
· 4× Video interfaces, 2× ASI outputs
· Encoding mode: VBR/CBR
· SDT/NIT built-in, program and provider configuration
· Supporting local and remote management
· LCD display, flexible in operation.
· PID display and configuration
· High reliable and stable functionality
|
Input interface |
Video Signal |
Electronic level 1.0Vp-p |
|
S-Video |
Electronic level 0.28Vp-p |
|
Audio Signal |
Electronic level 2Vp-p |
|
output interface |
ASI |
DVB Standard |
|
Output code rate |
|
125k~19Mbps Continuous Variable |
|
video encoding |
MPEG-2 |
Standard MPEG-2 media stream output; |
|
In line with ISO/IEC 14496-2 protocol strictly; |
|
MP@ML(4: 2: 0)Encoding mode |
|
MPEG-4 |
MPEG-4 SP /ASP/ SP 1Media Stream output |
|
audio encoding |
Sample Freq. |
32, 44.1, 48KHz |
|
Code rate |
64, 96, 112, 128, 160, 192, 224, 256, 320, 384Kbps |
|
Features |
MPEG-1 layer1/11, CD quality, Support one route stereo or dual track |
|
resolution |
PAL |
720´ 576, 704´ 576, 640´ 576, 352´ 288, 320´ 288, 176´ 288, 176´ 144 |
|
NTSC |
720´ 480, 544´ 480, 352´ 480, 352´ 240, 320´ 240, 176´ 240, 176´ 120, 480´ 57 6 |
|
general |
Dimensions |
482mm*360mm*44mm |
|
Environment |
0 ~ (work). -20 ~ (storage) |
|
Power supply |
220VAC± 10%, 50Hz, 25W |
|
Input interface |
Video Signal |
Electronic level 1.0Vp-p |
|
S-Video |
Electronic level 0.28Vp-p |
|
Audio Signal |
Electronic level 2Vp-p |
|
output interface |
ASI |
DVB Standard |
|
Output code rate |
|
125k~19Mbps Continuous Variable |
|
video encoding |
MPEG-2 |
Standard MPEG-2 media stream output; |
|
In line with ISO/IEC 14496-2 protocol strictly; |
|
MP@ML(4: 2: 0)Encoding mode |
|
MPEG-4 |
MPEG-4 SP /ASP/ SP 1Media Stream output |
|
audio encoding |
Sample Freq. |
32, 44.1, 48KHz |
|
Code rate |
64, 96, 112, 128, 160, 192, 224, 256, 320, 384Kbps |
|
Features |
MPEG-1 layer1/11, CD quality, Support one route stereo or dual track |
|
resolution |
PAL |
720´ 576, 704´ 576, 640´ 576, 352´ 288, 320´ 288, 176´ 288, 176´ 144 |
|
NTSC |
720´ 480, 544´ 480, 352´ 480, 352´ 240, 320´ 240, 176´ 240, 176´ 120, 480´ 57 6 |
|
general |
Dimensions |
482mm*360mm*44mm |
|
Environment |
0 ~ (work). -20 -(storage) |
|
Power supply |
220VAC± 10%, 50Hz, 25W |
