Product Specifications

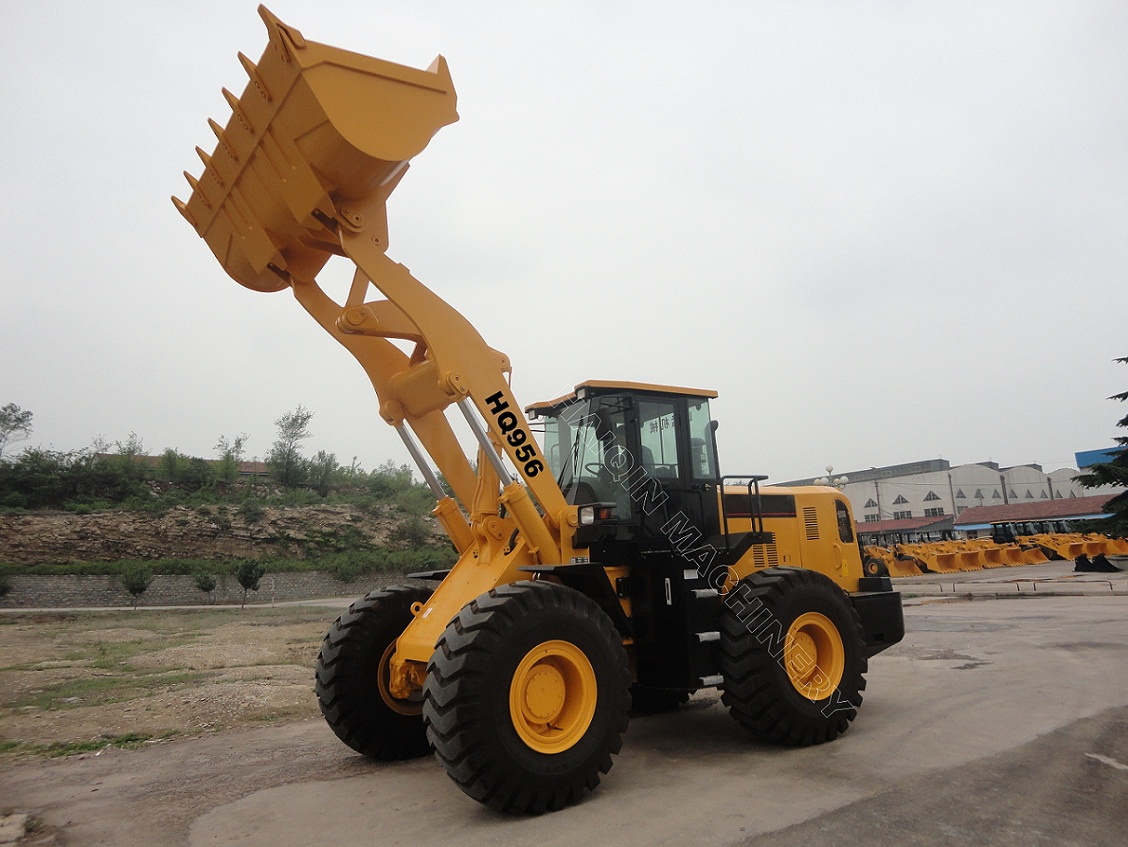

Prod Model: |
HQ956 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Loading Weight: |
5 Ton |
Operating Weight: |
17100kg |
Engine: |
Deutz or Cummins or EPA Tier 3/4 |
Warranty: |
1 Year |
Type: |
Large Loader |
Walking Mode: |
Wheeled |
Load And Unload Method: |
Front Discharge |
Certification: |
SGS,Rops&Fops |
Condition: |
New |
Color: |
According to The Buyers |
Product Description
1, Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.
2, Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable
3, Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety
4, CAT diesel engine is high power and torque, low fuel consumption and noise, high reliability. Double-stage air filter is standard equipment for dusty fields.
5, Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable
6, Twin pump-merging flow of working pump and steering pump. When the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy
7, Pilot hydraulic implement controls make operate easy and comfortable
8, The big loading engine side covers made in steel are of good appearance and suitable for maintenance
Performance | 1 | rated load | 5000kg |
2 | overall weight | 17100kg |
3 | rated bucket capacity | 3m 3 |
4 | maximum tractive force | 152KN |
5 | maximum breakout force | ≥170KN |
6 | maximum grade ability | 30degree |
7 | maximum dump height | 3150mm |
8 | maximum dump reach | 1250mm |
9 | overall dimension (L×W×H) | 7920×3050×3400mm |
10 | minimum turning radius | 6640mm |
Engine | 11 | model | CAT / WEICHAI |
12 | type | lnline water cooling dry cylinder injection |
13 | No. of cylinder-bore/stroke | 6-126×130mm |
14 | rated power | 162kw--2400r/min |
15 | maximum torque | 860N.m |
16 | min fuel-consume ratio | ≤215g/kw.h |
Transmission system | 17 | torque converter | YJ375 |
18 | gearbox mode | Power shift normally engaged straight gear |
19 | gear shift | 4 forward shift 4reverse shift |
20 | maximum speed | 38km/h |
Drive axles | 21 | main reducing spiral | bevel gear grade 1reduction |
22 | decelerating mode | planetary reduction,grade 1 |
23 | wheel base (mm) | 3200mm |
24 | wheel tread | 2250mm |
25 | minimum ground clearance | 450mm |
Hydraulic system | 26 | system working pressure | 18MPa |
27 | boom lifting time | 5.95±0.2s |
28 | total time | 10.95±0.5s |
29 | fuel tank capacity | 300L |
30 | function of leveling automatically | yes |
Brake system | 31 | service brake | air over hydraulic disc brake on 4 wheels |
32 | parking brake | manual parking brake |
Tyre | 33 | type specification | 23.5-25 |
34 | front tyre pressure | 0.4Mpa |
35 | rear tyre pressure | 0.35Mpa |
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
