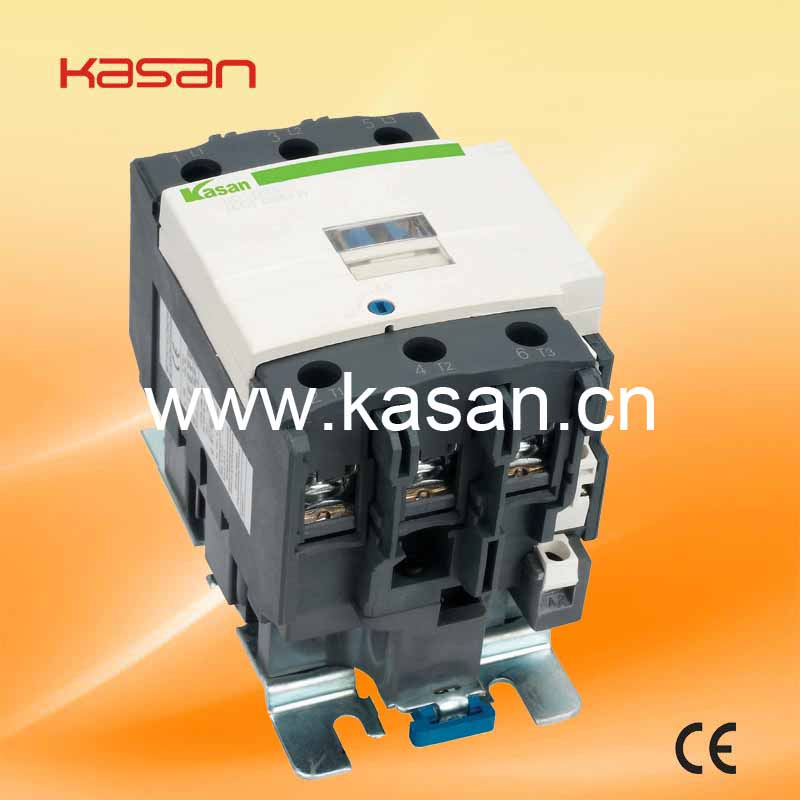

CE Approved New Type Magnetic AC Contactor LC1-D95

Name: CE Approved New Type Magnetic AC Contactor LC1-D95
Brand: china-manufacturer-directory.com
SKU: 690492912
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	LC1-D95
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
.Contactor No:	3p+No+Nc
.Contactor Current:	40A to 65A

Product Description

Specifications

This kind LC1-D40A/50A/65A AC Contactor is our newest type welcomed by broad customers.

NEWEST TYPE LC1-D AC CONTACTOR
CE APPROVED AC CONTACTOR

Detailed Product Description

1. Newest Ac Contactor
2. Newest LC1-D40/D50/D65
3. Contactor No: 3p+No+Nc
4. Contactor Current: LC1 40A to 65A

KASAN CAN OFFER EVEN SMALL QUANTITY AS PER CUSTOMER'S NEED

Contactor LC1-D Newest series AC contactors are suitable for frequency 50/60Hz, rated insulation
Voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4. Pe

SPECIFICATION

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Rated working current(A)	AC3	9	12	18	25	32
Rated working current(A)	AC4	3.5	5	7.7	8.5	12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	440V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current (A)		20	20	32	40	50
Electrical life	AC4×10⁴	20	20-15	20-7	15-7	15-7
Electrical life	AC3×10⁶	2	2	2	2	2
Mechanical life×10⁶		20	20	20	20	20
Number of the contacts		3P+NO
Number of the contacts		3P+NC

Type		LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current(A)	AC3	40	50	65	80	95
Rated working current(A)	AC4	18.5	24	28	37	44
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	45
	440V	22	30	37	45	45
	500V	22	30	37	55	55
	660/690V	30	33	37	45	45
Rated heat current (A)		60	80	80	125	125
Electrical life	AC4×10⁴	10-7	7	7-6	7-5	7-5
Electrical life	AC3×10⁶	2	2	1.6	1.6	1.6
Mechanical life×10⁶		20	20	20	20	20
Number of the contacts		3P+NO+NC

OUTLINE & MOUNTING SIZES
Outline & mouting sizes of KLC1-115-330 contactors are shown as followings:

Type	A	B	C	b1	P	Q	S	Q1	M	H	L	φ	Ga	Ha
LC1-115	167	163	172	137	37	70	20	60	147	124	107	M6	80	110
LC1-150	167	171	172	137	40	70	20	57.5	150	124	107	M8
LC1-185	171	174	183	137	40	71	20	59.5	154	127	113.5	M8
LC1-225	171	197	183	137	48	71	25	51.5	172	127	113.5	M10
LC1-265	204	203	215	145	48	87	25	66.5	178	147	141	M10	96
LC1-330	213	206	220	145	48	91	25	74	181	181	145	M10	96
