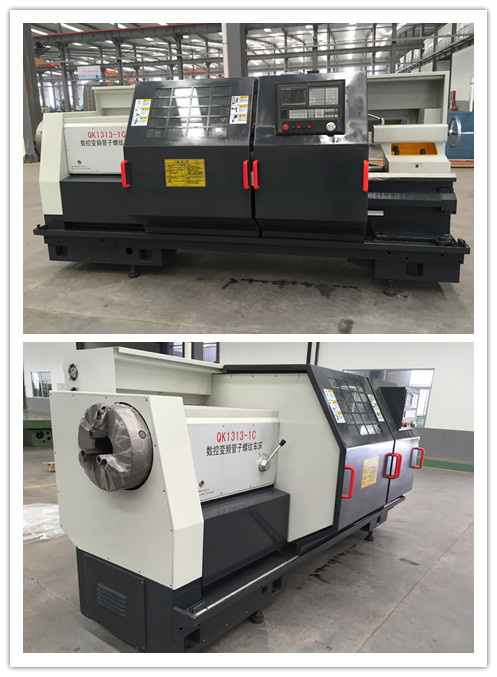

CNC Pipe Threading Lathe (CNC Oil Country lathe QK1327 QK1313)

Name: CNC Pipe Threading Lathe (CNC Oil Country lathe QK1327 QK1313)
Brand: china-manufacturer-directory.com
SKU: 704360882
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

FANUC 0i TD controller, Manual 4-jaw tube compound chuck, 4-station vertical electric toolpost, Electric tailstock, Centralized automatic lubrication system, Cooling system, Working light, Electrical cabinet with air conditioning, RS232 interface, Movable electronic handwheel (MPG), Tri-color alarming light, General tools, Operation manuals (English edition).

Model	QK1313	QK1319	QK1322	QK1327	QK1332	QK1343	QK1350
Bed width	550mm	550mm	550mm	750mm	750mm	750mm	755mm
Turning diameter over bed (max.)	630 mm	630 mm	630mm	1000mm	1000mm	1000mm	1200mm
Max. diameter of pipe (manual chuck)	126 mm	190 mm	219mm	270mm	320mm	426mm	520mm
Turning length (Max.)	1500 mm	1500 mm	1500mm	1500mm	1500mm	1500mm	1700mm
Spindle bore	130 mm	200 mm	225mm	280mm	330mm	440mm	520mm
Spindle speed steps	18 steps	12 steps	12 steps	12 steps	12 steps	9 steps	9steps
Range of spindle speed	12~640 r/min	24~300 r/min	24~300 r/min	16~380 r/min	16~380 r/min	5~200 r/min	6~205 r/min
Tool post	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position	Vertical 4-position
Indexing time(s)	3	3	3	2.4	2.4	2.4	2.4
Main motor (kw)	7.5kw	7.5kw	7.5kw	22kw	22kw	22kw	37kw

Prod Model:	QK1313 QK1319 QK1322 QK1327 QK1332 QK1343 QK1350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	130-520mm
Swing Over Bed:	630 1000mm
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
