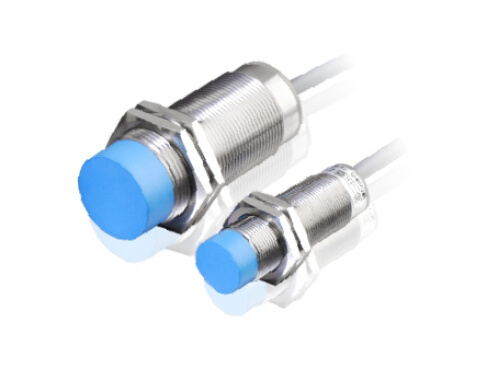

Elevator industry inductive sensor ---- Rotation speed monitor ----LR18X
Feature
------------------------------------------------------------------------
Be able to detect rotation speed at range 0~3000u/min.
Build-in adjustable process electronic device.
Be able to detect abnormal status (i. e. Over speed or low speed).
Non-contact position detection, no abrasion, more reliable.
Apparent LED design, easy to judge operation status.
Cable and connector connection optional.
Used for position limiting and counting in elevator industry.
Advantage of Lanbao:
------------------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
------------------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Elevator Industry Inductive Sensor ----Rotation speed monitor ----LR18X , LR30X |
|
Product model |
LR18X |
LR30X |
|
Specification(mm) |
flush, non-flush |
flush, non-flush |
|
Sensing distance |
5mm,8mm |
10mm,15mm |
|
Output |
DC 3wires |
NPN NC;
PNP NC. |
NPN NC;
PNP NC. |
|
|
DC 4wires |
/ |
/ |
|
|
DC 2wires |
/ |
/ |
|
|
AC 2wires |
NC |
NC |
|
|
AC/DC 2wires |
/ |
/ |
|
Supply voltage |
10-30VDC, 20-250VAC |
10-30VDC, 20-250VAC |
|
Frequency |
DC: 3-3000times/min
AC: 3-1200times/min |
DC: 3-3000times/min
AC: 3-1200times/min |
|
Ambient temp. |
-25ºC~+70ºC |
-25ºC~+70ºC |
|
Protection degree |
IP67 |
IP67 |
|
Housing material |
Nickel-copper alloy |
Nickel-copper alloy |
|
Connection |
Cable |
Cable |
|
Certification |
CE, UL, CCC |
CE, UL, CCC |
|
