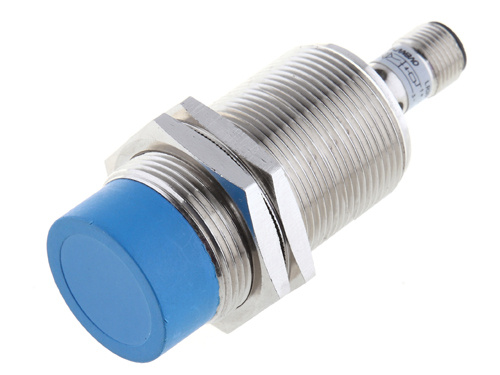

Lanbao Extended sensing distance type inductive proximity sensor.
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Details:
----------------------------------------------------------------
Low-voltage power supply,
Micro-current design
Apply to alert occasions of inflammable, explosive
Small volume for narowwness space
Non-contact detecting way effectively avoids abrasion, safe and reliable
Housing: Stainless steel, Alloy, Plactis optical.
Advantage:
----------------------------------------------------------------
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.
|
Model |
LR30X |
|
Specification(mm) |
M30*1*43, M30*1*46, M30*1*53, M30*1*56 |
|
Mounting |
Flushed/ Non-Flushed |
|
Sensing distance |
15mm, 22mm, 40mm |
|
Supply voltage |
10-30VDC 2/3/4 wires |
|
Output |
PNP/ NPN/ DC, NC/NO |
|
Load current |
<200mA |
|
Voltage drop |
<2.5V |
|
Current consumption |
<15mA |
|
Return difference |
1-20% |
|
Repeated accuracy |
<3% |
|
Frequency |
50-300Hz |
|
Output display |
Yellow LED light |
|
Polarity protection |
Yes |
|
Insulation pressure resistance |
1000V/AC,50/60Hz,60s |
|
Short-circuit protection |
Yes |
|
Ambient temperature |
-25~+70C |
|
Ambient humidity |
35~95% |
|
Protection degree |
IP67 |
|
Housing material |
Nickel-copper Alloy |
|
Connection |
2m PVC Cable/ M12 Connector |
|
Certification |
CE |
|
