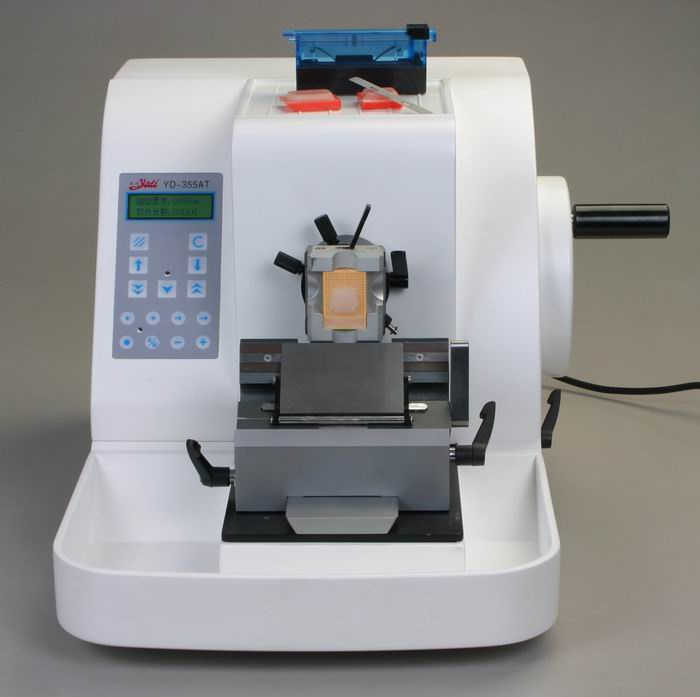

Full Automaticity Microtome YD-355AT, from China professional Microtome manufacturer Jinhua YIDI Medical Appliance Co., Ltd
1. General description:
YD-355AT Automatic Microtome is a full automatic microtome which is made in China. It has two models for advance system of specimen clamp: Automatic model and manual model. If automatic model, the user can release his hands to do other things. It simplifies the technical difficult of the section, and improve the work effect.
2. Main technical parameters
1)Two model for section: Manual and automatic, the user can switch arbitrarily.
2)Four speed of section: 50mm/s\100mm/s\140mm/s\180mm/s
3)Switch arbitrarily between section and trimming.
4)Alarm system for horizontal and vertical stock limit, protection system for motor surcharge.
5)Slice thickness range: 0.5-100um
Setting value: From 0.5-2 um in 0.5um increment.
From 2-10 um in 1um increment
From 10-20 um in 2 um increment
From 20-100 um in 5 um increment
6)Trimming section range: 0.5-999um.
7)Horizontal specimen stroke: 20mm, Vertical specimen stroke: 60mm
8)Slip precision: ± 10%
9)Speed of fast-forward and back-forward: 1 mm /s
10)Precise orientation of the specimen clamp.
11)Orientation of the specimen head: Axes X and Y 8° , axis Z 360° .
12)All kinds of specimen clamp can be Exchanged arbitrarily
13)The large waste tray can be disassembled easily.
14)Voltage and power: AC220V/50Hz\or 110V/60Hz.
15)Dimension: 500mm ( L) X 320mm (W) X 500 mm ( H)
16) Net weight: 35 kg
Jinhua YIDI Medical Appliance Co., Ltd is a professional Manufacturer engaged in research &development, production and sale of Histology equipment and consumables. The products covering Microtome, Tissue Processor, Embedding Center, Cryostst, Tissue Floatation Processor, Tissue Barking Processor and all kinds of Histology consumables
YIDI Products have high quality, high performance and feature excellent after-sale service and are extensively used for scientific research and in the fields of biomedicine, education, epidemic prevention, farming and veterinary science.
We has established a complete Quality Assurance System to continuously fulfill the requirements according to ISO9001 and CE. Products have been sold to 34 provinces in China as well as many Laboratories, Hospitals, Universities, in Brazil, Italia, USA, Iraq, Nigeria, Romania and Southeast Asia etc., and receive good comments due to good performance and reliable quality.
We are willing to work with our respectful customers and distributors all over the world and fulfill our common targets as to improve the better life for people in need.
