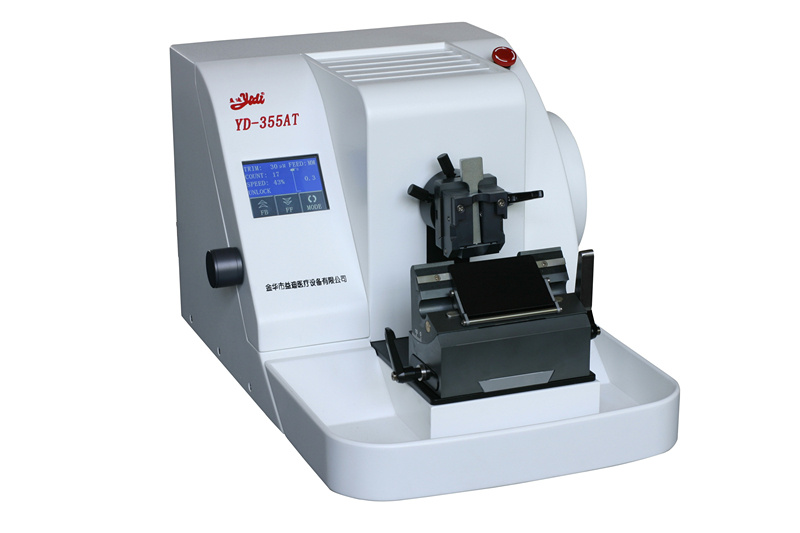

The Fully Automatic Microtome YD-355AT provides utmost reliability, user benefit and outstanding operator comfort. Great basic stability and precision, make this microtome a real multi-purpose instrument that meets the requirements both in paraffin and hard sectioning techniques of the biological, medical and industrial lab
Product specifications:
Fully automatic or manual model, Its two-in-one design concept, which allows motorized and manual sectioning, provides reproducible high-quality sections.
Adopted Germany motor drive ensure slice more precisely, more reliable and quiet.
The touch screen shows slice and trimming thickness, section counter, mode and speed, stroke distance
Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer.
Model of Blade Carrier for High or Lower Disposable Blades
The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible
The waste tray can be disassembled easily
Safety alarm system, overload protection function, sleep mode protection
Universal cassette clamp and standard specimen clamp
Optional Blade carrier which can use Steel Knife or Blade Holder
Emergency stop
Foot Switch to control the Section
Technical Data
Section thickness range: 0.5- 100μ M
Setting values: From 0.5-2μ M in 0.5μ M increments
Form 2-10μ M in 1μ M -increments
Form 10-20μ M in 2μ M -increments
Form 20-50μ M in 5μ M -increments
Form 50-100μ M in 10μ M increments
Trimming section thickness range: 0-999μ M
Setting value: From 0-999μ M in 1μ M -increments
Horizontal specimen stroke: 28 mm
Vertical specimen stroke: 60mm
Specimen retraction: 12um
Precise orientation of specimen clamp
Sample orientation: 8° Along the X-Y-axis, rotable 360°
Speed of fast forward and Fast backward: 1mm/s
Precision error: ± 5%
Maximum section size: 50 × 45mm
Poleless Speed Regulation function, cutting speed range: 0.5mm/s-500mm/s
Voltage and power: 220v / 50Hz or 110 v /60Hz
Net weight: 35kg
Dimensions incl. Tray (L/T/H): 500mm(L)X320mm(W)X500mm(H)
Jinhua YIDI Medical Appliance Co., Ltd is a professional Manufacturer engaged in research &development, production and sale of Histology equipment and consumables. The products covering Microtome, Tissue Processor, Embedding Center, Cryostst, Tissue Floatation Processor, Tissue Barking Processor and all kinds of Histology consumables
YIDI Products have high quality, high performance and feature excellent after-sale service and are extensively used for scientific research and in the fields of biomedicine, education, epidemic prevention, farming and veterinary science.
We has established a complete Quality Assurance System to continuously fulfill the requirements according to ISO9001 and CE. Products have been sold to 34 provinces in China as well as many Laboratories, Hospitals, Universities, in Brazil, Italia, USA, Iraq, Nigeria, Romania and Southeast Asia etc., and receive good comments due to good performance and reliable quality.
We are willing to work with our respectful customers and distributors all over the world and fulfill our common targets as to improve the better life for people in need.
