Product Specifications
Prod Model: |
WLT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
After-Sale Services: |
Available |
Export Markets: |
Global |
Production Line: |
Provide |
Crushing Style: |
Extruding and Milling |
Compressive Strength (',For Crushing): |
>300MPA |
Tongs' Features: |
Adjustable Tongs |
Finished Surface: |
Outer Surface Process |
Principle: |
Fixed Culling |
Cutter Material: |
High-Speed Steel |
Type: |
Jaw Crusher |
Crushing Degree: |
Intermediate Crusher |
Drive: |
Intermittent Drive |
Object: |
Stone |
Product Description

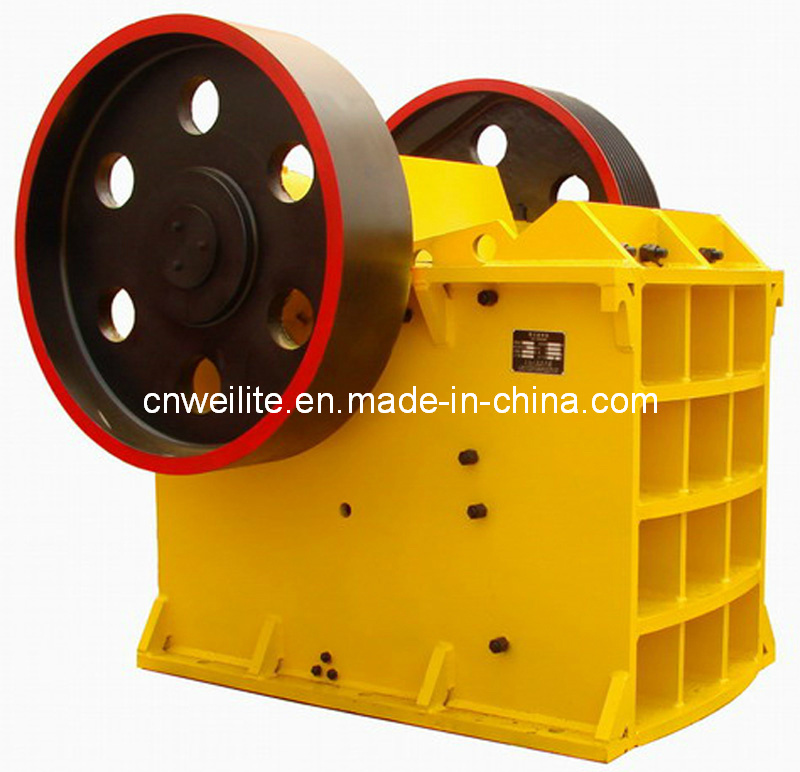

High Capacity Rock Crushing Machine
Working Principle of Rock Crushing Machine:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Advantages of Rock Crushing Machine:
Simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic Shape for the final products. The discharge opening can be adjusted. It is widely used in water and electricity, expressway, sand and stone, crushing fields.
Type |
Specificationses |
Motor power (kw) |
Overal dimensions
(l×w×h) (mm) |
Weight (kg) |
Max feed size (mm) |
Adjestment scopes (mm) |
Production capacity (m3/h) |
Roatating sepeed of mainshaft (r/min) |
PEF 150×250 |
125 |
10-40 |
1-3 |
285 |
7.5 |
922×745×933 |
700 |
PEF 200×300 |
165 |
20-70 |
2-8 |
265 |
11 |
1056×1100×1120 |
800 |
PEF 250×400 |
210 |
20-80 |
5-20 |
310 |
18.5 |
1108×1142×1392 |
3000 |
PEF 400×600 |
340 |
40-90 |
10-40 |
275 |
30 |
1700×1732×1392 |
7200 |
PEF 350×750 |
320 |
30-55 |
20-50 |
300 |
37 |
1900×1806×1808 |
8900 |
PEF 500×750 |
425 |
50-100 |
34-68 |
275 |
55 |
2050×1860×2145 |
11320 |
PEF 600×900 |
480 |
72-200 |
40-120 |
255 |
75 |
2792×2168×2250 |
17600 |
PEF 750×1060 |
630 |
80-200 |
80-160 |
250 |
90 |
4180×2560×3070 |
30530 |
PEF 900×1200 |
750 |
100-200 |
110-200 |
250 |
110 |
5200×2900×3500 |
50000 |
PEF 1200×1500 |
1020 |
150-300 |
220-400 |
180 |
160 |
4200×3300×3500 |
106000 |
PEX 150×750 |
125 |
10-40 |
5-15 |
300 |
15 |
1220×1480×1180 |
3600 |
PEX 250×1000 |
210 |
15-55 |
10-32 |
300 |
37 |
1580×1992×1380 |
7350 |
PEX 250×1200 |
210 |
15-60 |
12-38 |
300 |
37 |
1730×2192×1380 |
8700 |
PEX 300×1300 |
250 |
20-90 |
16-65 |
300 |
55 |
1930×2400×1747 |
11600 |
