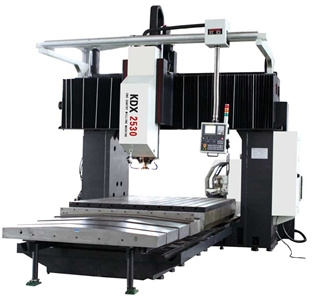

High Precision Gantry Milling CNC Machine Tools (KDX2530 - KDX2550)
| Price: |
US $ 200000-400000SET |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
KDX2530 - KDX2550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
2300*3000/4000/5000 |
| Max Table Load: |
8t/12t/15t |
| Spindle Bore Taper: |
Bt50 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
PRODUCT FEATUERS:
Integrated machine bed, fixed column and cross rail to form a stable construction and reliable performance;
High rigidity and high precision spindle system;
Linear roller guide ways for and Y axes, slide guide way for Zaxes;
Volume type automatic centralized lubrication system;
Hydraulic balance system for weight balance;
ZF two-speed reduction radio.
| ITEMS | KDX2530 | KDX2540 | KDX2550 |
Table |
|
Tablesize | 2300× 3000mm | 2300× 4000mm | 2300× 4000m |
Dragon Gate width | 2700mm |
Max. table load | 8T | 12T | 15T |
T-slot(width× number× space) | 11× 28× 200 N-mm-mm |
Capacity range |
|
Move around the table travel(X) | 3000mm | 4000mm | 5000mm |
Move around spindle slide travel(Y) | 2500mm |
Spindle travel up and down(Z) | 1000mm |
Spindle nose to table surface | 150-1150mm |
Spindle |
|
Taper bore of spindle | BT50/Φ 190 |
Spindle speed | 4000 rpm |
Main motor power | 18.5 /22KW |
Feel |
|
X, Y, Z motor torque | 30, 22, 30Nm | 60, 30, 30Nm | 60, 30, 30Nm |
Cutting feed speed range | 10-5000mm/min |
Fast moving speed |
|
X axis | 12 m/min |
Y axis | 12 m/min |
Z axis | 12 m/min |
Repeatability(JB6086-92) | ± 0.003mm |
X axis | ≤ 0.025mm |
Y axis | ≤ 0.025mm |
Z axis | ≤ 0.025mm |
Other |
|
Net weight | 45T | 50T | 55T |
CNC System | FANUC |
Zhejiang Kaida Machine Tool Co., Ltd
Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.
Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.
We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.
We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.
As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.
We are fully confident to meet any challenges or opportunities that present to us.
