Shanghai Lanbao Inductive Sensor
----------------------------------------------------------------
High reliability, High sensitivity, High linearity, Pinpoint accuracy
Lanbao provides all kinds of sensors: Inductive proximity sensor, Capacitance proximity sensor, Photo electric sensor, Flow sensor, Pressure sensor, Tension sensor, Sensor accessories, and so on.
Lanbao Inductive proximity sensor Feature:
----------------------------------------------------------------
1. Non-contacting, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function
Lanbao Inductive proximity sensor Variety:
----------------------------------------------------------------
Standard function
Extended sensing distance
Analog output
Extended temperature
High pressure resistant
Frequency enhanced
Gear speed sensor
Full metal housing sensor
Welding- immune sensor
Rotation speed monitor
Self diagnosed
Wide voltage
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Model |

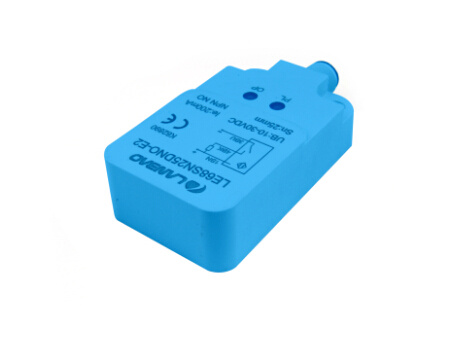

LE68SN25DL |
|
Specification(mm) |
40*20*68 |
|
Mounting |
Non Flush |
|
Sensing distance |
25mm |
|
Supply voltage |
10-30VDC |
|
Output |
DC 2 wires |
|
Load current |
<100mA |
|
Voltage drop |
<6V |
|
Current consumption |
<1mA |
|
Return difference |
1-20% |
|
Repeated accuracy |
<3% |
|
Frequency |
500Hz |
|
Output display |
Yellow LED light |
|
Polarity protection |
Yes |
|
Insulation pressure resistance |
1000 V/AC,50/60Hz,60s |
|
Short-circuit protection |
/ |
|
Ambient temperature |
-25~+70C |
|
Ambient humidity |
35~95% |
|
Protection degree |
IP67 |
|
Housing material |
PBT |
|
Connection |
2m PVC Cable/ M12 Connector |
|
Certification |
CE |
|
Shanghai Lanbao Sensing Technology Co., Ltd. |
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
