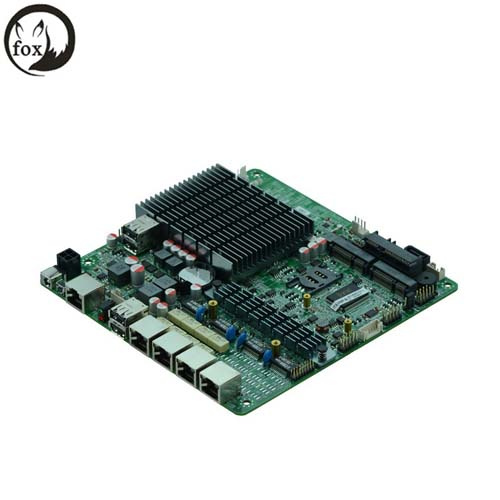

Intel J1900 Server Motherboard, Nano Itx Quad Core Motherboard

Name: Intel J1900 Server Motherboard, Nano Itx Quad Core Motherboard
Brand: china-manufacturer-directory.com
SKU: 767412355
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Intel J1900 server motherboard ,nano itx quad core motherboard

Packaging & Delivery

Packaging Details:	Packaging Details: Netural Carton Box
Delivery Detail:	3-5days after paid

High Performance Firewall Motherboard -----

Intel J1900 server motherboard ,nano itx quad core motherboard

Model No.	ITX-M9F_B VER:1.1
Processor	Integrates Intel® Celeron Quad Core J1900 22nm processor 2.0GHz, compatible with Intel® Bay Trail -I/M/D series CPU
Chipset	Intel® Bay trail SOC platform, CPU integrates chipset
Memory	1* DDR3 SODIMM,supports 1333/1066 MHz , Max. 8GB
Graphics	Intel® HD Graphics
Expansion Slot	1* mSATA slot
	1* Mini-PCIE slot (supports WIFI / 3G module)
Ethernet	4*Intel 82583V 10/100/1000 Mbps RJ45 interface, supports Wake-On-LAN
	Supports 1 pair of BYPASS
Storage	1* 2.5' HDD Space,supports HDD inboard 1* SATA (alternative to 2.5' hard disk )
	1* mSATA slot (supports SSD /USB WIFI)
Rear I /O	1* 12V~19V DC JACK input
	1* Power switch
	1* COM CISCO standard interface
	1* LED1(POWER LED/HDD LED)
	2* USB(1USB2.0 ,1USB3.0)
	4* RJ-45 connector
Internal I/O Connector	1* VGA (1*12pin)
	1* LAN LED(2*8pin)
	1* COM
	2* USB 2.0
	1* FP1 header(2*5pin Front panel buttons and indicator connector)
	1* ATX 4PIN power connector (for 12V~19V input/output) 1* aviation connector 2PIN(for 12V~19V input/output)
	1* PS/2 KB & MS Connector
	1* SATA PWR Connector
	1* SIM slot
Fan Connector	1* CPU Fan , 1* system Fan connector
GPIO	4-bit input/output
BIOS	AMI 32Mb Flash ROM
Watchdog Timer	System reset ,Programmable L256 , 0 ~ 255 sec/min
Power Type	Single voltage 12V~19V DC Input
Operating Temp.	-10°C~ 60°C
No-Operating Temp.	-20°C~ 70°C
Humidity	5-95% (relative humidity; non-condensing)
Dimension	170mm x 170mm

Prod Model:	ITX-M9F_B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
VPN Support:	Yes
Integrated Graphics:	Integrated Graphics
Main Chipset:	Intel
Maximum Memory Capacity:	8G
Structure:	Mini-ITX
Memory:	DDR3
SATA Interface:	SATA2.0
Printed Circuit Board:	Six Layer
Main Board Structure:	Integrated
Audio Effects:	Not HiFi
